The G34 Series is our line of square trussing. This series is available in straight and arc segments. We also carry G34 corners, junctions, and t-connectors. All of our trussing is compatible with most name brand truss products and are manufactured by TUV certified welders.

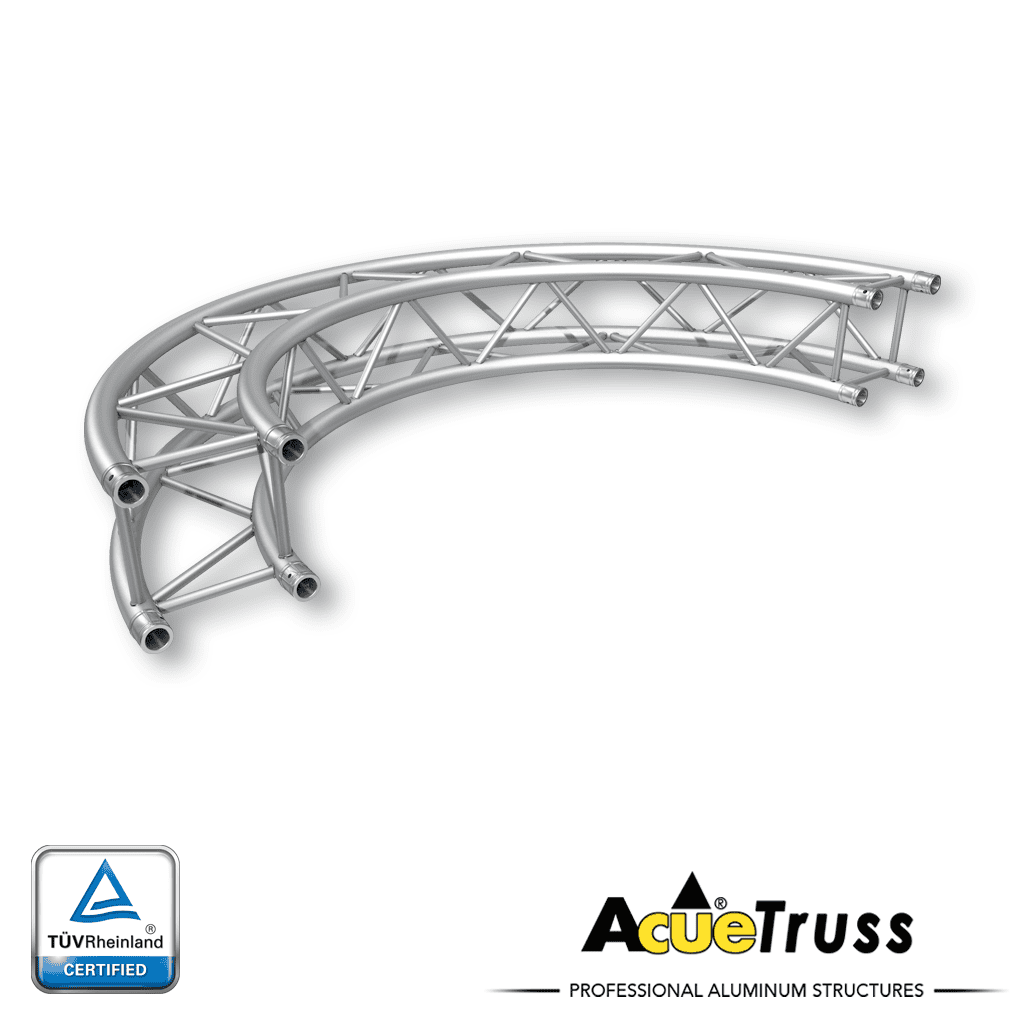

• The 1.5m Arc Trusses are sold as a full set of 2 segments.

---



Model	G34 A-1.5-180
Aluminum Alloy	6082-T6
Mounting Hardware	Included
Diameter	4.92ft (1.5m) x 11.42in (290mm)
Degree	180˚x2
Weight	90lb
Full Set	2pcs
Tube Outer Diameter	1.97in (50mm)
Tube Wall	0.12in (3mm)
Brace Diameter	0.80in (20mm)
Brace Wall	0.08in (2mm)
Certification	TUV
