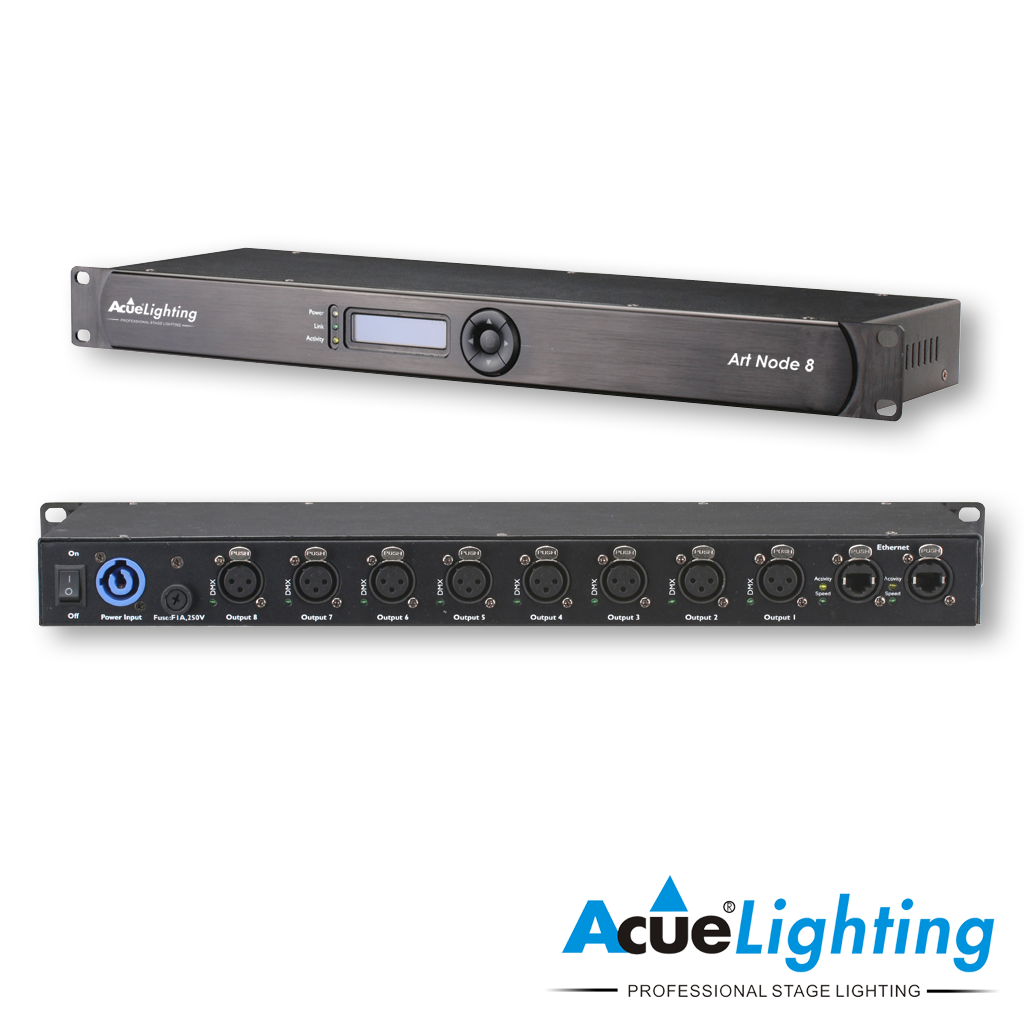

The Acue Art Node 8 is an 8 port, 8 universe (4096 DMX channel) Artnet node. Each port can used as an input or output, and supports DMX over HTP/LTP. The front of the unit houses a LCD screen, four-way directional "hat switch" buttons around a central "OK/Enter" button for menu navigation and system status LED indicators. This Art Node 8 can also be used as a DMX splitter.
| Universes/DMX |
8 Universes/4096 DMX Channels |
| Ports |
8 DMX Ports (3 Pin, Input/Output, HTP/LTP), 2 RJ45 (10M/100M/1000Mbps, Auto MDI/MDIX, supports DHCP & Static IP - IP can be set manually) |
| DMX Output |
DMX-512 protocol control |
| Protocol |
Artnet, sACN, KlingNet (supports multiple color modes in KlingNet - RGB, RGBW, RGBA, RGBD, RGBAW) |
| Firmware |
Can be updated online |
| Size |
1U (19in standard rack installation) |
