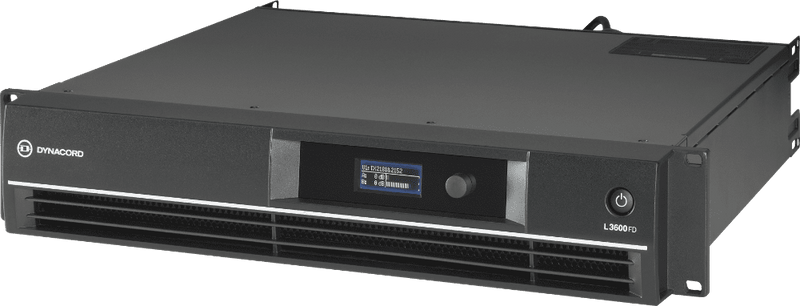

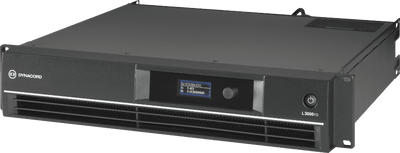

Dynacord L3600FD-US

SKU: L3600FDUS
$1,279.00 inc. VAT


L3600FD

DSP 2 x 1800 w power amplifier for live performance applications

  • Professional DSP amplifier for live and mobile application
  • Fully integrated professional speaker processing with FIR drive technology
  • Market-leading acoustic performance and rock solid reliability
  • Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0

Dynacord L Series are professional dual channel audio amplifiers for live and mobile applications. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of mobile applications. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.



Load Impedance 2 ? 2.7 ? 4 ? 8 ?
Maximum Output Power, Single Channel 3200 W 2700 W 1800 W 950 W
Maximum Output Power, Dual Channel 3000 W 2500 W 1700 W 900 W
Maximum Output Power, Bridged - - 6000 W 3400 W

Maximum RMS Voltage Swing THD = 1%, 1 kHz 90.6 V
Voltage Gain Ref.1 kHz 32.0 dB
THD at 1200 W/4 ?MBW = 80 kHz, 1kHz < 0.05%
IMD-SMPTE, 60 Hz, 7 kHz < 0.1%
DIM30, 3.15 kHz, 15 kHz < 0.05%
Maximum Input Level +21 dBu
Crosstalk ref. 1 kHz, at 100W/4 ? < -80 dB
Frequency Response, ref. 1 kHz 10 Hz to 21 kHz (±1 dB)
Input Impedance, Active Balanced 20 k ?
Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 ? > 109 dB
Output Noise, A-weighted < -68 dBu
Output Stage Topology Class H
Power Requirements 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption ? Maximum Output Power @ 4 ? 850 W
Mains Fuse 240 V/230 V: T15AH; 120 V/100 V: T30AH
Protection Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay
Cooling Front-to-rear, 3-stage-fans
Ambient Temperature Limits +5°C to +40°C (40°F to +105°F)
Safety Class I
Color Black
Dimensions (W x H x D), mm 483 x 88 x 462.4
Weight 18.2 kg (40.1 lb)
Signal Processing FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance
Remote Control SONICUE sound system software **
Accessories RMK15 (rear rack mount kit)

Test signal for max. output power according IHF-A-202 (Dynamic-Headroom, burst 1 kHz/20 ms on/480 ms off/low level -20 dBu).

** requires firmware 2.0.
