Electro-Voice

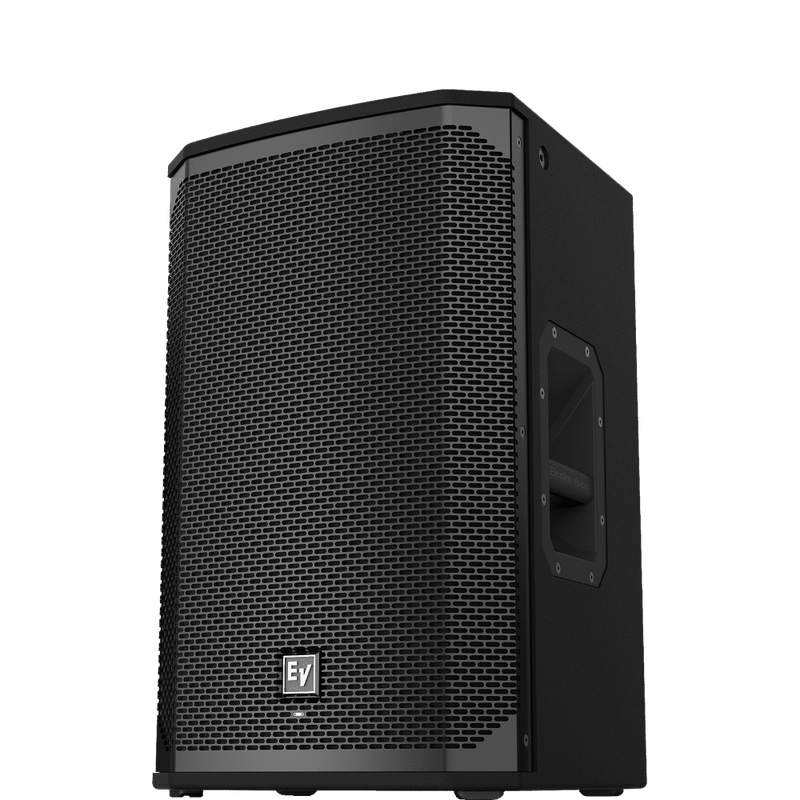

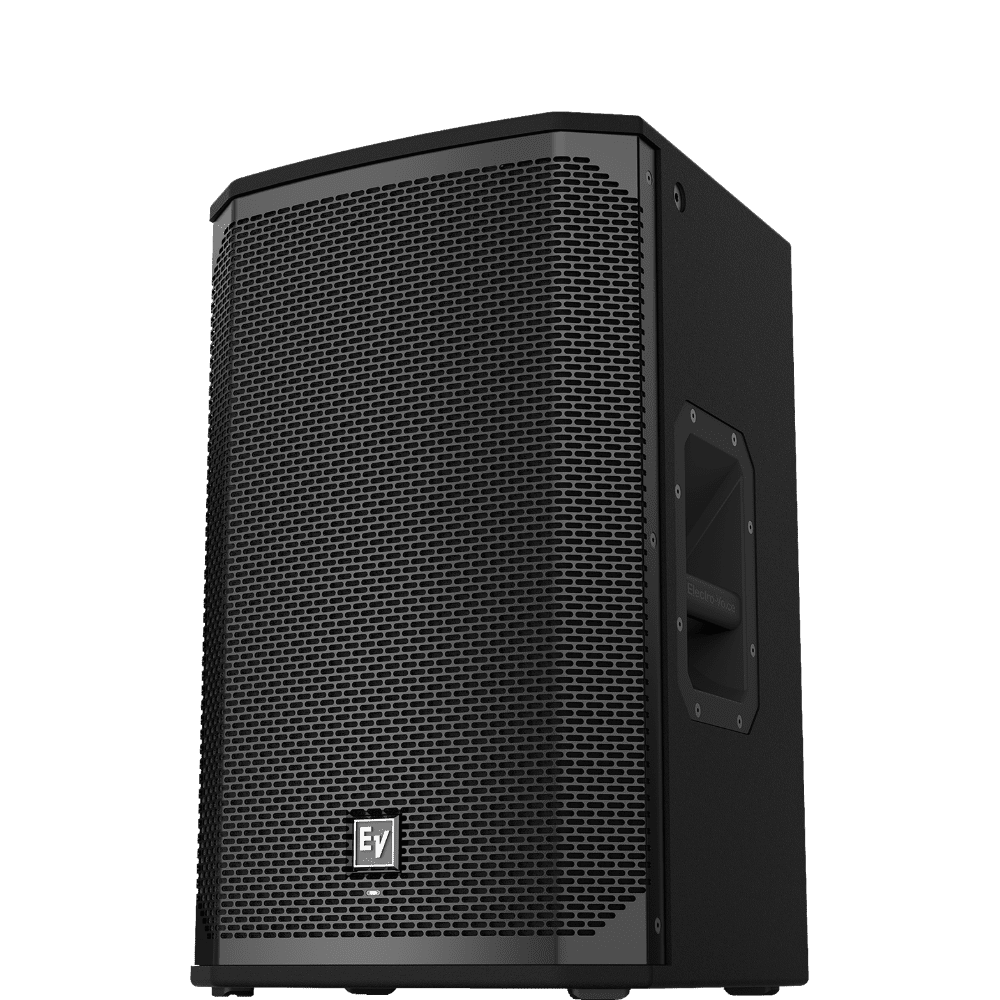

Electro-Voice EKX-12P Powered 12" 2-Way Speaker

SKU: EKX12P
$999.00 inc. VAT
-31% $1,439.00 $999.00 inc. VAT


Description
The EKX series is the newest member of the Electro Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications. The EKX series features eight models (four powered and four passive), including 12" and 15" two-way models and 15" and 18" subwoofers. EKX is positioned above the ZLX and ELX series and below the ETX series.
Features
  • QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
  • High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV.
  • Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
  • EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
  • Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
Specifications
Maximum SPL 132 dB dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
Power Consumption 1.8 A Current rating is 1/8 power
Power Rating 1500 W
Frequency Response (-3 dB) 60 Hz - 18 kHz Hz Full space measurement using the music DSP preset.
Frequency Response (-10 dB) 50 Hz - 20 kHz Hz Full space measurement using the music DSP preset.
Coverage (Nominal -6 dB) H 90 °
Coverage (Nominal -6 dB) V 60 °
LF Transducer EVS-12M 300 mm (12 in)
HF Transducer DH-1M 1-inch titanium compression driver
Crossover Frequency 1.7 k Hz
Connector Type (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
Enclosure Material 15 mm, plywood with EVCoat
Grill 18 AWG steel with powdercoat
Suspension (8) M10 threaded mounting points
Height 23.9" (607 mm)
Width 14.76" (375 mm)
Depth 14.02" (356 mm)
Weight Net 18.8 kg (41.45 lbs)
Shipping Weight 22.9 kg (50.49 lbs)
