Home » Electro-Voice EKX-15P Powered 15" 2-Way Speaker
Electro-Voice

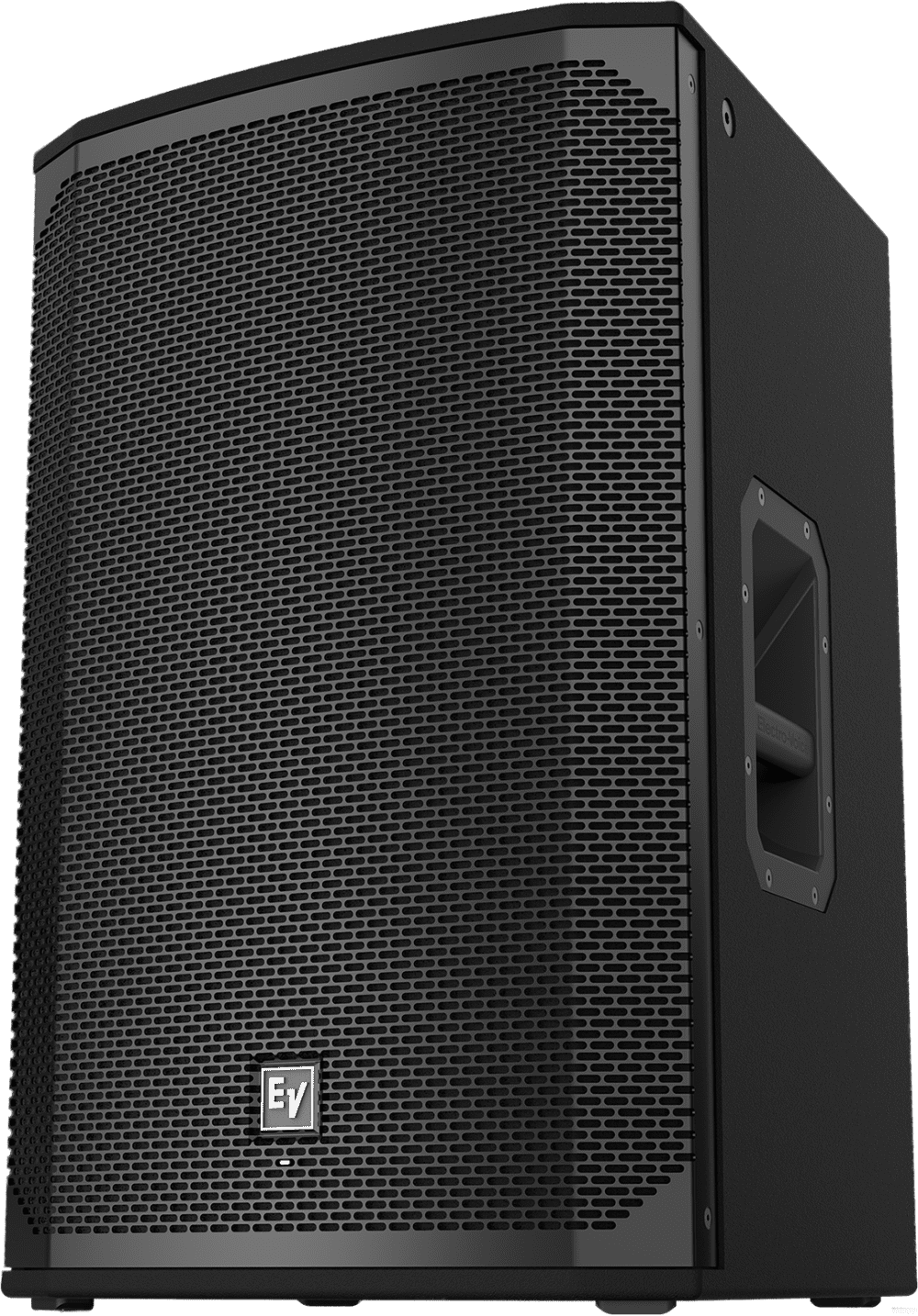

Electro-Voice EKX-15P Powered 15" 2-Way Speaker

SKU: EKX15P
$1,099.00 inc. VAT
-32% $1,619.00 $1,099.00 inc. VAT


Description
The EKX series is the newest member of the Electro Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications. The EKX series features eight models (four powered and four passive), including 12" and 15" two-way models and 15" and 18" subwoofers. EKX is positioned above the ZLX and ELX series and below the ETX series.
Features
  • QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
  • High-efficiency 1500 W Class D power amplifier delivers up to 134 dB peak SPL on the EKX-15P via high-sensitivity transducers designed and engineered by EV.
  • Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
  • EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
  • Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
Specifications
Maximum SPL 134 dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output
Power Consumption 1.8 A Current rating is 1/8 power
Power Rating 1500 W
Frequency Response (-3 dB) 55 Hz - 18 kHz Hz Full space measurement using the music DSP preset
Frequency Response (-10 dB) 48 Hz - 20 kHz Hz Full space measurement using the music DSP preset
Coverage (Nominal -6 dB) H 90 °
Coverage (Nominal -6 dB) V 60 °
LF Transducer EVS-15M 381 mm (15 in)
HF Transducer DH-1M 1-inch titanium compression driver
Crossover Frequency 1.7 k Hz
Connector Type (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
Enclosure Material 15 mm, plywood with EVCoat
Grill 18 AWG steel with powdercoat
Suspension (8) M10 threaded mounting points
Height 26.97" (685 mm)
Width 17.01" (432 mm)
Depth 16.89" (429 mm)
Weight Net 24.4 kg (53.79 lbs)
Shipping Weight 29.5 kg (65.04 lbs)
