Electro-Voice

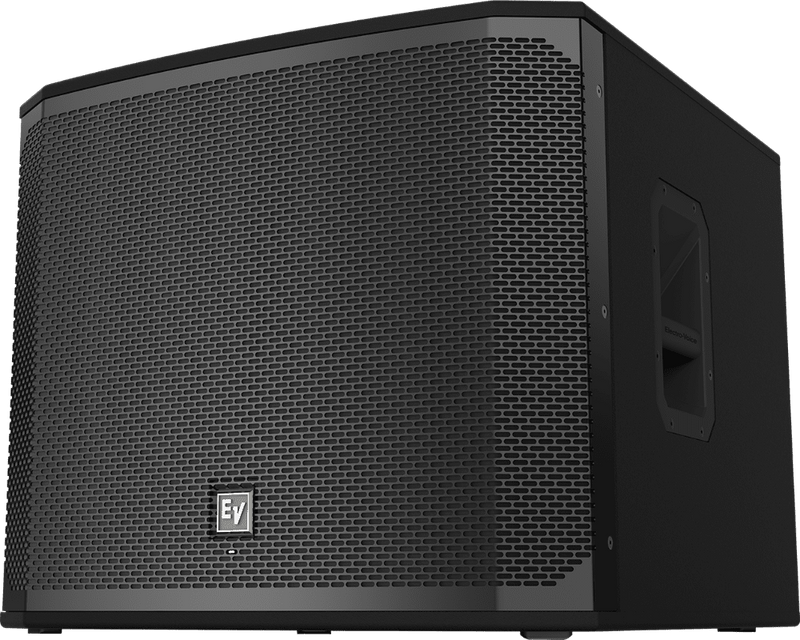

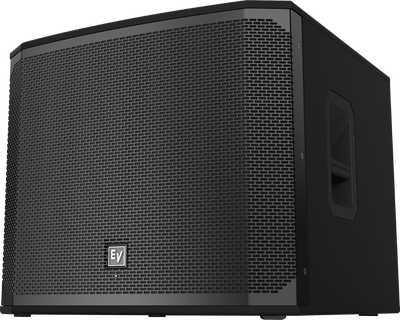

Electro-Voice EKX-18S Passive 18" Subwoofer

SKU: EKX18S
$1,179.00 inc. VAT
-6% $1,259.00 $1,179.00 inc. VAT


EKX-18S

18" Passive Subwoofer

  • 1600 W (peak), 134 dB peak SPL on the EKX-18S utilizing highsensitivity transducers designed and engineered by EV.
  • Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
  • Large slot ports for low distortion and excellent bass extension.
  • Metal grille reinforcement bar (two bars on the EKX-18S).
  • M20 threaded pole mount plate.

Frequency Range (-10 dB) 35 Hz - 300kHz (Half Space Measurement)
Weight Net 70.11lbs (31.8kg)
Depth 24.09" (612mm)


Width 23.86" (606mm)
Height 20.47" (520mm)
Axial Sensitivity (SPL, 1 W @ 1 m) 96dB
Connector Type Dual NL4
Enclosure Material 15 mm, plywood with EVCoat
Family EKX
Frequency Response (-3 dB) 50 Hz - 100Hz (Half Space Measurement)
Grille 18 AWG steel with powdercoat
LF Transducer EVS-18C 457 mm (18 in)
Max. SPL/1m (calc) 134dB
Maximum SPL 134dB
Minimum Impedance 7.0?
Nominal Impedance 8?
Passive Power Handling 1600W peak
Power Handling (Continuous / Peak) 400 W/1600W
Power Rating 1600W
Powered or Passive Passive
Recommended High-Pass Frequency 30Hz
Shipping Weight 88.41lbs (40.1kg)
Speaker Type Subwoofer
Woofer Size 18inch
