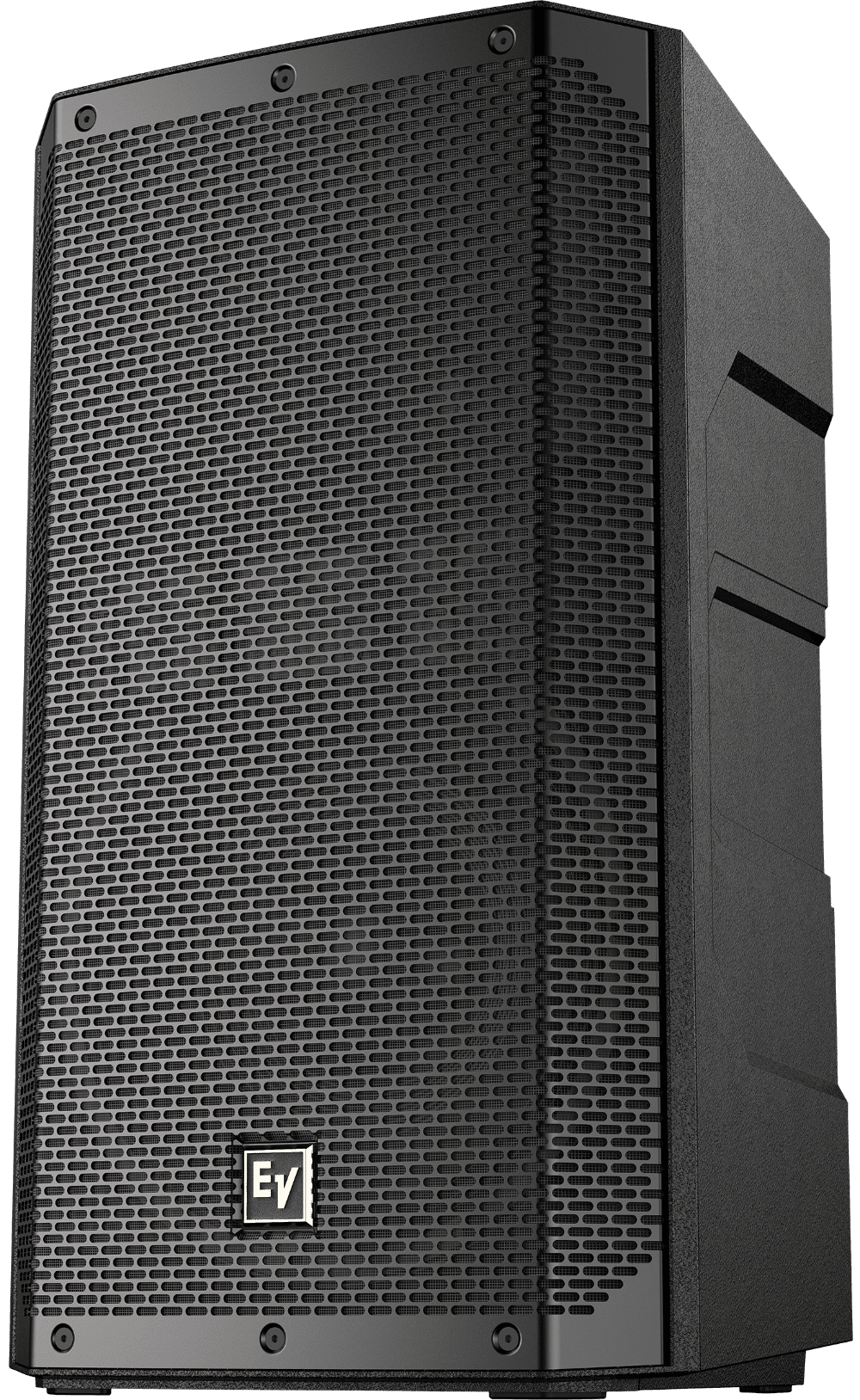

Electro-Voice ELX200-12 12" 2-Way passive speaker

SKU: ELX20012
Regular price $849.00 inc. VAT


ELX200-12

12" Passive Loudspeaker

  • 1200 W (peak), 128 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
  • 1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-frequency response.
  • High-output EVS-12M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
  • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
  • Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.

The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.

Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.

EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.


Weight Net 33.51lbs (15.2kg)
Depth 13.54" (344mm)
Width 14.29" (363mm)



Height 24.76" (629mm)
Available Color Black or White
Axial Sensitivity (SPL, 1 W @ 1 m) 93dB
Connector Type Dual NL4
Coverage (Nominal -6 dB) H 90°
Coverage (Nominal -6 dB) V 60°
Crossover Frequency 1.7 kHz
Enclosure Material Polypropylene composite
Family ELX200
Frequency Range (-10 dB) 51 Hz - 20 kHz
Frequency Response (-3 dB) 77 Hz - 17 kHz
Grille 18 AWG steel with powdercoat
HF Transducer DH-1C 1-inch titanium compression driver
LF Transducer EVS-12M 300 (12 in)
Max. SPL/1m (calc) 128dB
Minimum Impedance 7.5?
Nominal Impedance 8?
Power Handling (Continuous / Peak) 300W/1200W
Power Rating 1200W
Recommended High-Pass Frequency 50 Hz
Shipping Weight 37.7lbs (17.1kg)
Speaker Type Full-Range
Suspension (3) M10 suspension points
Woofer Size 12inch
