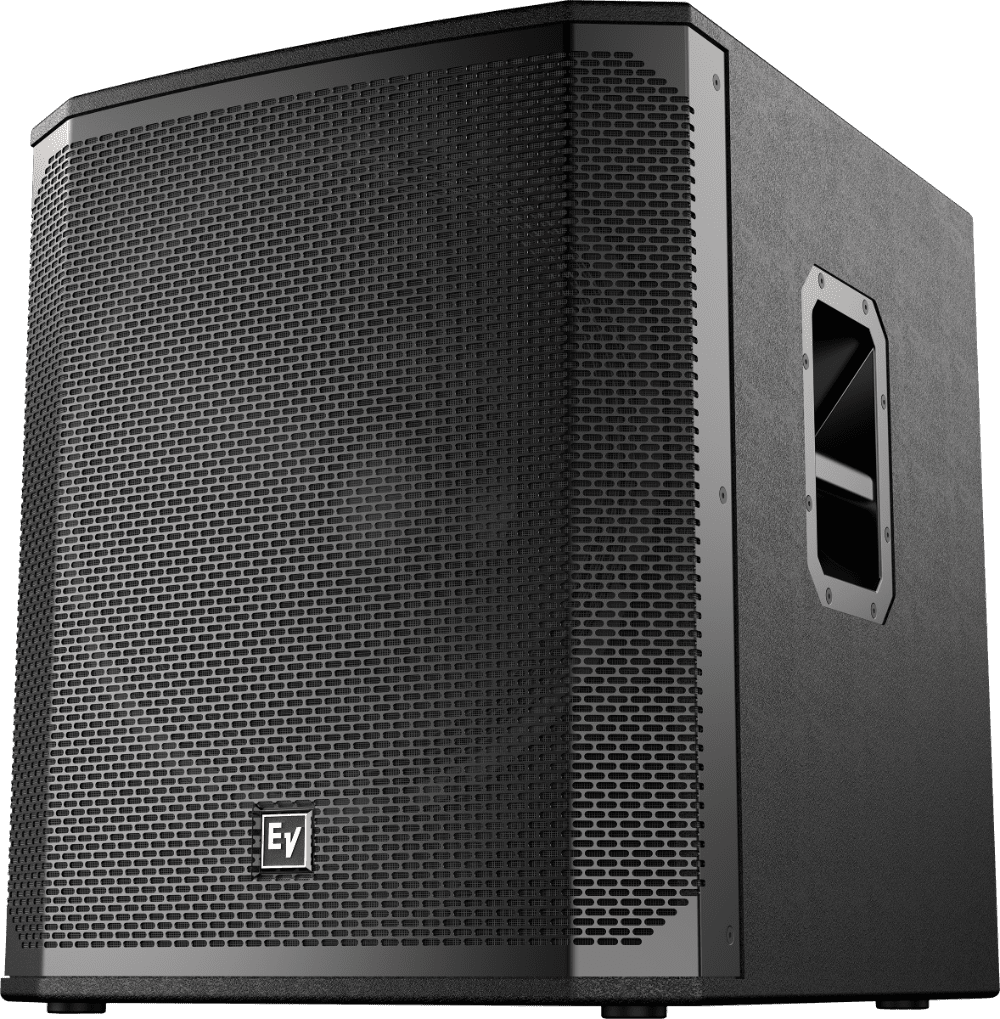

Electro-Voice ELX200-18S 18" passive subwoofer

SKU: ELX20018S
Regular price $979.00 inc. VAT


ELX200-18S

18" Passive Subwoofer

  • 1600 W (peak), 133 dB peak SPL utilizing high sensitivity transducer designed and engineered by EV for maximum punch.
  • High-output EVS-18L woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
  • System reliability verified with over 500 hours of abuse testing and endurance testing.
  • Ideal for portable and installed applications.
  • Lightweight, compact 15 mm wood enclosure with internal bracing with durable polyurea top-coat finish.
  • Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.

The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.

Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The subwoofers pack powerful low-frequency output into a surprisingly compact footprint, and feature tuned 15 mm thick wood enclosures with a premium top-coat finish. The proprietary features that have made the other members of the EV portable speaker family a go-to for best-in-class performance are also present.

EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.


Weight Net 58.64lbs (26.6kg)
Depth 22.6" (574mm)
Width 19.96" (507mm)



Height 23.62" (600mm)
Available Color Black or White
Axial Sensitivity (SPL, 1 W @ 1 m) 94dB
Connector Type Dual NL4
Enclosure Material 15 mm plywood with durable polyurea top-coat finish
Family ELX200
Frequency Range (-10 dB) 28 Hz - 300 Hz
Frequency Response (-3 dB) 45 Hz - 200Hz
Grille 18 AWG steel with powdercoat
HF Transducer
LF Transducer EVS-18L 457 mm (18 in)
Max. SPL/1m (calc) 133 HzdB
Minimum Impedance 7.2 ??
Nominal Impedance 8?
Power Handling (Continuous / Peak) 400W/1600W
Power Rating 1600W
Recommended High-Pass Frequency 35 HzHz
Shipping Weight 67.24lbs (30.5kg)
Speaker Type Subwoofer
Suspension
Woofer Size 18inch
