Home » Electro-Voice ETX-12P 2-WAY POWERED LOUDSPEAKER, BLK, US
Electro-Voice

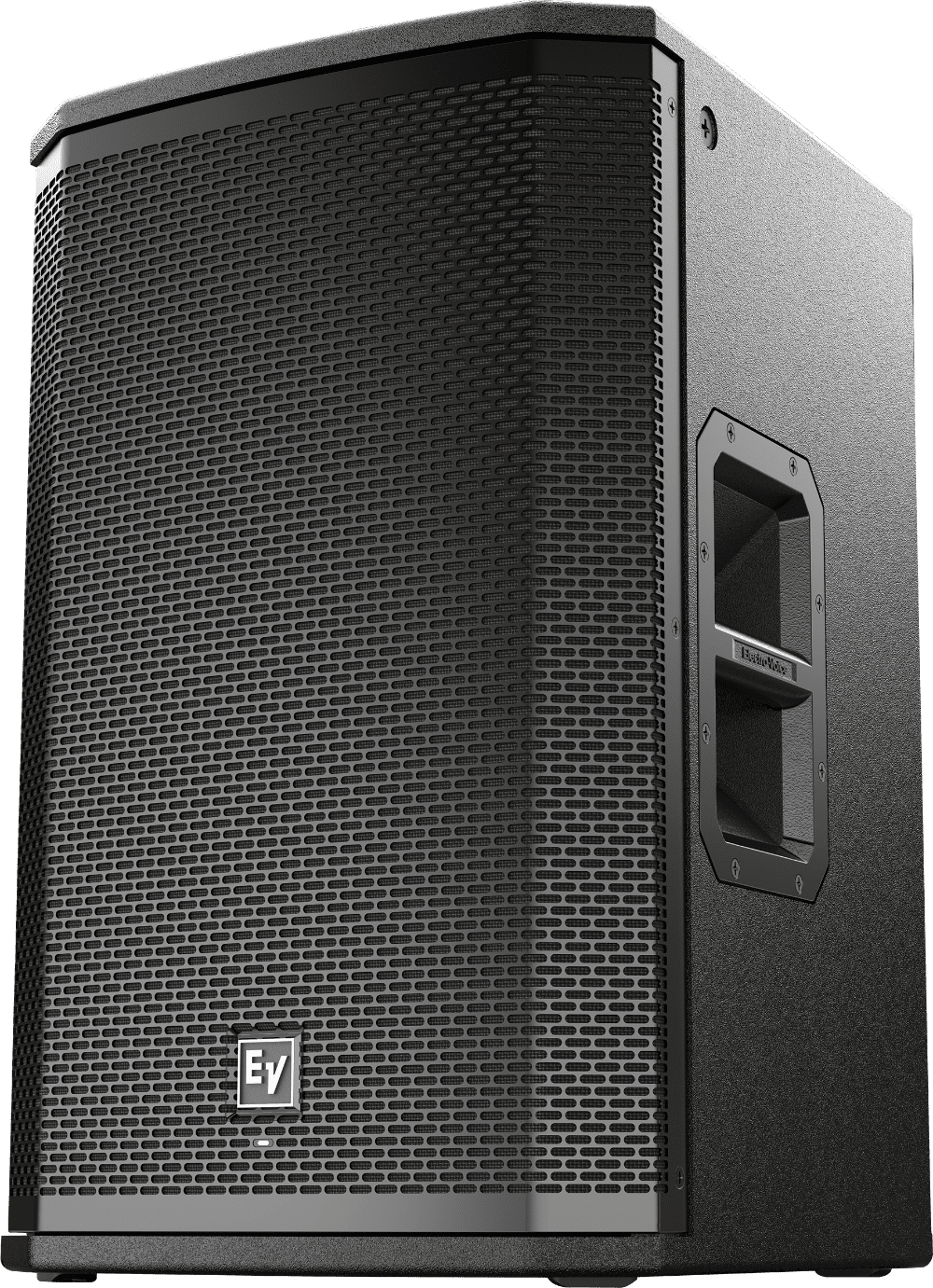

Electro-Voice ETX-12P 2-WAY POWERED LOUDSPEAKER, BLK, US

SKU: ETX12P
$1,599.00 inc. VAT
-26% $2,158.00 $1,599.00 inc. VAT


ETX-12P

12" Powered Loudspeaker

  • 12-inch LF SMX woofer
  • 1.25-inch HF titanium compression driver
  • 2000 W Class-D power amplifier with integrated FIR-Drive DSP
  • 135 dB peak SPL

Frequency Response (-3 dB) 55 Hz - 20 kHz¹
Frequency Range (-10 dB) 43 Hz - 20 kHz¹
Maximum SPL 135 dB peak²


Coverage (H x V) 90° x 60°
Power Rating 2000 W
LF Transducer SMX2120 300 mm (12 in)
HF Transducer DH3-B 1.25-in titanium compression driver
Crossover Frequency 1600 Hz
Connectors (2) XLR/TRS combo jack and (1) XLR link output
Enclosure 18 mm, 13-ply birch plywood with EVCoat
Grille 16AWG steel with powdercoat
Suspension (8) M10 suspension points
Dimensions (H x W x D) 613 mm x 381 mm x 400 mm (24 in x 15 in x 16 in)
Net Weight 23.6 kg (52.0 lb)
Shipping Weight 26.8 kg (59.1 lb)
Power Consumption 100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A³
¹ Full space measurement using the music DSP preset.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
³ Current rating is 1/8 power.
