Home » Electro-Voice EVID3.2 (sold only in pairs)
Electro-Voice

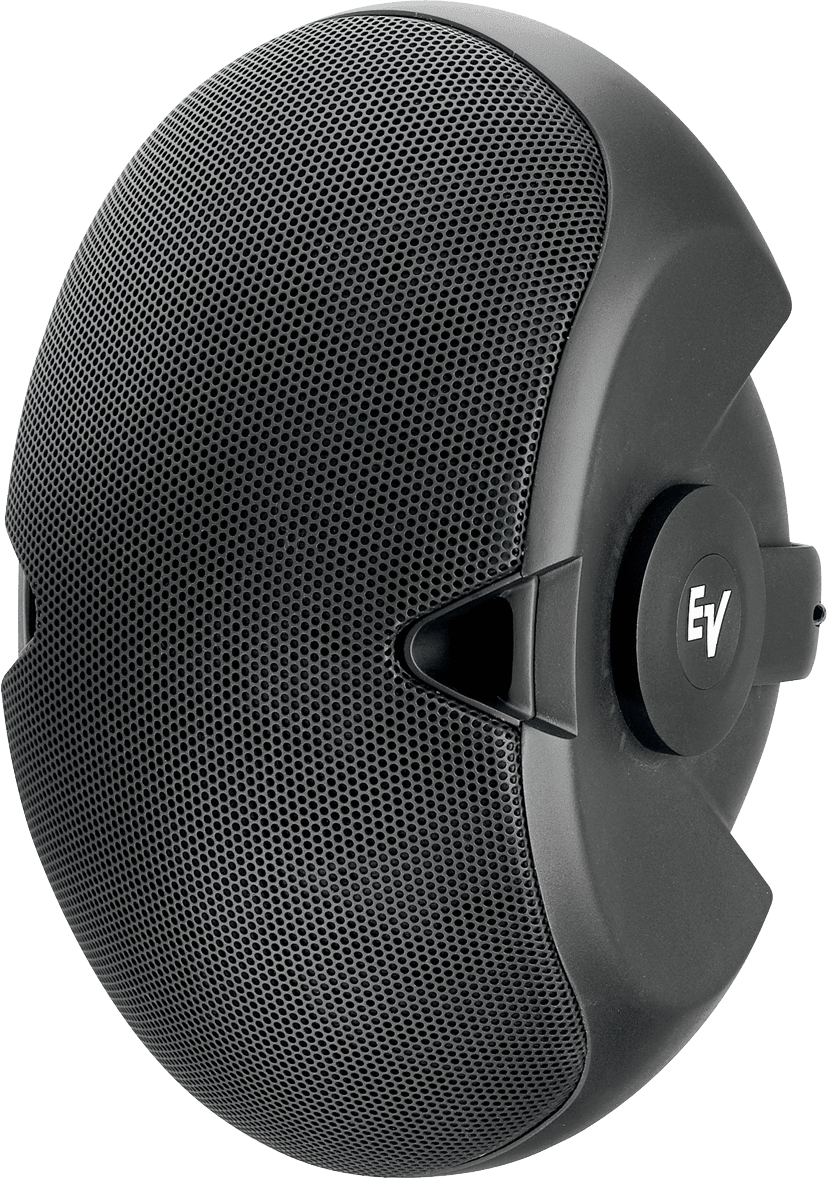

Electro-Voice EVID3.2 (sold only in pairs)

SKU: EVID32
$209.00 inc. VAT
Two-way twin 3.5" woofer and 7.5" direct radiator dome tweeter. Black cabinet. Includes mounting system (sold and priced per pair)

EVID 3.2

Dual 3.5" 2?Way Surface-Mount Loudspeaker

  • Ultra-compact full range
  • Ideal for restaurants, bars, patios, and retail
  • Vented LF enclosure
  • 0.75-inch titanium diaphragm HF driver with neodymium magnetic structure
  • Full-bandwidth overload protection (LF and HF)
  • Elliptical weather-resistant ABS enclosure
  • Paintable black or white finish
  • Magnetically shielded for video applications
  • Strong-Arm Mount™ for easy, flexible aiming
  • "T" version for 70 or 100 V distributed systems

Frequency Range (-10 dB) 85 - 20000kHz
Weight Net 52.91oz (1500g)
Depth 6.5" (165mm)


Width 5" (127mm)
Height 9.21" (234mm)
Available Color Black or white
Chassis Size 3.5" (88.9mm)
Coverage (Nominal -6 dB) H 140°
Coverage (Nominal -6 dB) V 100°
HF Transducer 0.75-inch
Input Connections Spring Terminal
LF Transducer Two 3.5-inch
Max. SPL/1m (calc) 112dB
Minimum Impedance 6?
Nominal Impedance (Passive) 8?
Power Rating 300W
Sensitivity 1 W/1 m 87dB
Speaker Type Full-Range, Mid-High, Two-Way
System Power Handling (Continuous/Program/Peak) 75//300Watts
Transformer Taps (Transformer Version Only) 70 V: 5 W, 100 V:10 W
Weatherized Yes
