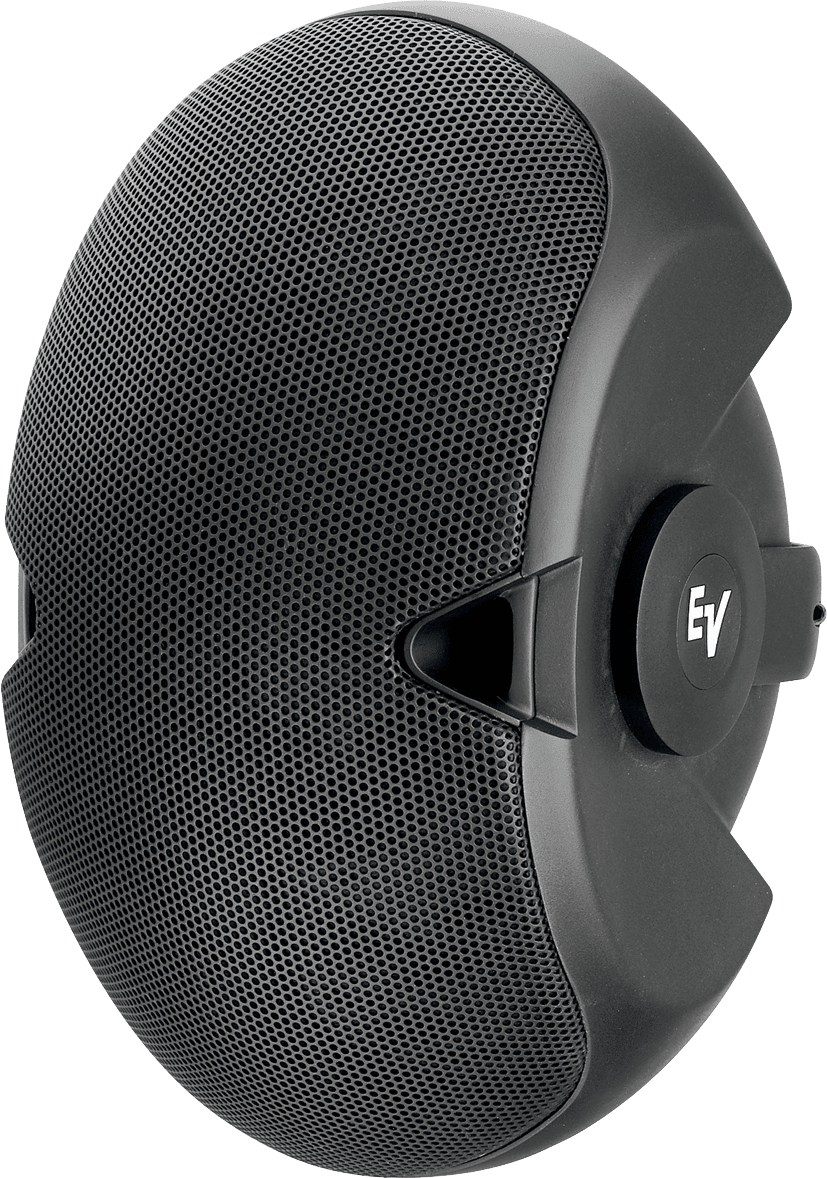

EVID 6.2

Dual 6" 2?Way Surface-Mount Loudspeaker

• Compact full range
• Ideal for shopping malls, sports bars, and health clubs
• Vented LF enclosure
• 1-inch titanium diaphragm HF driver with neodymium magnetic structure
• Coherent Coverage Waveguide
• Full-bandwidth overload protection (LF and HF)
• Elliptical weather-resistant ABS enclosure
• Paintable black or white finish
• Magnetically shielded for video applications
• Strong-Arm Mount™ for easy, flexible aiming
• "T" version for 70 or 100 V distributed systems

Impedance	8 ohms
Max SPL	118 d
Horizontal Coverage?	100°
Vertical Coverage?	80°
Crossover Frequency	1.6 kHz
LF Transducer	2 x 6" (100 mm)
HF Transducer	1" (25 mm)
Protection	Full Syste
Weather Resistance	Meets Mil Spec 810 humidity, salt spray, temperature and UV, and IEC 529 IP 34 splashproof ratings
Swing x Rotation	100° x 90°
Terminals	Phoenix Connector
Enclosure Material	ABS (paintable)
"t" Version Wattage Taps	70V 7.5 W 70V/100V 15W, 30W, 60W, 8 ohm bypass
Dim (H x W x D)	16.5" x 9" x 11.75" (419 mm x 228 mm x 298 mm)
Net Weight (each)	12 lbs (5.3kg)
Shipping Weight (pair)	27 lbs (12.3 kg)
Included Accessories	SAM™, hex key

¹ Half Space (wall mounting)
² Continouous Program Rating: 3 dB greater than continuous pink noise rating (IEC-shaped pink noise with 6dB crest factor)
³ Avg: Half Space (wall mounting)
? When mounted with long axis in vertical plane
