Electro-Voice

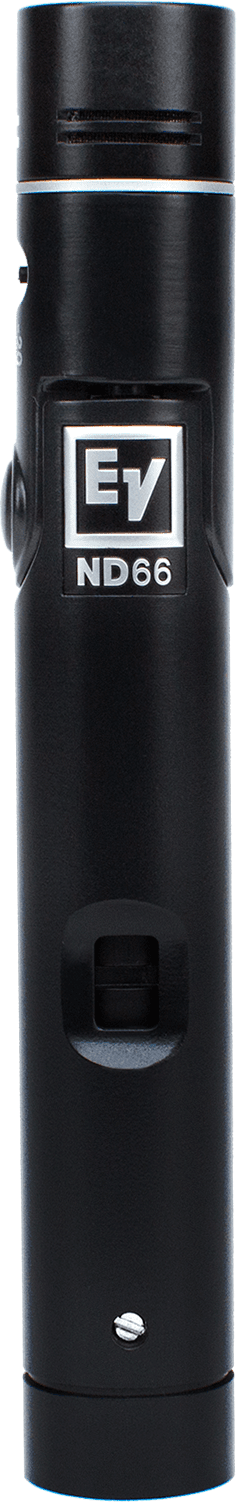

Electro-Voice ND66 cardioid condenser instrument mic

SKU: ND66
$199.00 inc. VAT





ND66

Condenser Cardioid Instrument Microphone

  • Premium small-diaphragm condenser element
    Self-biased condenser element is vividly responsive to sound sources that need a mic which translates transient details very well
  • Clean, crisp and detailed condenser sound
    Captures all details of percussive and stringed instruments
  • Easy mic placement with locking pivoting head
    Achieve ideal mic placement in virtually any situation by pushing a button, pivoting the head into position and releasing the button to lock
  • Selectable -10 and -20 dB pads
    Provides the necessary gain reduction to prevent the mic element from overloading
  • Selectable 75 Hz and 150 Hz high-pass filters
    Selectable HPF frequencies are strategically chosen to eliminate bothersome low frequencies from the signal path

The ND66 is a robust, high-performance small-diaphragm condenser instrument microphone. Its self-biased small-diaphragm condenser element is vividly responsive to the complex dynamic nature of percussive and stringed instruments, and delivers a clean, crisp and detailed sound. With the ND66’s exclusive locking rotating head, achieve ideal mic placement in virtually any situation by merely pushing a button, rotating the head into position, then releasing the button to lock the head's position.



Weight Net 6.31oz (179g)
Height 5.63" (143mm)
Audio Frequency Response 50 – 20,000

Case Material Die cast zinc
Connector Type 3-pin XLR
Diameter (Max) 0.83" (21mm)
Element Condenser
Family ND Series
Finish Black polyurethane paint
Impedance, Low-Z balanced 200?
Maximum SPL 146dB
Mic Type Instrument
Open Circuit Voltage 10mV/Pascal
Polar Pattern Cardioid
Power Requirement 48 VDC Phantom
Shipping Weight 16.4oz (465g)
Wired/Wireless Wired
