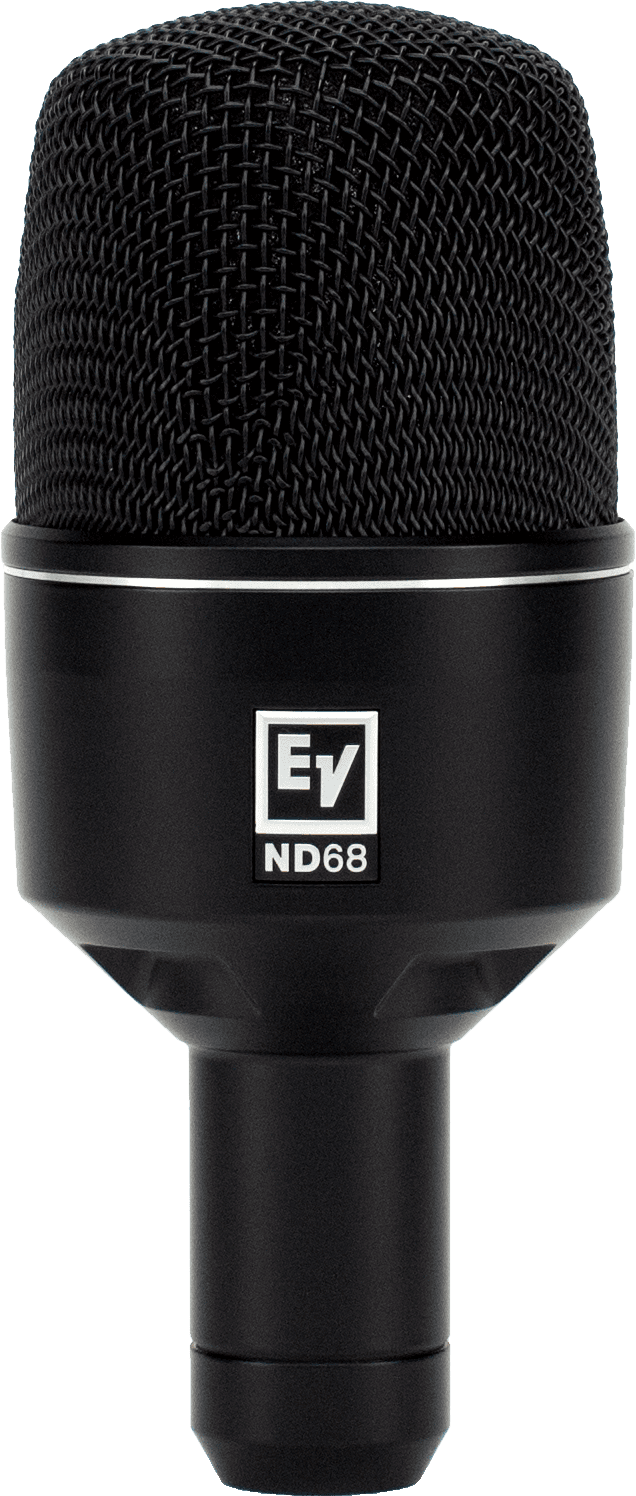

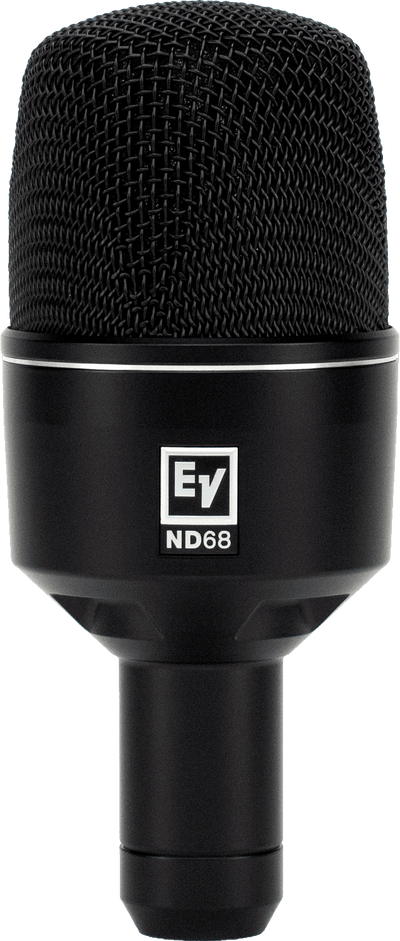

Electro-Voice ND68 supercardioid kick drum mic

SKU: ND68
$199.00 inc. VAT





ND68

Dynamic Supercardioid Bass Drum Microphone

  • Excellent acoustic isolation
    With deep lows and top-end punctuation
  • Large-diaphragm dynamic capsule
    Creates a rich and detailed frequency response
  • Extremely high SPL handling capability
    Manages close miking of high SPL transients and RMS wave fronts up to 144 dB SPL
  • Humbucking coil guards against line hum
    Use with confidence near speaker cabinets and EMF-generating equipment racks
  • Memraflex grille resists denting
    Durable tight-mesh grilles withstand extraordinarily rough treatment

The ND68 is a robust, high-performance, large-diaphragm dynamic supercardioid kick drum and low-frequency instrument microphone. Its supercardioid polar pattern provides excellent acoustic isolation from nearby instruments, and its voicing characteristics deliver a deep low end, relaxed midrange, as well as high-frequency content for aggressive top-end punctuation.

Weight Net 13.19oz (374g)
Height 5.63" (143mm)
Audio Frequency Response 20 – 11,000

Case Material Die cast zinc
Connector Type 3-pin XLR
Diameter (Max) 2.39" (60.8mm)
Element Dynamic
Family ND Series
Finish Black polyurethane paint
Impedance, Low-Z balanced 150?
Maximum SPL > 140dB
Mic Type Instrument
Open Circuit Voltage 0.8mV/Pascal
Polar Pattern Supercardioid
Power Requirement Passive
Shipping Weight 24.8oz (703g)
Wired/Wireless Wired
