Home » Electro-Voice TX1181 500 watts, 18-inch subwoofer, EVS-18S woofer, Backbone grille, integrated top pole mount
Electro-Voice

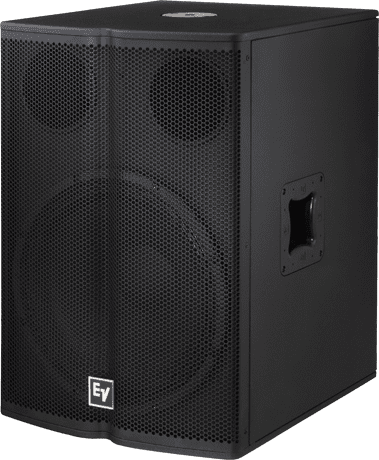

Electro-Voice TX1181 500 watts, 18-inch subwoofer, EVS-18S woofer, Backbone grille, integrated top pole mount

SKU: TX1181
$949.00 inc. VAT
-2% $968.00 $949.00 inc. VAT


TX1181

18" Passive Subwoofer

  • High-power LF supplement to TX1122 and TX1152
  • High-excursion EVS-18S woofer
  • 6 dB/octave low-pass filter for parallel connection without added amp
  • 100 dB sensitivity, 132 dB max SPL
  • Power handling: 500 W continuous, 2000 W peak
  • Top-side socket for speaker pole
  • Mount points (6) for optional wheel kit
  • Braced plywood/MDF enclosure
  • Black EVCoat™ finish

Frequency Range (-10 dB) 45 - 700kHz
Weight Net 74.52lbs (33.8kg)
Depth 23.27" (591mm)


Width 20" (508mm)
Height 30.28" (769mm)
Available Color Black
Enclosure Material Plywood and MDF with EVCOAT
Family Tour X
Flying No
Frequency Response (-3 dB) 50 - 160Hz
Input Connections Parallel Neutrik® NL4
Internal Crossover Low-pass filter
LF Transducer 18-inch EVS18S
Max. SPL/1m (calc) 132dB
Minimum Impedance 7.5?
Nominal Impedance (Passive) 8?
Power Rating 2000W
Powered or Passive Passive
Recommended High-Pass Frequency 30Hz
Sensitivity 1 W/1 m 100dB
Speaker Type Subwoofer
System Power Handling (Continuous/Program/Peak) 500//2000Watts
Woofer Size 18inch
