Home » Electro-Voice TX2152 1000 watts, dual 15-inch two-way, passive, 60° x 40° horn pattern, all-new SMX2151 woofers
Electro-Voice

Electro-Voice TX2152 1000 watts, dual 15-inch two-way, passive, 60° x 40° horn pattern, all-new SMX2151 woofers

SKU: TX2152
$1,499.00 inc. VAT
-10% $1,674.00 $1,499.00 inc. VAT


TX2152

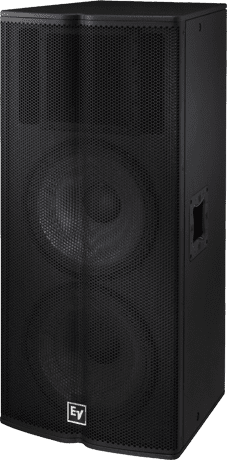

Dual 15" 2?Way Passive Full?Range Loudspeaker

  • Very high SPL with smooth response
  • Ideal as mains for small-to-medium clubs
  • Excellent pattern control for medium throw use
  • Dual SMX2151 woofers with fully symmetric drive
  • 2-inch ND2 neodymium HF compression driver
  • Rotatable Constant-directivity 60º x 40º horn
  • Advanced 6th-order crossover with HF protection
  • 103 dB sensitivity, 139 dB maximum SPL
  • Power handling: 1000 W continuous, 4000 W peak
  • Internally braced trapezoidal plywood/MDF enclosure
  • Six 3/8-inch threaded suspension points
  • Black EVCoat™ finish

Frequency Range (-10 dB) 50 - 18000kHz
Weight Net 94.36lbs (42.8kg)
Depth 18.54" (471mm)

Width 20" (508mm)
Height 45.43" (1154mm)
Available Color Black
Coverage (Nominal -6 dB) H 60°
Coverage (Nominal -6 dB) V 40°
Crossover Frequency 1750Hz
Enclosure Material Plywood and MDF with EVCOAT
Family Tour X
Flying Yes
Frequency Response (-3 dB) 55 - 13000Hz
HF Transducer 2-inch ND2
Input Connections Parallel Neutrik® NL4
Internal Crossover Yes
LF Transducer Two 15-inch SMX2151
Max. SPL/1m (calc) 139dB
Minimum Impedance 3.1?
Nominal Impedance (Passive) 4?
Power Rating 4000W
Powered or Passive Passive
Recommended High-Pass Frequency 40Hz
Rotatable Horn Yes
Sensitivity 1 W/1 m 103dB
Speaker Type Full-Range
Suspension (6) 3/8-inch threaded inserts
System Power Handling (Continuous/Program/Peak) 1000//4000Watts
Woofer Size 15inch
