Electro-Voice TX2181 1000 watts, dual 18-inch subwoofer, EVS-18S woofers, Backbone grille, angled input panel

SKU: TX2181
$1,499.00 inc. VAT
-5% $1,578.00 $1,499.00 inc. VAT


TX2181

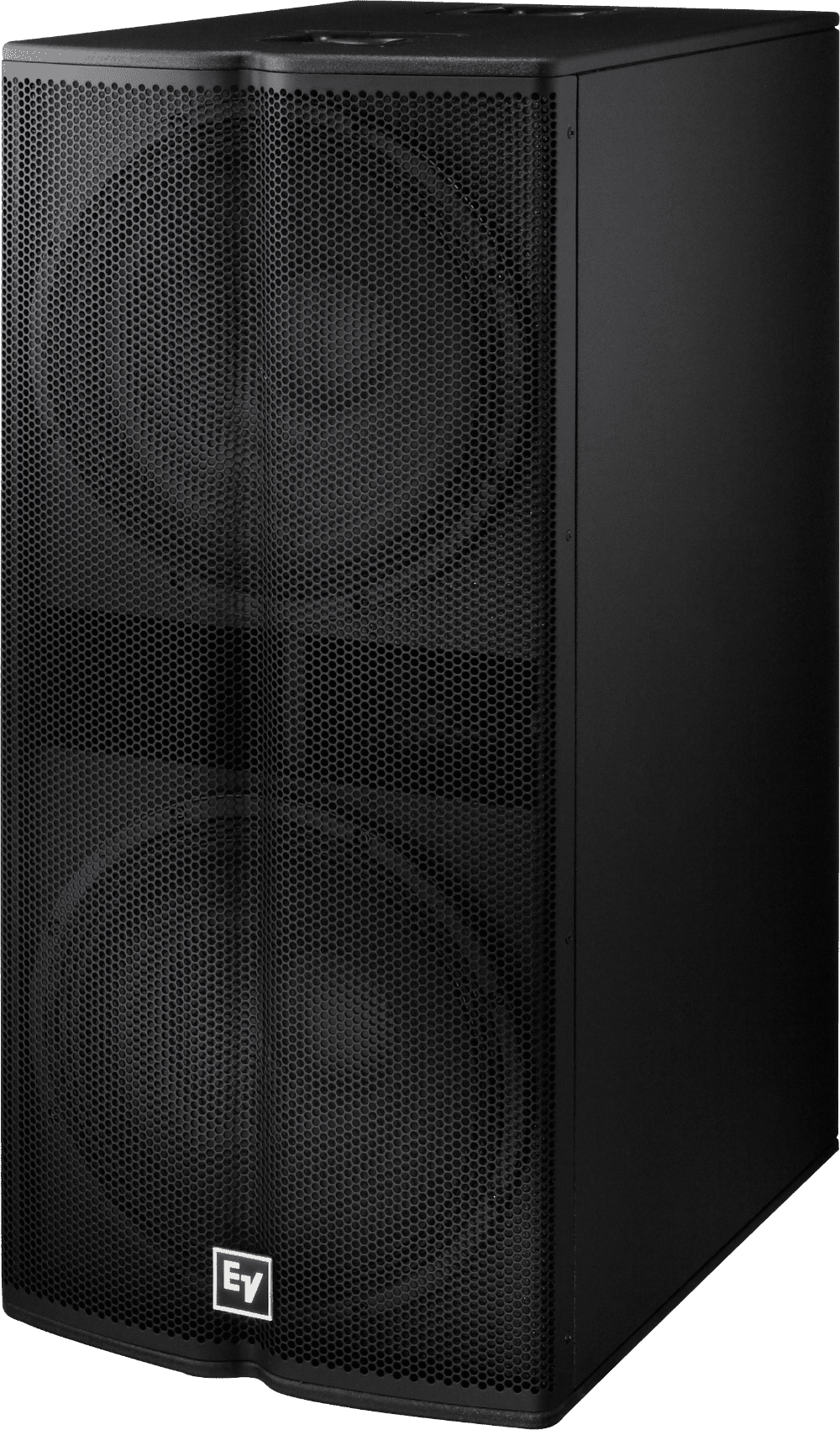

Dual 18" Passive Subwoofer

  • High-power LF supplement to TX2152
  • Low-distortion port design
  • Two high-excursion EVS-18S woofers
  • Use with processor and dedicated amp channel
  • 103 dB sensitivity, 138 dB max SPL
  • Power handling: 1000 W continuous, 4000 W peak
  • Mount points (6) for optional wheel kit
  • Braced plywood/MDF enclosure
  • Black EVCoat™ finish

Freq. Response¹ (-3 dB) 50 Hz - 160 Hz
Freq. Range¹ (-10 dB) 40 Hz - 1.5 kHz
Rec. Low Pass Frequency 80 Hz - 120 Hz


Axial Sensitivity¹ 103 dB (1W/1m)
Max. Calculated SPL¹ 138 dB
Horizontal Coverage Omnidirectional
Vertical Coverage Omnidirectional
Power Handling 1000W Continuous, 4000W Peak
LF Transducers (2) EVS-18S, 18 in (457mm) Drivers
Nominal Impedance 4 Ohms
Minimum Impedance 2.9 Ohms
Connectors (2) Neutrik Speakon NL4's
Enclosure Material Plywood and MDF with EVCoat??
Grille 16 GA Steel, Black Powdercoat, with Rotatable Logo
Dimensions (H x W x D) 45.4" x 20.0" x 27.2" (1154mm x 508mm x 691mm)
Net Weight 123.5 lbs (56.1 kg)
Shipping Weight 139.0 lbs (63.1 kg)
¹ Half Space Measurement.
