Home » Electro-Voice ZLX-12 TWO-WAY PASSIVE LOUDSPEAKER
Electro-Voice

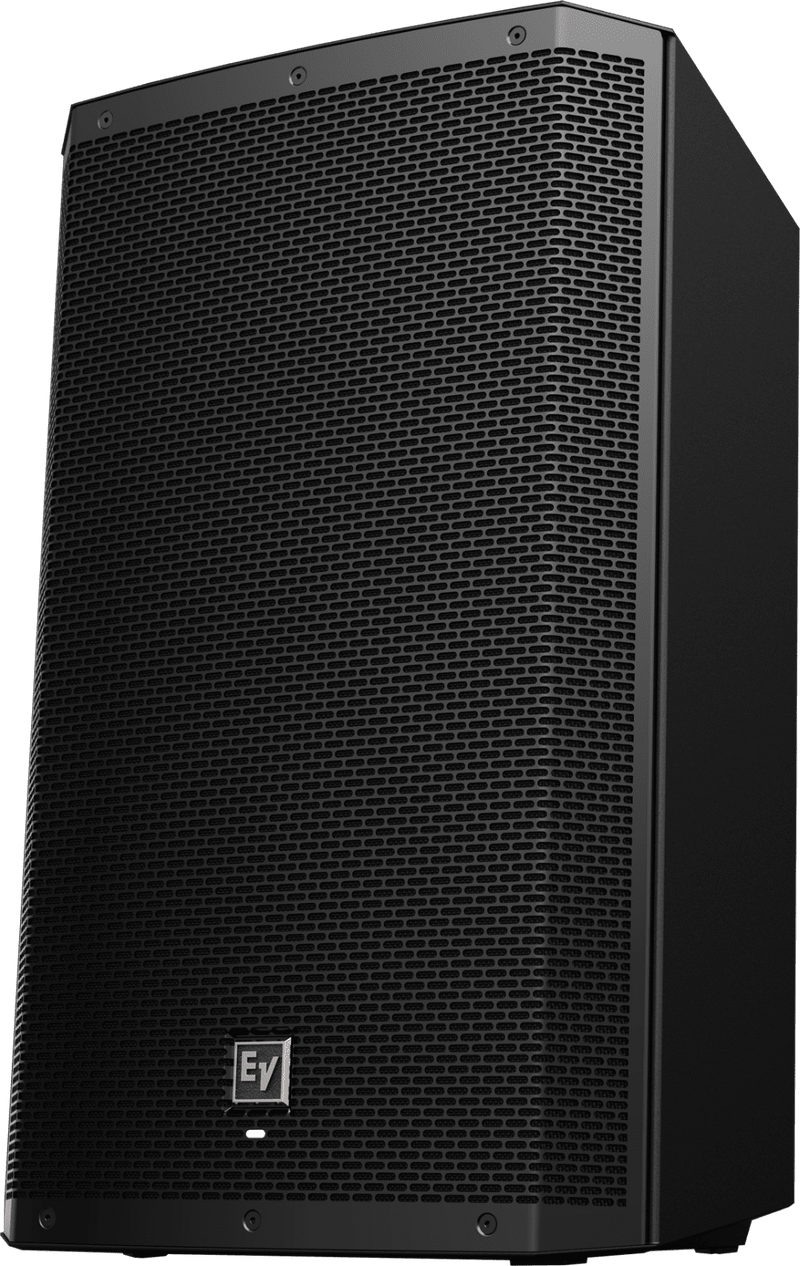

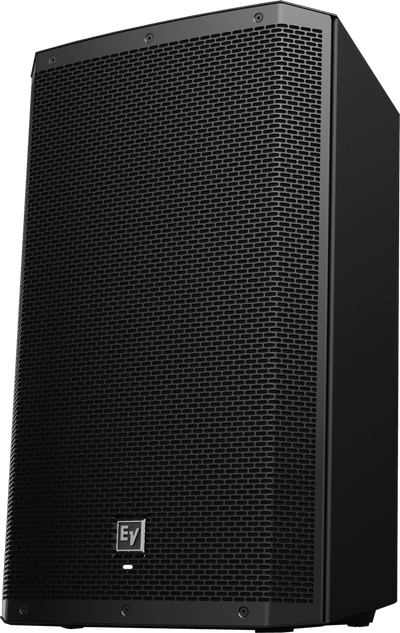

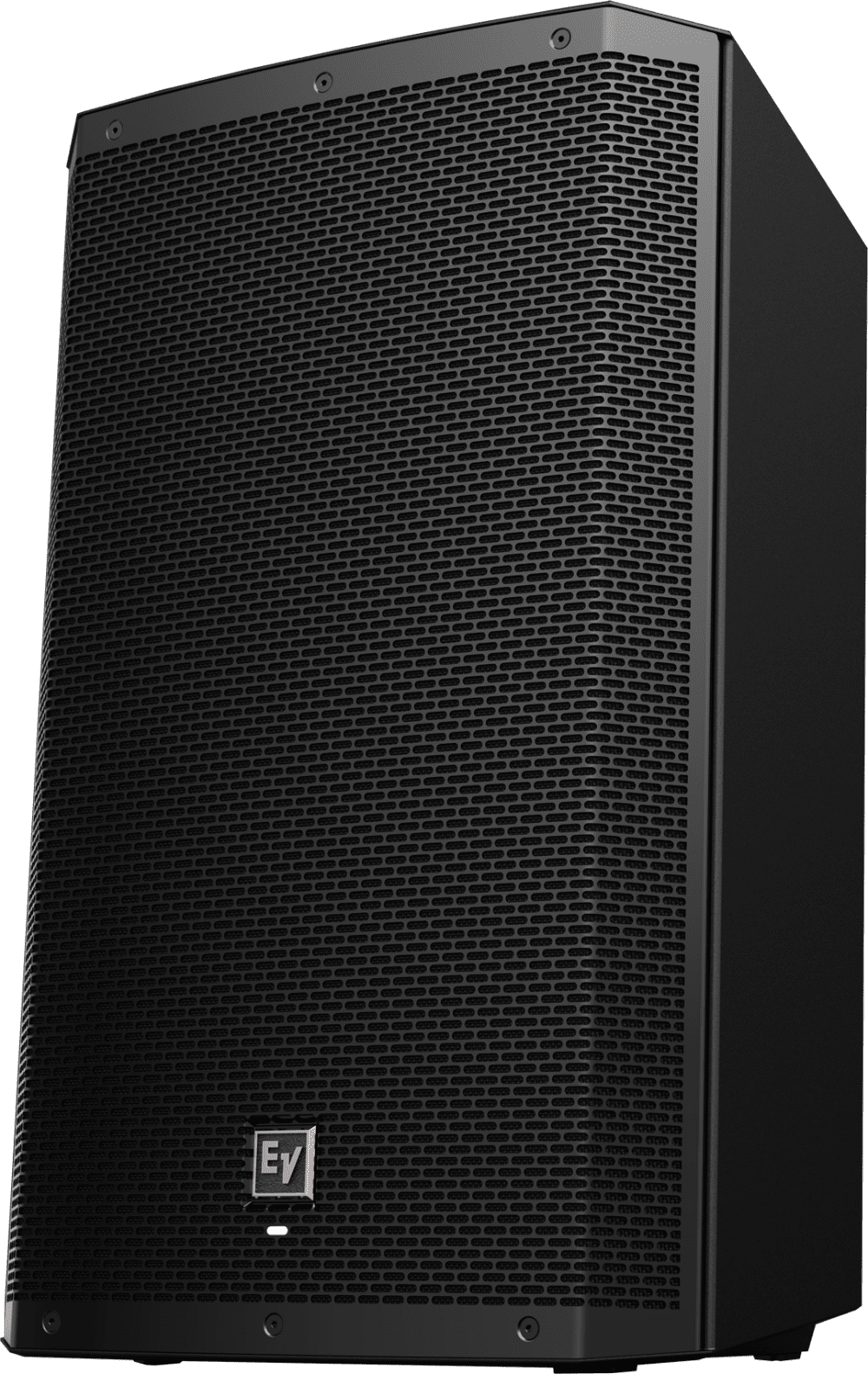

Electro-Voice ZLX-12 TWO-WAY PASSIVE LOUDSPEAKER

SKU: ZLX12
$429.00 inc. VAT
-20% $539.00 $429.00 inc. VAT


ZLX-12

12" Passive Loudspeaker

  • 12” woofer for low-end punch in a compact enclosure and 1.5” high-frequency
  • titanium compression driver
  • 55 Hz – 20 kHz frequency range
  • 250 W continuous and 1000 W peak power handling
  • 95 dB SPL sensitivity; 125 dB max SPL.8 lbs (14.9 kg)

Big sound doesn’t need to take up a lot of space. Ideal for main loudspeaker or monitor wedge duties, the ZLX-12 offers the ultimate combination of performance and portability – and always looks great on stage.

Frequency Response 82 Hz - 18 kHz¹
Frequency Range 55 Hz - 20 kHz
Axial Sensitivity 95 dB


Maximum SPL 125 dB
Recommended HP Frequency 40 Hz
Coverage (Hort. x Vert.) 90° x 60°
Power Handling 250 Watts Continuous, 1000 Watts Peak
LF Transducer EVS-12K, 300 mm (12 in) Woofer
HF Transducer DH-1K
Crossover Frequency 2.1 kHz
Nominal Impedance 8 ?
Minimum Impedance 7 ?
Connectors Dual NL4
Enclosure Polypropylene
Grille 18 Gauge Steel with Black Powder Coat
Dimensions (H x W x D) 610 mm x 356 mm x 356 mm (24 in x 14 in x 14 in)
Net Weight 14.9 kg ( 32.8 lb)
Shipping Weight 18.0 kg ( 39.6 lb)
¹ Full Space Measurement, will have low frequency extension when mounted on floor or wall.
