Electro-Voice

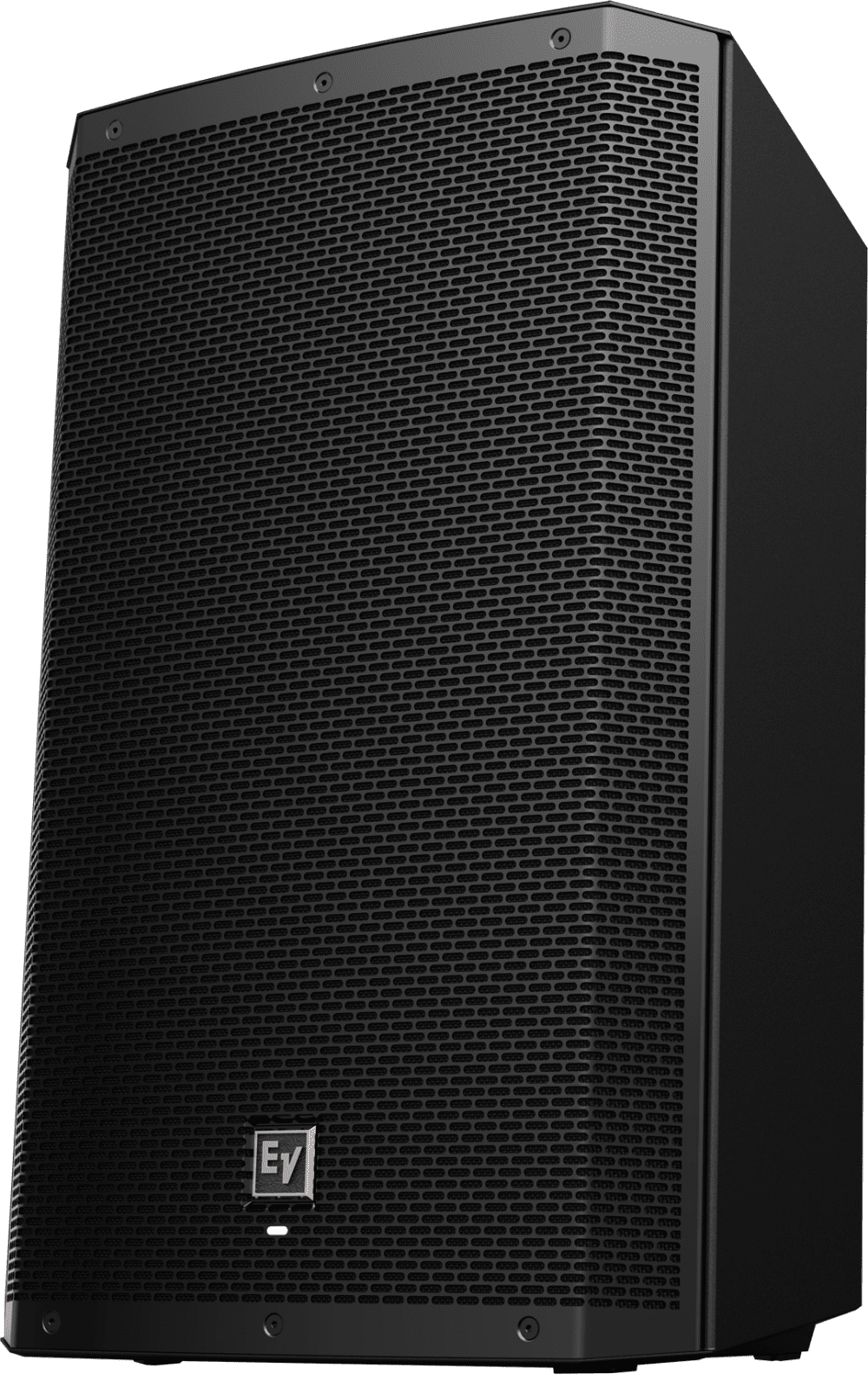

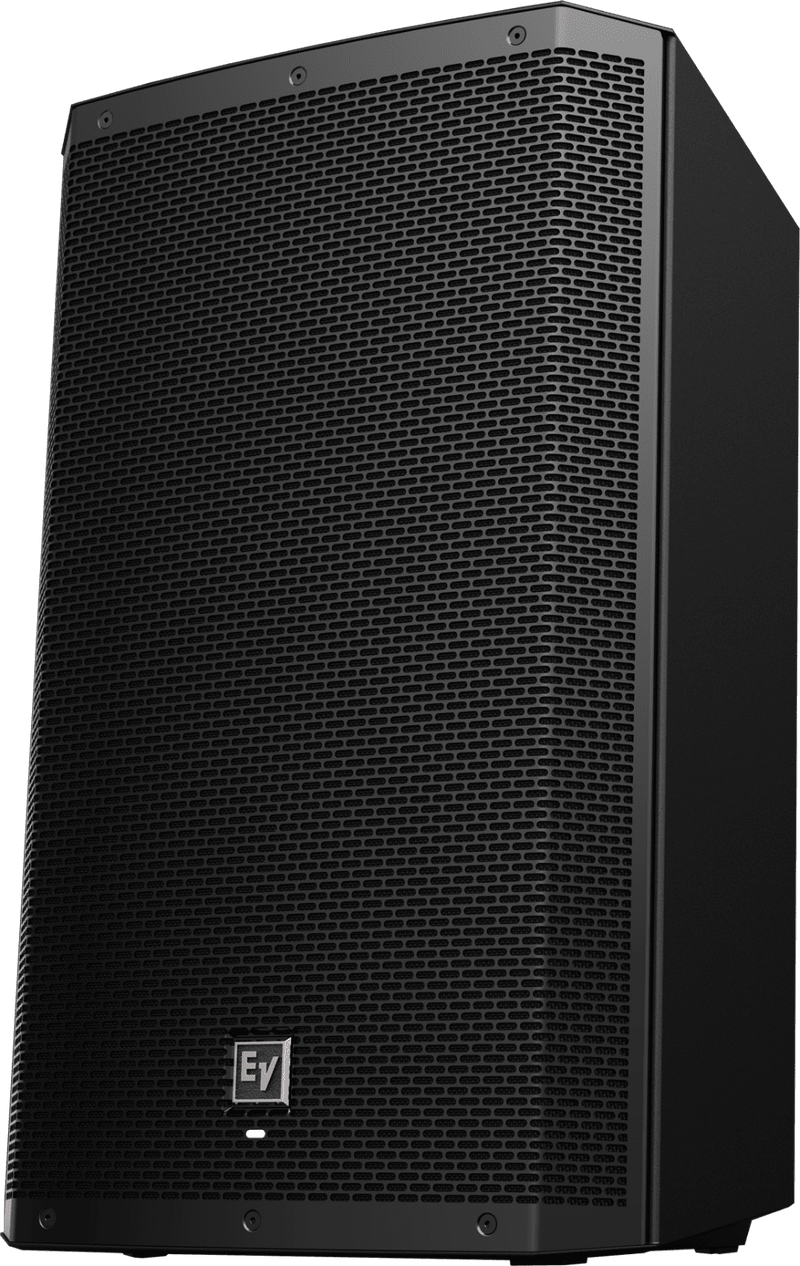

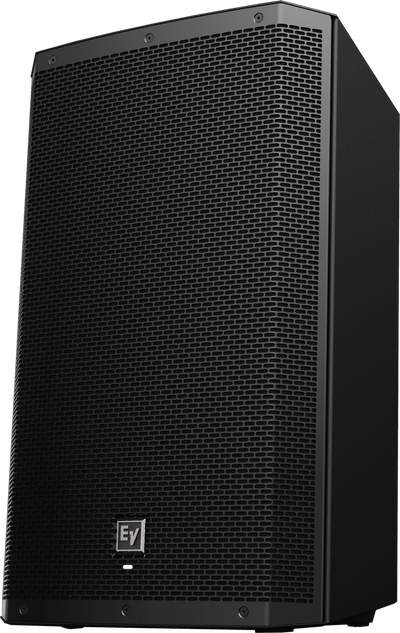

Electro-Voice ZLX-15 TWO-WAY PASSIVE LOUDSPEAKER

SKU: ZLX15
$529.00 inc. VAT
-26% $718.00 $529.00 inc. VAT


ZLX-15

15" Passive Loudspeaker

  • 15” woofer for extended low-frequency response and 1.5” high-frequency titanium compression driver
  • 44 Hz – 20 kHz frequency range
  • 250 W continuous and 1000 W peak power handling
  • 96 dB SPL sensitivity; 126 dB max SPL
  • 36.5 lbs (16.6 kg)

The ZLX-15 gives you the confidence of the industry’s most trusted components – engineered to exacting standards to bring exceptional EV audio quality for larger applications, with or without a subwoofer.

Frequency Response 56 Hz - 18 kHz¹
Frequency Range 44 Hz - 20 kHz
Axial Sensitivity 96 dB


Maximum SPL 126 dB
Recommended HP Frequency 40 Hz
Coverage (Hort. x Vert.) 90° x 60°
Power Handling 250 Watts Continuous, 1000 Watts Peak
LF Transducer EVS-15L, 380 mm (15 in) Woofer
HF Transducer DH-1K
Crossover Frequency 1.7 kHz
Nominal Impedance 8 ?
Minimum Impedance 7 ?
Connectors Dual NL4
Enclosure Polypropylene
Grille 18 Gauge Steel with Black Powder Coat
Dimensions (H x W x D) 685 mm x 423 mm x 383 mm (27 in x 17 in x 15 in)
Net Weight 16.6 kg (36.5 lb)
Shipping Weight 22.0 kg (48.3 lb)
¹ Full Space Measurement, will have low frequency extension when mounted on floor or wall
