Electro-Voice ZX1-SUB ZX1-Sub, Black, Passive

SKU: ZX1SUB
$699.00 inc. VAT

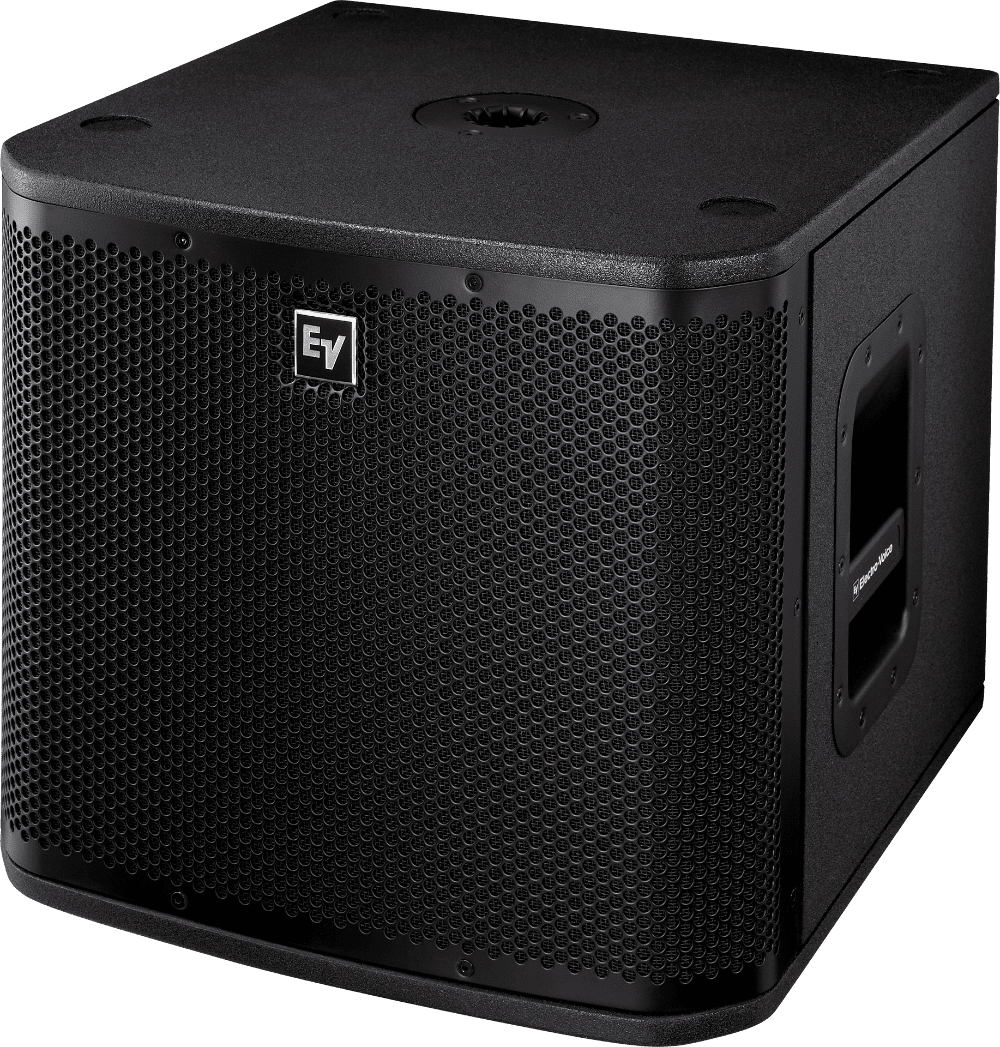

ZX1-Sub

12” Passive Subwoofer

  • 15-mm plywood enclosure, internally braced, with textured paint
  • EVS-12S 12" woofer for powerful, engaging bass response
  • Pole mount for full-range systems

The new ZX1-Sub is optimized for performance with a variety of EV loudspeakers, including ZX1, EVID, and EVU models, and will add a deep low-frequency punch that you can feel as well as hear. An ideal choice to complete a wide range of smaller fixed installations or live sound systems.

Frequency Range (-10 dB) 42 - 200kHz
Weight Net 43.65lbs (19.8kg)
Depth 18" (457.2mm)


Width 17.5" (444.5mm)
Height 15.75" (400mm)
Enclosure Material 9-ply 15 mm plywood, internally braced with textured paint
Family ZxZxA
Frequency Response (-3 dB) 53 - 125Hz
Grille 16 GA steel with black powder coat
Input Connections NL4 style (2)
LF Transducer EVS-12S, 305 mm( 12") Woofer
Max. SPL/1m (calc) 127dB
Nominal Impedance 8?
Power Rating 1600W
Powered or Passive Passive
Sensitivity 1 W/1 m 94dB
Shipping Weight 56lbs (25.4kg)
Speaker Type Subwoofer
System Power Handling (Continuous/Program/Peak) 400 / 800 / 1600Watts
Woofer Size 12inch
