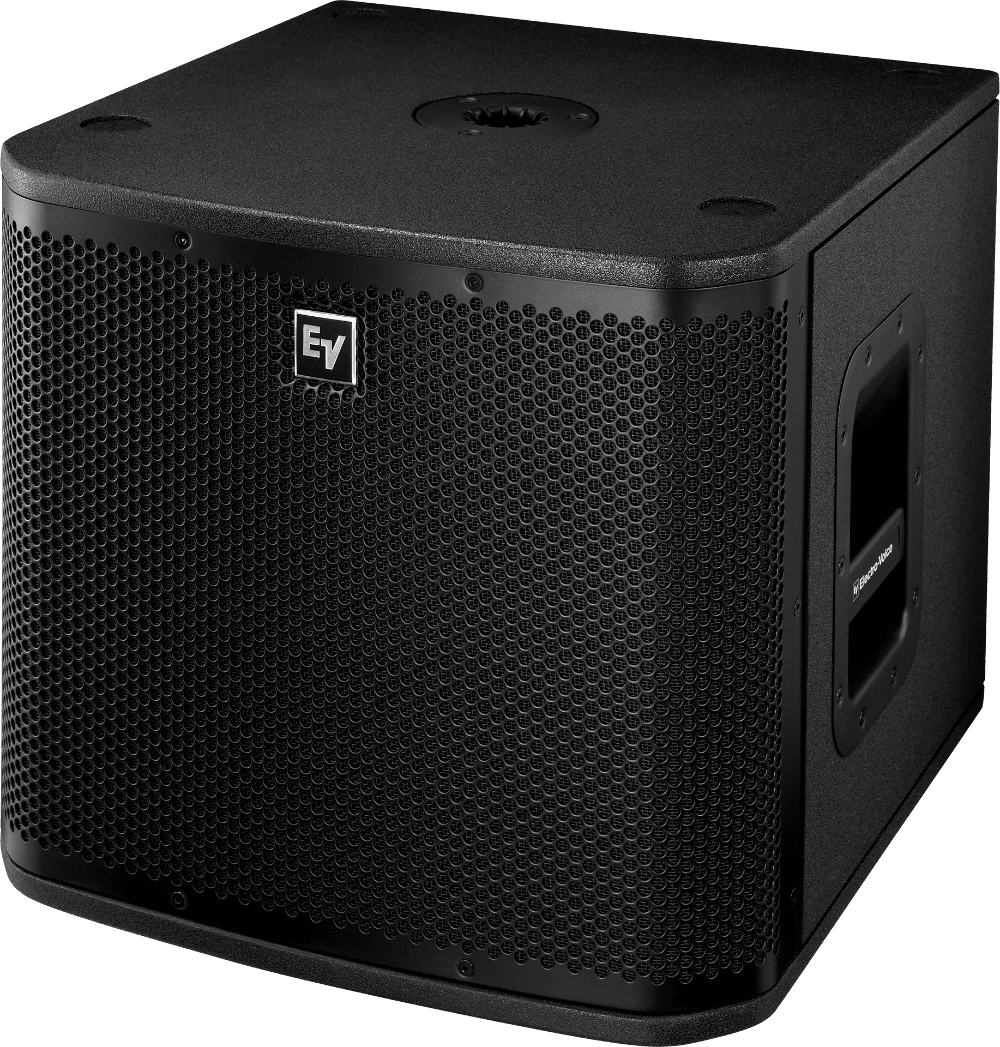

Electro-Voice ZXA1-SUB 120V, BLK, AMPLIFIED

Regular price $899.00 inc. VAT


12" Powered Subwoofer

  • 15mm Plywood Enclosure, Internally Braced, with Textured Paint
  • EVS-12S 305mm (12”) Woofer for Powerful, Engaging Bass Response
  • Class D Lightweight Amplifier
  • Pole Mount for Full-Range Systems
  • Dual XLR Inputs and Outputs
  • Switchable EQ Modes for Different Applications
  • LED indicators for Power On and Limit

Extending the ZXA1’s size-defying performance and sleek styling into the low-end realm, the ZXA1-Sub packs 700 W of self-powered punch into a low-profile wood enclosure. Match ZXA1 with ZXA1-Sub and hear just how big a small rig can sound, whether you want to add a tight thump to a DJ set or give the highs and mids some breathing room in a live performance.

Freq. Response (-3dB) 53Hz-93Hz¹
Freq. Range (-10dB) 44Hz-118Hz¹
Max. Measured SPL 126dB¹, ²


Coverage (Horiz. x Vert.) Omnidirectional
Power Rating 700W
LF Transducer (1) EVS-12S, 305mm (12") Woofer
Crossover Frequency 100Hz
Connectors (2) XLR Stereo Input, (2) XLR Stereo Output
Enclosure Material 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
Grille 16GA Steel with Black Powdercoat
Mains Requirements 120V: 90V-132V, 1.0A³ , 50-60Hz
230V: 190V-264V, 0.6A³, 50-60Hz
Dimensions (H x W x D) 400mm x 444.5mm x 457.2mm (15.75" x 17.50" x 18.00")
Net Weight 20.9kg (46.0lbs)
Shipping Weight 26.5kg (56.5lbs)
¹ Half-Space
² Typical maximum SPL value at one (1) meter over the usable frequency range. measured with a pink-noise burst signal, using internal signal processing and amplifier driven to peak output.
³ 1/8 power
