QSC K8.2 Powered 8-inch 2-way

$799.99 inc. VAT

Features


  • Best in class audio performance
  • 2000 Watt Class-D amplifier module
  • Intrinsic Correction™ tuning and  loudspeaker management
  • Directivity Matched Transition™ (DMT)  design provides excellent power response and consistent performance across the listening area
  • Refined, professional appearance looks great in any application
  • Rugged ABS enclosure for long life and lasting durability

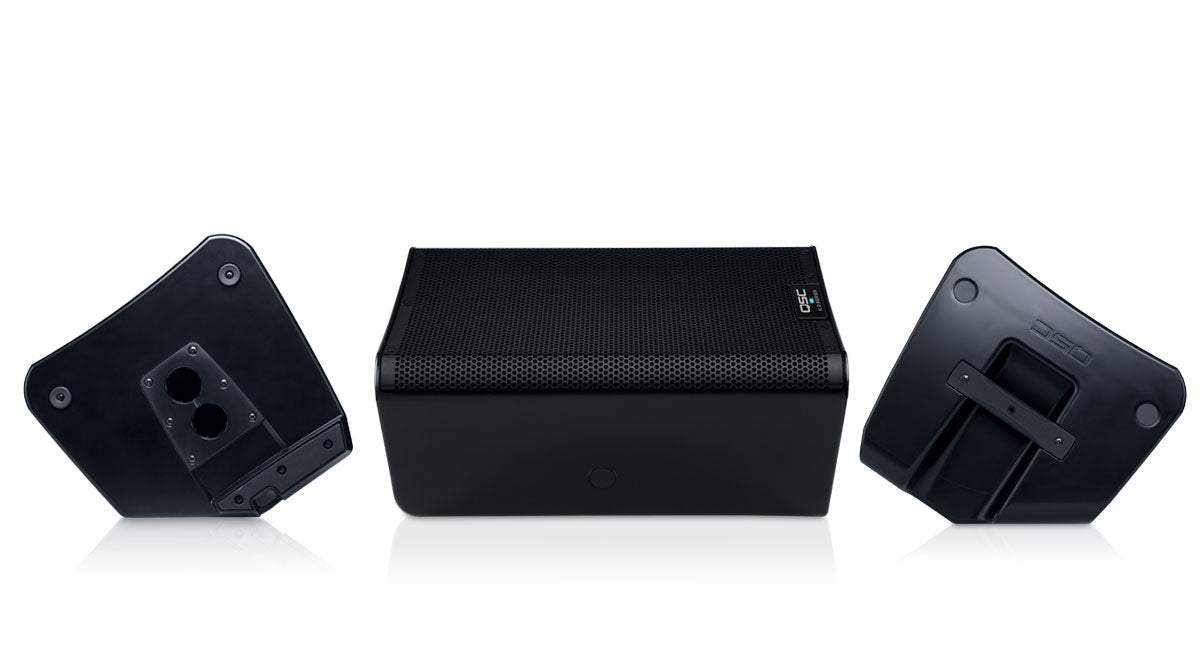

  • Deployment in either main PA or floor monitor position

  • Factory Presets and savable/recallable Scenes for commonly-used application
  • Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contour
  • Dual pole cup mounts (standard and 7.5 degree down-tilt)
  • M10 fittings for flown applications
  • Optional security panel prevents  unauthorized tampering of controls
  • Complete EASE and CAD information  available online
  • 6-Year Warranty (with product registration)
  • Model K8.2
    Configuration Multi-purpose, 2-way active loudspeaker
    LF Transducer 203 mm (8-inch), cone
    HF Transducer 35.6 mm (1.4-inch) titanium diaphragm compression driver
    Frequency Response (-6 dB) 59 Hz - 20 kHz
    Frequency Range (-10 dB) 55 Hz - 20 kHz
    Nominal Coverage Angle 105° Axisymetric
    Maximum Rated SPL1

    Amplifier

    Cooling    		 128 dB @1 M, peak 122 dB @ 1 M, continuous

    Class D Peak: 1800 W (LF), 225 W (HF)

    Low-noise, variable speed fan

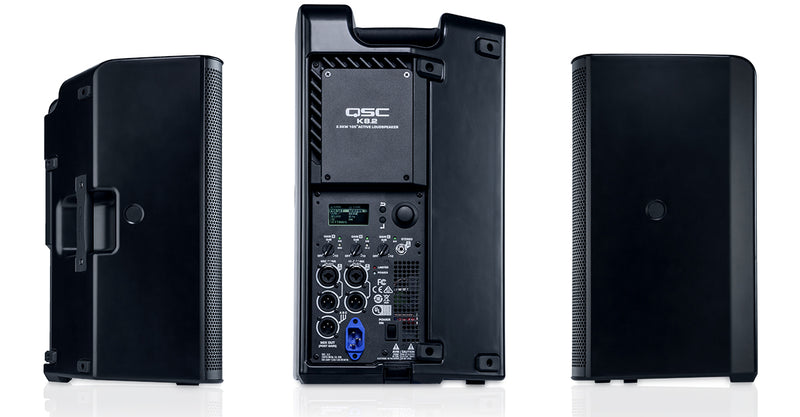

    Controls Power
    3 × Level
    Rotary encoder (push)
    2 ×x selection buttons
    Indicators Monochrome LCD Display 45 mm × 25.4 mm (1.75-inch × 1-inch)
    2 × Power LED (front and rear)
    3 × Input Signal LED
    Input A Mic selected LED
    Input B Hi-Z selected LED
    Limiter active LED
    Connectors 2 × locking XLR/F ¼⁻ᶦⁿᶜʰ combo (Mic/Line Input and Hi-Z/Line Input
    1 × 3.5 mm TRS (Stereo Input)
    2 × XLR/M (Loop-thru Output)
    1 × XLR/M (Mix Output)
    1 × locking IEC power connector
    AC Power Input Universal power supply 100 – 240 VAC, 50 – 60 Hz
    AC Power Consumption 1/8th Power2 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A
    AC Power Consumption - Standby 0.2 A at any voltage
    Enclosure Details
    Enclosure Impact Resistant ABS
    Attachment Points 2 × M10 threaded inserts plus Pull-Back
    Color Black (RAL 9011)
    Grille 18 Gauge powered coated steel, internal cloth lining
    Speaker Dimensions (H×W×D) 449 × 280 × 269 mm
    17.7 × 11 × 10.6 in
    Carton Dimensions (H×W×D) 500 × 380 × 368 mm
    19.7 × 15 × 14.5 in
    Net Weight 12.2 kg / 27 lb
    Shipping Weight 14.4 kg / 31.7 lb
    Regulatory CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
    Optional Accessories K8 Tote, K8 Outdoor Cover
    M10 Kit-C, K.2-LOC Lock Out Cover
    K8.2 Yoke
