QSC

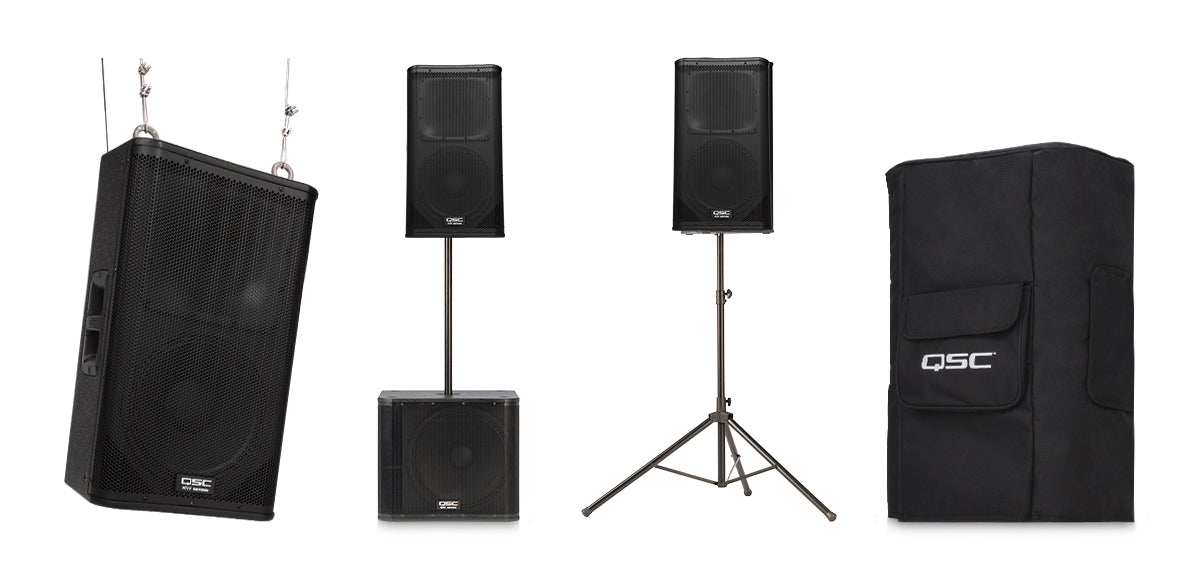

QSC KW122 Powered 12-inch 2-way

Regular price $1,329.99 inc. VAT

Features


  • 12-inch Woofer; 1.75-inch diaphragm compression driver
  • 75° conical DMT coverage
  • Maximum SPL 131 dB peak
  • Also functions as monitor floor wedge
  • 1000-watt Class D power modules in all models (2 × 500 W continuous)
  • Onboard mixer with two combo XLR and ¼⁻ᶦⁿᶜʰ inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output

  • Extensive DSP featuring DEEP™ and Intrinsic Correction™ enhances system performance
  • DMT™ (Directivity Matched Transition) ensures uniform coverage across the entire sound field
  • Rugged, texture-painted birch enclosures
  • Four-position Mic/Line gain (full-range models)
  • Tour-grade 16 gauge steel grilles
  • Comfortable ergonomic handles
  • 35 mm pole sockets with Tilt-Direct™
  • M10 rigging points for suspended installation

SPECIFICATIONS KW122
Configuration 12-inch 2-way multipurpose
Transducers
Low-frequency
Mid-frequency
High-frequency

12-inch cone transducer

-

1.75-inch diaphragm compression driver
Frequency Response (-6 dB) 53 Hz to 18 kHz
Frequency Range (-10 dB) 50 Hz to 20 kHz
Nominal Coverage (-6 dB) 75° axisymmetric
Maximum SPL1 131 dB peak
Amplifier
Power Output2 1000 W Class D (500 W LF + 500 W HF) continuous
2000 W peak
Input Impedance Channel A XLR / ¼⁻ᶦⁿᶜʰ:
Mic gain setting Balanced Unbalanced
0 dB 38 kΩ 19 kΩ
+12 dB 10 kΩ 5 kΩ
+24 dB 2.66 kΩ 1.33 kΩ
+36 dB 660Ω 330Ω
Channel B XLR / ¼⁻ᶦⁿᶜʰ: 38 kΩ balanced / 19 kΩ unbalanced
Channel B RCA: 10 kΩ
Controls Power, Gain A, Gain B, Channel A Input Gain (0 dB / 12 dB / 24 dB / 36 dB), LF Mode (Ext Sub/Norm/DEEP™), HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit)
Indicators Power, Signal A, Signal B, Standby, Limit, Mic (24 dB and 36 dB settings)
Connectors Balanced female XLR/¼⁻ᶦⁿᶜʰ line/mic level input, Balanced female XLR/¼⁻ᶦⁿᶜʰ line level input, Dual Balanced male XLR full range line level out , Balanced male XLR "mix" out, Stereo RCA line level input, Remote gain control, Locking IEC power connector
Cooling On demand, 50 mm variable speed fan
Amplifier Protection Thermal limiting, output overcurrent, overtemperature muting, GuardRail™
Transducer Protection Thermal limiting, excursion limiting
AC Power Input Universal power supply 100–240 VAC, 50 to 60 Hz
AC Power Consumption
(1/8 Power)
100 VAC, 2.3 A
120 VAC, 2.01 A
230 VAC, 1.13 A
Enclosure
Material 15 mm painted birch plywood
Finish Black textured paint
Grille Black powder coated 16 gauge steel
Speaker Dimensions (H×W×D) 660 × 381 × 391 mm
26 × 15 × 15.4 in
Carton Dimensions (H×W×D) 710 × 530 × 508 mm
28 × 20.9 × 20 in
Net Weight 22.2 kg / 49 lb
Shipping Weight 29 kg / 63.9 lb
Available Accessories KW122 suspension kit, KW122 cover, KW M10 kit
