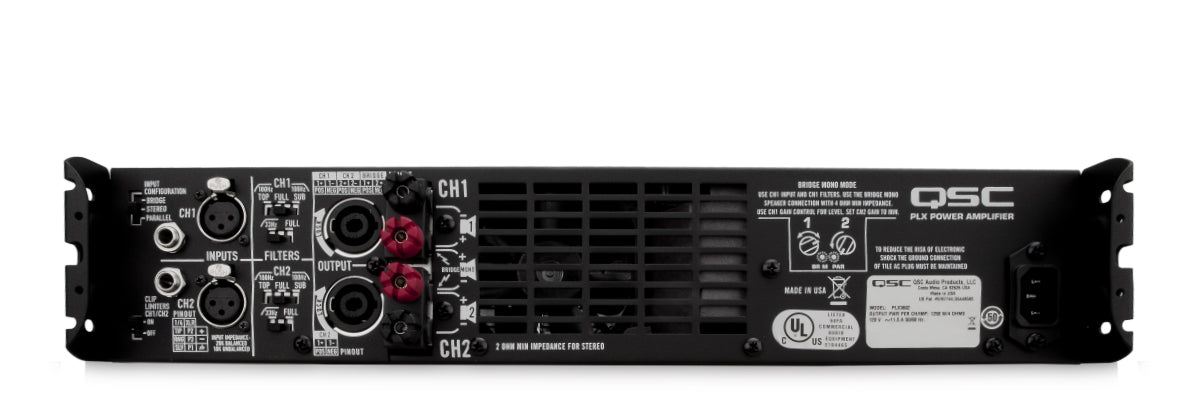

QSC PLX3602 Low-Z Power Amplifier

$1,499.99 inc. VAT

Features

  • Very light weight ("02" models, 21 lb / 9.5 kg, "04" models 13 lb / 5.9 kg).
  • Cooling design exhausts hot air out the front, keeping the rack cool. Flow-through heat sinks require no filters that could become clogged.
  • Front panel LED power, clip, -10 dB, and signal present indicators for system monitoring and troubleshooting. 02 models also feature bridge and parallel mode LED indicators.
  • Two Speakon® NL4 output connectors provide positive-locking speaker connections. Upper connector provides both channel outputs on all four poles (Channel 1: 1+, 1-; channel 2: 2+, 2-) for bridged mono or for single-cable connection to bi-amplified speakers.
  • 21-position front-panel gain controls for precise, repeatable amplifier adjustment.
  • Balanced XLR inputs with parallel TRS connectors accommodate all common input connectors and support loop-through operation.
  • Patented PowerLight power supply technology with other patents pending.

  PLX1104 (discont'd) PLX1804 (discont'd) PLX1802 PLX2502 PLX3102 PLX3602
Rated Power per Channel, Stereo Mode (both channels driven)*
8Ω FTC 20 Hz–20 kHz 0.05% THD 310 W 550 W 320 W 425 W 550 W 725 W
8Ω EIA 1 kHz 0.1% THD 325 W 600 W 330 W 450 W 600 W 775 W
4Ω FTC 20 Hz–20 kHz 0.05% THD 500 W 800 W 525 W 675 W 900 W 1100 W
4Ω EIA 1 kHz 0.1% THD 550 W 900 W 575 W 750 W 1000 W 1250 W
2Ω EIA 1 kHz 1% THD − − 900 W 1250 W 1550 W 1800 W
Rated Power, Bridge-Mono Mode*
8Ω20 Hz–20 kHz 0.1% THD − − 1100 W 1400 W 1900 W 2500 W
8Ω EIA 1 kHz 0.1% THD − − 1200 W 1500 W 2100 W 2600 W
4Ω EIA 1 kHz 1% THD − − 1800 W 2500 W 3100 W 3600 W
Signal to Noise (20 Hz–20 kHz) -106 dB -106 dB -107 dB -106 dB -107 dB -107 dB
Input Sensitivity at 8Ω 1.18 V rms 1.20 V rms 1.28 V rms 1.15 V rms 1.23 V rms 1.25 V rms
Maximum Voltage Gain 32.5 dB 35 dB 32 dB 34 dB 35 dB 36 dB
Output Circuitry Class AB 2-tier Class H Class AB 2-tier Class H 2-tier Class H 2-tier Class H
Power Requirements (1/8 power, pink noise at 4Ω) 8 A /120V 9.4 A /120V 8.7 A /120V 7.5 A /120V 9.5 A /120V 11.5 A /120V
Series-wide specifications
  04 MODELS (Discontinued) 02 MODELS
Distortion (SMPTE-IM) < 0.02% < 0.02%
Distortion (typical) - -
1/8 rated power, 20 Hz–20 kHz < 0.02% < 0.02%
Full rated power, 20 Hz–20 kHz < 0.02% < 0.02%
Damping Factor (8Ω) > 200 > 500
Input Impedance 10 kΩ unbalanced / 20 kΩ balanced 10 kΩ unbalanced / 20 kΩ balanced
Input Clipping 5.5 V rms (+15 dBu) 11 V rms (+21 dBu)
Cooling Variable-speed fan, rear-to-front air flow Variable-speed fan, rear-to-front air flow
Input Connectors, each channel 3-pin XLR and 1/4-inch TRS balanced, parallel 3-pin XLR and 1/4-inch TRS balanced, parallel
Output Connectors, each channel Two Neutrik NL4 Speakon®
Both channels available on upper NL4 connector 		Two Neutrik NL4 Speakon® and four touch-proof binding posts
Both channels available on upper NL4 connector
Amplifier Protection Full short circuit, open circuit, thermal, infrasonic, ultrasonic, and RF protection.
Stable into reactive or mismatched loads		 Full short circuit, open circuit, thermal, infrasonic, ultrasonic, and RF protection.
Stable into reactive or mismatched loads
Load Protection On/off muting, DC-fault power supply shutdown On/off muting, DC-fault power supply shutdown
Dimensions
Height
Width
89 mm / 3.5 in; 2 RU
483 mm / 19 in
89 mm / 3.5 in; 2 RU
483 mm / 19 in
Depth
—Rack mounting surface to rear
—Overall
227 mm / 8.95 in
279 mm / 11 in
326 mm / 12.8 in
379 mm / 14.875 in
Carton Dimensions (H×W×D) n/a 610 × 460 × 152 mm
24 × 18 × 6 in
Weight—Net 5.9 kg / 13 lb 9.5 kg / 21 lb
Weight—Shipping 8.2 kg / 18 lb 12.3 kg / 27 lb
Agency Approvals CE, FCC, cUL, UL CE, FCC, cUL, UL
