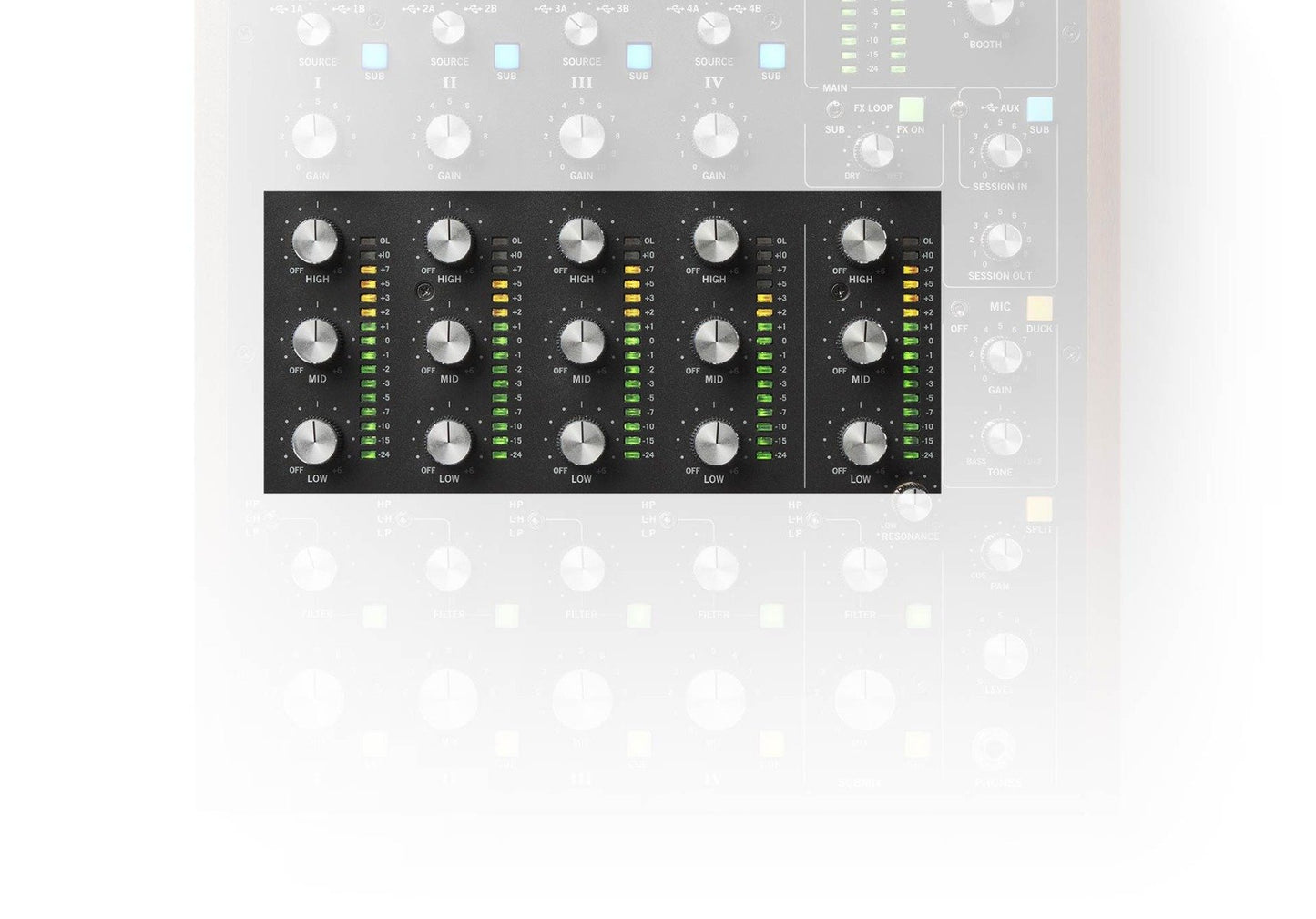

MP2015 is the best mixer produced by RANE - ever. There are no compromises in the design. The best sound, the best features, the best feel, and the ultimate in reliability and durability. Serato DJ Pro, Traktor & Virtual DJ compatible. Craft and mould your mix with powerful 3band Isolator EQ's with fully adjustable crossover points. Command frequency control with the variable resonance parameter sweepable filter control. Robust 4-channel Rotary Mixer with solid chassis and classic wooden design, pro XLR and TRS Outputs and AKM premium performance Audio 4 Pro delta sigma modulator converters.
Analog Inputs
Four Analog Deck Inputs: Each is Phono-CD-S/PDIF switchable
Analog Stereo RCA jacks: Phono (RIAA) or CD (line-level)
Phono Response: RIAA +0.1/-0.2 dB, Gain: 31 dB at 1 kHz, Butterworth 3rd-order Infrasonic (rumble) and 2nd-order Low-pass Filters
Max Phono Input: 126 mV
Max Line Input: 4 Vrms, all unbalanced inputs
Analog Aux Input: Line Level, stereo unbalanced RCA jacks
Session Analog Input: Line Level, stereo unbalanced RCA jacks
S/PDIF
Deck Input S/PDIF RCA jacks: Input 16-bit or 24-bit PCM only
Dynamic range of 128 dB with ultra low jitter and 16:1 SRC conversion range.
Session S/PDIF Input / Output: RCA jacks (Dynamic range of 128 dB)
Input 16-bit or 24-bit PCM only, sample Rate 16 kHz to 144 kHz
ADCs: 24-bit @ 44.1, 48, or 96 kHz
DACs: 24-bit @ 44.1, 48, or 96 kHz
Dynamic Range
Digital/USB Input to Line Output: 116 dB A-weighted
Line Input to Digital/USB Output: 116 dB A-weighted
Line Input to Line Output: 113 dB A-weighted
Digital Signal Processing: 32-bit floating point
USB Audio
Seven stereo record, five stereo playback, each port, 24-bit PCM @ 44.1 kHz, 48 kHz or 96 kHz.
Class-compliant, no driver needed for Mac OS X*.
ASIO driver provided for Windows 7 and higher.
*Firmware update required for support on macOS 10.12 Sierra and higher.
FlexFX: Stereo unbalanced ¼" TS (tip-sleeve) jacks, Send and Return.
Mic Input: Balanced ¼" TRS & XLR combo jack with Mic / Line switch and +48V Phantom Power switch.
Line Outputs
Main is on balanced XLR jacks
Booth is on balanced TRS 1/4" jacks
Session is on unbalanced RCA line level or S/PDIF digital RCA jacks
FlexFX Loop Send is unbalanced RCA jacks.
Frequency Response: 20 Hz to 20 kHz ±0.25 dB
Unbalanced jacks (Session & FlexFX): Max 4 Vrms
Balanced jacks (Main & Booth): Max 8 Vrms
THD+N: 0.0009%
Internal Universal Power Supply: 100 to 240 VAC, Max 20 W, 50 Hz to 60 Hz.
