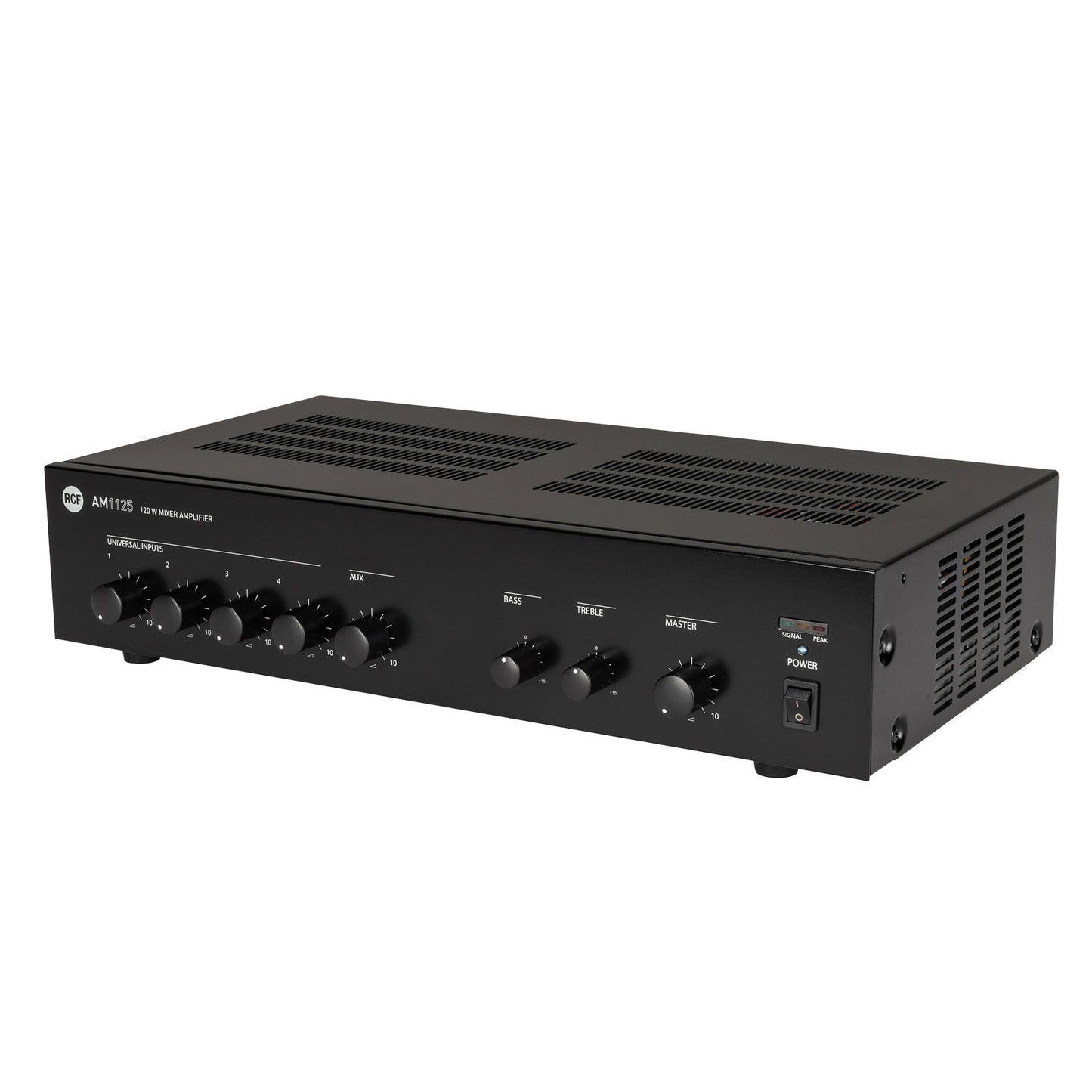

RCF AM1125 5 Channel Digital Mixer/Amplifier (70V/4 ohm)

SKU: AM1125
$499.00 inc. VAT
-27% $679.00 $499.00 inc. VAT
AM 1125
MIXER AMPLIFIER
  • 120W 4-INPUTS MIXER-AMPLIFIER
  • 4 XLR INPUT
  • VOX FACILITY AND PHANTOM POWER SUPPLY ON INPUT 1
  • AUDIO INPUT 3 ALSO WITH DUAL RCA CONNECTOR
  • 120W 4-inputs Mixer-Amplifier
  •  4 XLR input
  •  VOX facility and Phantom power supply on input 1
  •  Audio input 3 also with dual RCA connector
  •  Aux input on dual RCA connector
  •  DUCKING Control to adjust the Aux in level
  •  Audio output (with RCA connector) that sends the same signal routed to the internal amplifier
  •  Audio input (with RCA connector) to connect an external device directly to the internal power amplifier
  •  AM 1125 Input for the secondary 24 V dc power supply (batteries)
  •  Amplifier output to loudspeakers, available as 100 / 70 V constant voltage line and Low impedance (min. 4 O)
AM 1125 is a 120W mixer-amplifier having 4 audio inputs. Audio input 1 has Phantom power supply and get the priority over the other audio inputs through an external command or automatically thanks to the ‘VOX’ circuit. Dual RCA connectors can be used to link stereo (unbalanced) sound sources (e.g. CD – MP3 players, tuners, etc.). The amplifier output is available either for low impedance loudspeakers (min. 4 O) or 100 – 70 V constant voltage line (for loudspeakers having 100 – 70 V transformers). It can also be powered by batteries (voltage: 24 V dc), in order to ensure its proper operation even when the mains supply is unavailable.
SPECIFICATIONS
Amplifier specifications
NUMBER OF CHANNELS:
1

POWER OUTPUT PER CHANNEL (@ 4 OHM):
120 W RMS

POWER OUTPUT (HI-Z):
120 W RMS

FREQUENCY RESPONSE (-3DB):
60 Hz ÷ 15 kHz

DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER:
<1.5 %
Input section
BALANCED:
4

GENERAL PURPOSE INPUTS (GPI):
1

LINE CONNECTORS:
RCA

LINE INPUTS:
2

MIC+LINE CONNECTORS:
RCA, XLR

MIC+LINE INPUTS:
4

MIC+LINE PHANTOM:
18 V DC

VOX: (MIC+LINE):
Yes

MONO:
5

PAGING CONNECTORS:
XLR

STEREO:
2

TOTAL NUMBER OF INPUTS:
6

UNBALANCED:
6
Output section
SIGNAL OUTPUT NUMBER:
1

SIGNAL OUTPUT CONNECTORS:
RCA

POWER OUTPUT CONNECTORS:
Euroblock
Processing
TONE CONTROLS:
Yes
Controls
CONFIGURATION:
Front panel
Protections
COOLING:
Convection

SHORT CIRCUIT:
Yes

THERMAL:
Yes

DC DELAY:
Yes

FUSES:
Yes
Power requirement
OPERATING VOLTAGE:
220-240/115 V~ 50/60Hz

VOLTAGE SELECTION:
External

DC POWER:
Yes

DC POWER VALUE:
24 V

POWER CONSUMPTION:
350 W
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal

COLOR:
Black

RACK MOUNTING:
19", 2U
Size
DEPTH:
385 mm / 15.16 inches

HEIGHT:
88 mm / 3.46 inches

WEIGHT:
7.3 kg / 16.09 lbs

WIDTH:
431 mm / 16.97 inches
Shipping informations
PACKAGE DEPTH:
380 mm / 14.96 inches

PACKAGE HEIGHT:
165 mm / 6.5 inches

PACKAGE WEIGHT:
8.5 kg / 18.74 lbs

PACKAGE WIDTH:
500 mm / 19.69 inches
