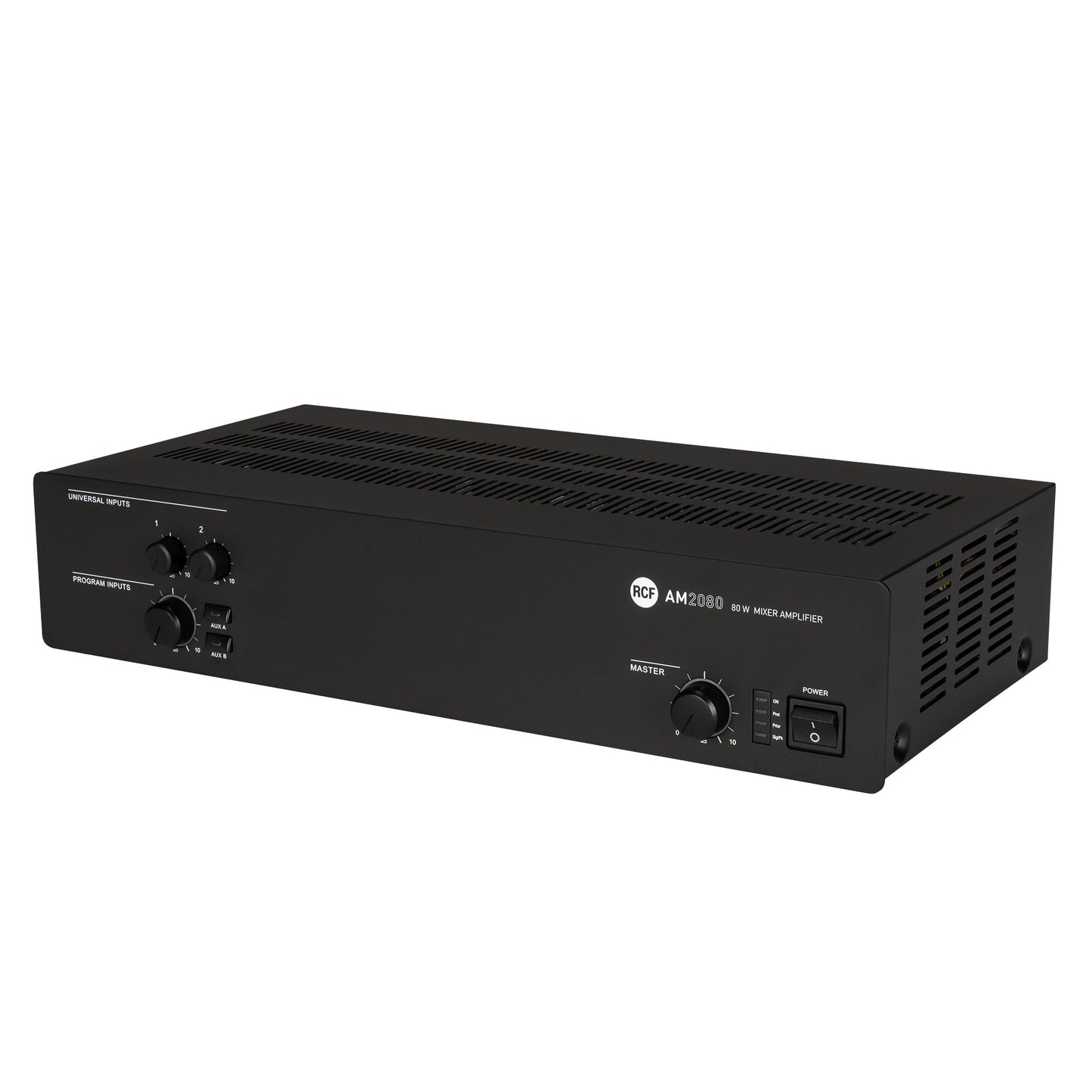

RCF AM2080 2 Input Digital Mixer/ Amplifier (70V/4 ohm with paging)

SKU: AM2080
$579.00 inc. VAT
-21% $729.00 $579.00 inc. VAT
AM 2080
MIXER AMPLIFIER
  • FULL DIGITAL TECHNOLOGY MIXER AMPLIFIER 80 W RMS
  • 100 V - 70 V AND 4 OHM OUTPUTS
  • 2 UNIVERSAL INPUTS WITH PHANTOM FACILITY ON SCREW TERMINAL CONNECTIONS
  • XLR CONNECTOR ON INPUT 1
  • Full digital technology Mixer Amplifier 80 W RMS
  • 100 V - 70 V and 4 Ohm outputs
  • 2 universal inputs with phantom facility on screw terminal connections
  • XLR connector on input 1
  • RJ45 connectors on input 2 for connection to BM3001 microphone
  • Configurable Priority settings, VOX facility on input 1
  • Selectable aux inputs with two keys on the front panel for music source
  • Aux inputs with volume and tone controls
  • Music On Hold and PRE outputs
  • Digital Chime and Siren built-in generator
AM 2080 is a mixer-amplifiers with 2 mic-line audio inputs on removable connectors (the first input also has an XLR socket) and 2 aux inputs for music sources (e.g. CD players, tuners, etc.). The nominal power: is a 80 W amplifier. The amplifier output is available either for low impedance loudspeakers or 100 – 70 V constant voltage line.
SPECIFICATIONS
Amplifier specifications
NUMBER OF CHANNELS:
1

POWER OUTPUT PER CHANNEL (@ 4 OHM):
80 W RMS

POWER OUTPUT (HI-Z):
80 W RMS

FREQUENCY RESPONSE (-3DB):
50 Hz ÷ 16 Hz

SIGNAL/NOISE RATE (”A” WEIGHTED):
>80 dB

DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER:
<0.3 %
Input section
BALANCED:
5

LINE CONNECTORS:
RCA

LINE INPUTS:
2

MIC+LINE CONNECTORS:
Euroblock, XLR

MIC+LINE INPUTS:
2

MIC+LINE PHANTOM:
30 V DC

VOX: (MIC+LINE):
Yes

MONO:
4

PAGING COMMAND:
Contact

PAGING CONNECTORS:
RJ45

PAGING INPUTS:
1

STEREO:
2

TOTAL NUMBER OF INPUTS:
5

UNBALANCED:
1
Output section
SIGNAL OUTPUT NUMBER:
2

SIGNAL OUTPUT CONNECTORS:
RCA

POWER OUTPUT CONNECTORS:
Euroblock
Processing
TONE CONTROLS:
Yes

HIGH-PASS FILTER:
150 Hz
Controls
CONFIGURATION:
DIP switch, Front panel

PRIORITY:
Yes

MUSIC ON HOLD:
Yes

CHIME TONE:
Yes
Protections
COOLING:
Convection

SHORT CIRCUIT:
Yes

THERMAL:
Yes

DC DELAY:
Yes

FUSES:
Yes
Power requirement
OPERATING VOLTAGE:
220-240/115 V~ 50/60Hz

VOLTAGE SELECTION:
Internal

POWER CONSUMPTION:
160 W
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal

COLOR:
Black

RACK MOUNTING:
19", 2U
Size
DEPTH:
230 mm / 9.06 inches

HEIGHT:
88 mm / 3.46 inches

WEIGHT:
3.77 kg / 8.31 lbs

WIDTH:
442 mm / 17.4 inches
Shipping informations
PACKAGE DEPTH:
500 mm / 19.69 inches

PACKAGE HEIGHT:
200 mm / 7.87 inches

PACKAGE WEIGHT:
5.38 kg / 11.86 lbs

PACKAGE WIDTH:
330 mm / 12.99 inches
