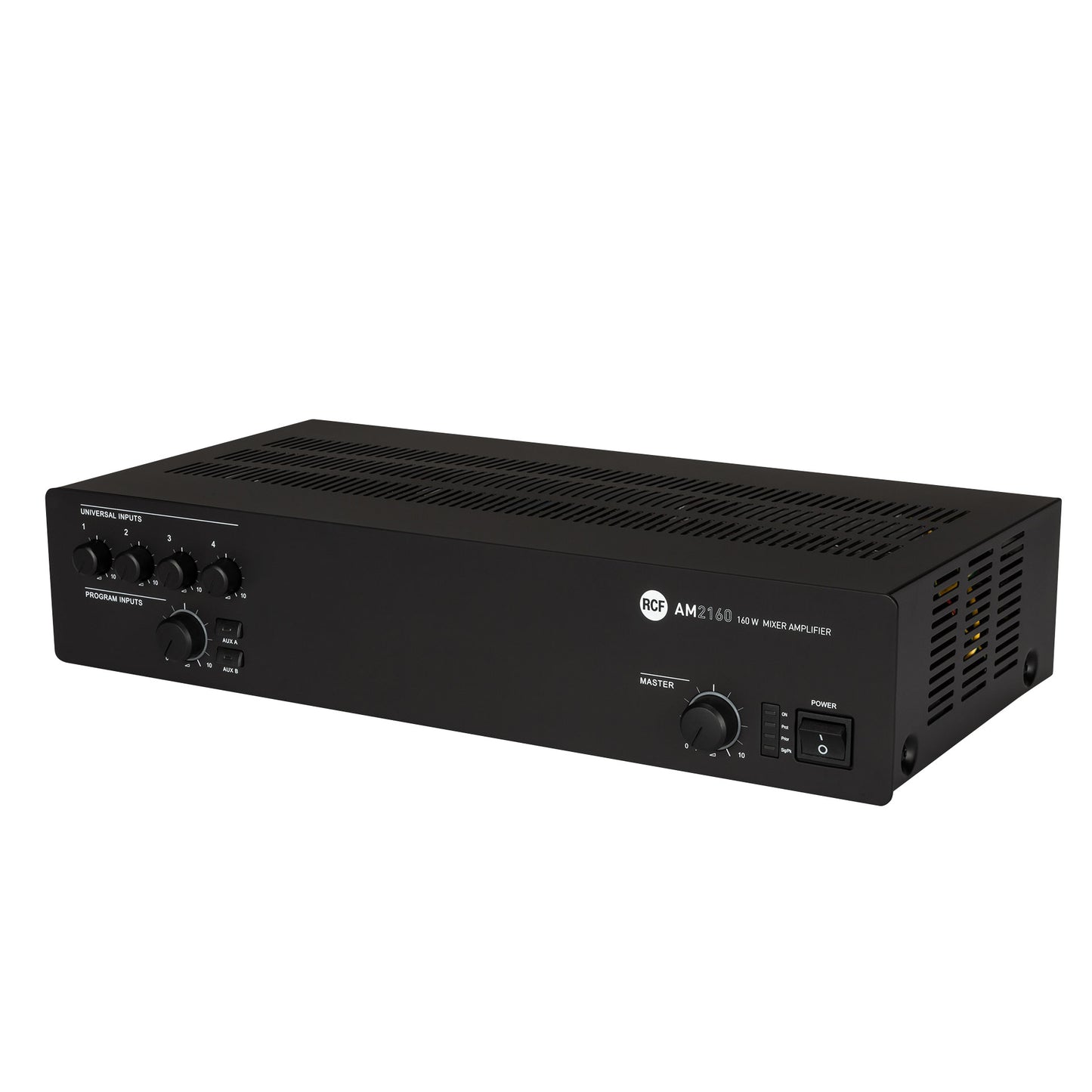

RCF AM2160 4 Input Digital Mixer/ Amplifier (70V/4 ohm)

SKU: AM2160
$899.00 inc. VAT
-18% $1,099.00 $899.00 inc. VAT
AM 2160
MIXER AMPLIFIER
  • FULL DIGITAL TECHNOLOGY MIXER AMPLIFIER 160 W RMS
  • 100 V - 70 V AND 4 OHM OUTPUTS
  • 4 UNIVERSAL INPUTS WITH PHANTOM FACILITY ON SCREW TERMINAL CONNECTIONS
  • PRESENCE CONTROL AND PER-CHANNEL HIGH-PASS FILTERS
  • Full digital technology Mixer Amplifier 160 W RMS
  • 100 V - 70 V and 4 Ohm outputs
  • 4 universal inputs with phantom facility on screw terminal connections
  • Presence Control and per-channel High-Pass filters
  • XLR connector on input 1
  • RJ45 connectors on input 2 and 3 for connection to BM3001 microphone
  • Configurable Priority settings, VOX facility on input 1
  • Selectable aux inputs with two keys on the front panel for music source
  • Aux inputs with volume and tone controls
  • Music On Hold and PRE outputs
AM 2160 is a mixer-amplifiers with 4 mic-line audio inputs on removable connectors (the first input also has an XLR socket) and 2 aux inputs for music sources (e.g. CD players, tuners, etc.). 160 W nominal output power available either for low impedance loudspeakers or 100 – 70 V constant voltage line.
SPECIFICATIONS
Amplifier specifications
AMPLIFIER CLASS:
D

NUMBER OF CHANNELS:
1

POWER OUTPUT PER CHANNEL (@ 4 OHM):
160 W RMS

POWER OUTPUT (HI-Z):
160 W RMS

FREQUENCY RESPONSE (-3DB):
50 Hz ÷ 14 kHz

DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER:
<0.3 %%
Input section
BALANCED:
7

GENERAL PURPOSE INPUTS (GPI):
2

LINE CONNECTORS:
RCA

LINE INPUTS:
2

MIC+LINE CONNECTORS:
Euroblock, XLR

MIC+LINE INPUTS:
4

MIC+LINE PHANTOM:
32 V DC

VOX: (MIC+LINE):
Yes

MONO:
7

PAGING COMMAND:
Contact

PAGING CONNECTORS:
RJ45

PAGING INPUTS:
2

STEREO:
2

TOTAL NUMBER OF INPUTS:
8

UNBALANCED:
2
Output section
SIGNAL OUTPUT NUMBER:
2

SIGNAL OUTPUT CONNECTORS:
RCA

POWER OUTPUT CONNECTORS:
Euroblock
Processing
TONE CONTROLS:
Yes

HIGH-PASS FILTER:
150 Hz
Controls
CONFIGURATION:
DIP switch, Front panel

PRIORITY:
Yes

MUSIC ON HOLD:
Yes

CHIME TONE:
Yes
Protections
COOLING:
Convection

SHORT CIRCUIT:
Yes

THERMAL:
Yes

DC DELAY:
Yes

FUSES:
Yes
Power requirement
OPERATING VOLTAGE:
220-240/115 V~ 50/60HzV ~ Hz

VOLTAGE SELECTION:
Internal

POWER CONSUMPTION:
350 W
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal

COLOR:
Black

RACK MOUNTING:
19", 2U
Size
DEPTH:
230 mm / 9.06 inches

HEIGHT:
88 mm / 3.46 inches

WEIGHT:
5.4 kg / 11.9 lbs

WIDTH:
442 mm / 17.4 inches
Shipping informations
PACKAGE DEPTH:
330 mm / 12.99 inches

PACKAGE HEIGHT:
200 mm / 7.87 inches

PACKAGE WEIGHT:
6.45 kg / 14.22 lbs

PACKAGE WIDTH:
500 mm / 19.69 inches
