Home » RCF ART-708A-MK4 Active 1400W 2-way 8" Powered Speaker
RCF

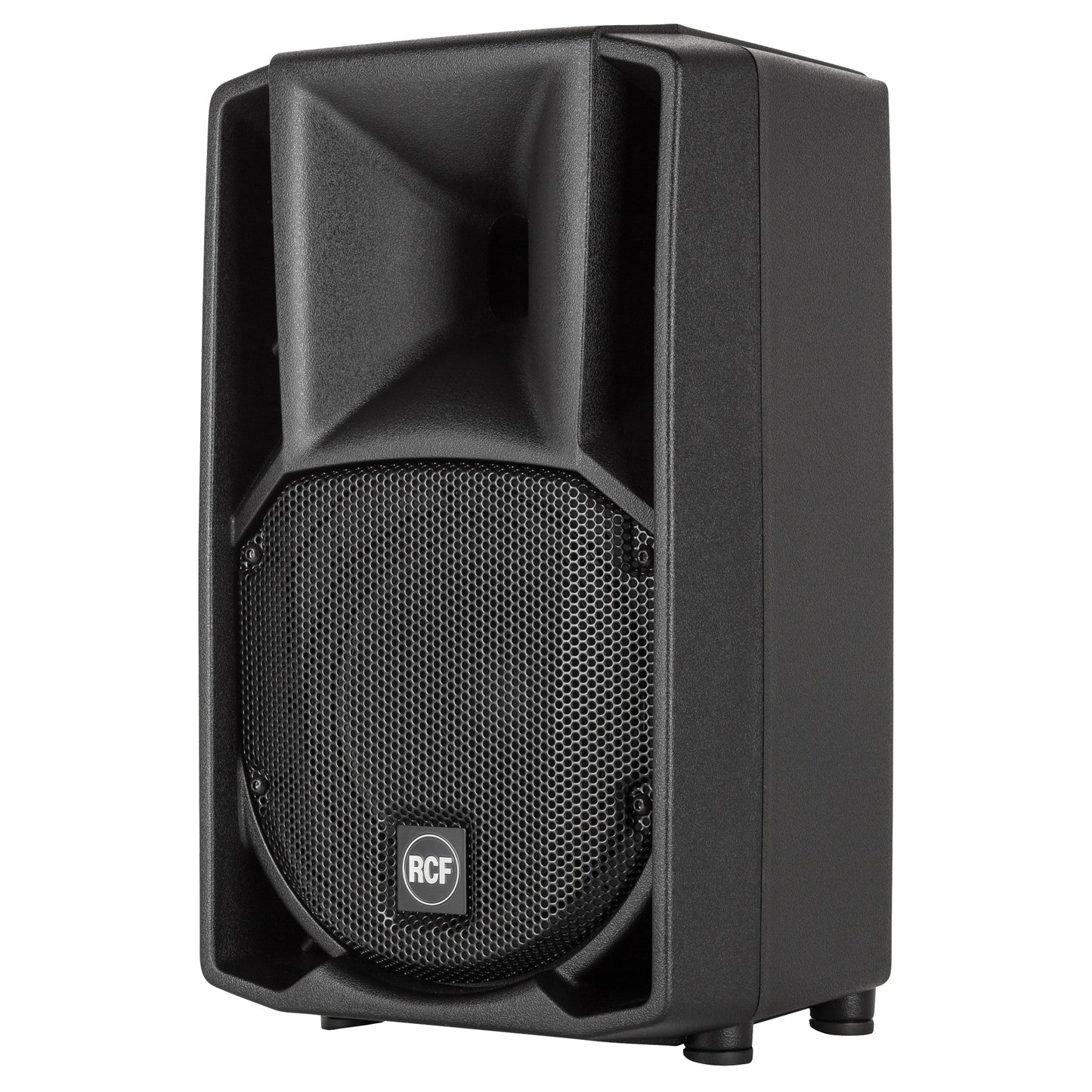

RCF ART-708A-MK4 Active 1400W 2-way 8" Powered Speaker

SKU: ART-708A-MK4
$549.00 inc. VAT
-25% $729.00 $549.00 inc. VAT
ART 708-A MK4
ACTIVE TWO-WAY SPEAKER
  • 127 DB MAX SPL
  • 800 WATT 2-WAY PEAK POWER
  • 1" COMPRESSION DRIVER, 1.0" V.C.
  • FIRPHASE TECHNOLOGY


  • 127 dB Max SPL
  • 800 WATT 2-way peak power
  • 90 x 70, Wide dispersion constant directivity horn
  • Innovative DSP Processing
  • 1" Compression Driver, 1.0" v.c.
  • 8" Woofer
  • FiRPHASE Technology
ART 708-A MK4 is a unique product in its category. The 1.0" compression driver offersunique vocal clarity and sound projection. The 8” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 800 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
60 Hz ÷ 20000 Hz

MAX SPL @ 1M:
127 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
70°
Transducers
COMPRESSION DRIVER:
1 x 1.0'', 1.0'' v.c

WOOFER:
8'', 2.0'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu

MIC. INPUT SENSITIVITY:
-32 dBu
Processor section
CROSSOVER FREQUENCIES:
1600 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Volume, Boost, Mic/Line
Power section
TOTAL POWER:
800 W Peak, 400 W RMS

HIGH FREQUENCIES:
200 W Peak, 100 W RMS

LOW FREQUENCIES:
600 W Peak, 300 W RMS

COOLING:
Convection

CONNECTIONS:
VDE
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite

HARDWARE:
2 x M10

HANDLES:
1 Top

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
480 mm / 18.9 inches

WIDTH:
291 mm / 11.46 inches

DEPTH:
276 mm / 10.87 inches

WEIGHT:
10.4 kg / 22.93 lbs
Shipping informations
PACKAGE HEIGHT:
520 mm / 20.47 inches

PACKAGE WIDTH:
331 mm / 13.03 inches

PACKAGE DEPTH:
346 mm / 13.62 inches

PACKAGE WEIGHT:
12.2 kg / 26.9 lbs
