Home » RCF ART-712A-MK4 Active 1400W 2-way 12" Powered Speaker
RCF

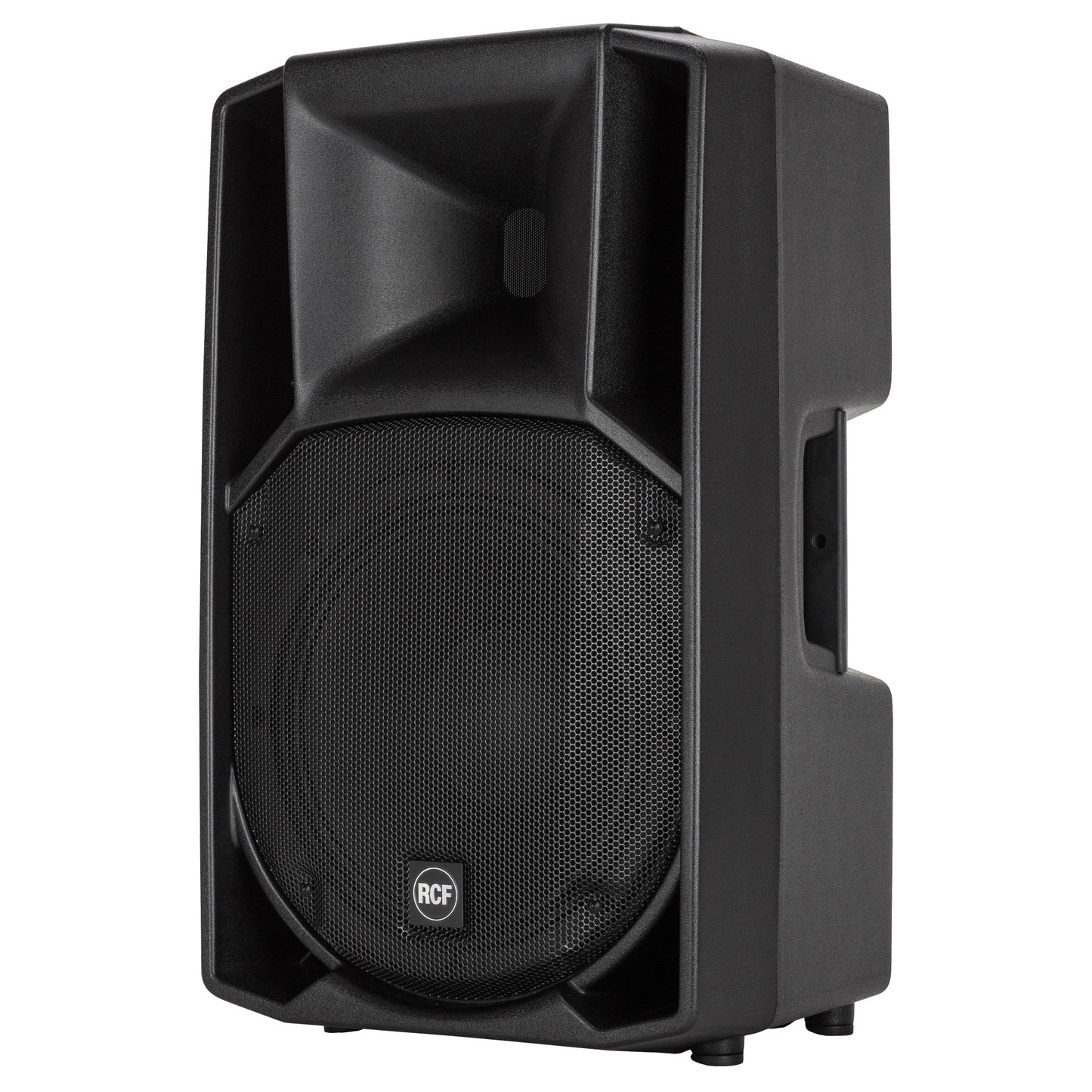

RCF ART-712A-MK4 Active 1400W 2-way 12" Powered Speaker

SKU: ART-712A-MK4
$699.00 inc. VAT
-30% $999.00 $699.00 inc. VAT
ART 712-A MK4
ACTIVE TWO-WAY SPEAKER
  • 1400 WATT 2-WAY PEAK POWER
  • 129 DB MAX SPL
  • 1" COMPRESSION DRIVER, 1.75" V.C.
  • FIRPHASE TECHNOLOGY


  • 129 dB Max SPL
  • 1400 WATT 2-way peak power
  • Innovative DSP Processing
  • 1" Compression Driver, 1.75" v.c.
  • 12" Woofer
  • 90°x60°, wide dispersion constant directivity horn
  • FiRPHASE Technology
ART 712-A MK4 is a unique product in its category. The professional compression driver with custom designed dome and high power voice coil offers unique vocal clarity and sound projection. The 12” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
50 Hz ÷ 20000 Hz

MAX SPL @ 1M:
129 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
1 x 1.0'', 1.75'' v.c

WOOFER:
12'', 2.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu

MIC. INPUT SENSITIVITY:
-32 dBu
Processor section
CROSSOVER FREQUENCIES:
1600 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Volume, Boost, Mic/Line
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

COOLING:
Convection

CONNECTIONS:
VDE
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite

HARDWARE:
2 x M10

HANDLES:
1 Top, 2 Side

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
637 mm / 25.08 inches

WIDTH:
387 mm / 15.24 inches

DEPTH:
363 mm / 14.29 inches

WEIGHT:
17.8 kg / 39.24 lbs
Shipping informations
PACKAGE HEIGHT:
680 mm / 26.77 inches

PACKAGE WIDTH:
440 mm / 17.32 inches

PACKAGE DEPTH:
420 mm / 16.54 inches

PACKAGE WEIGHT:
20.6 kg / 45.42 lbs
