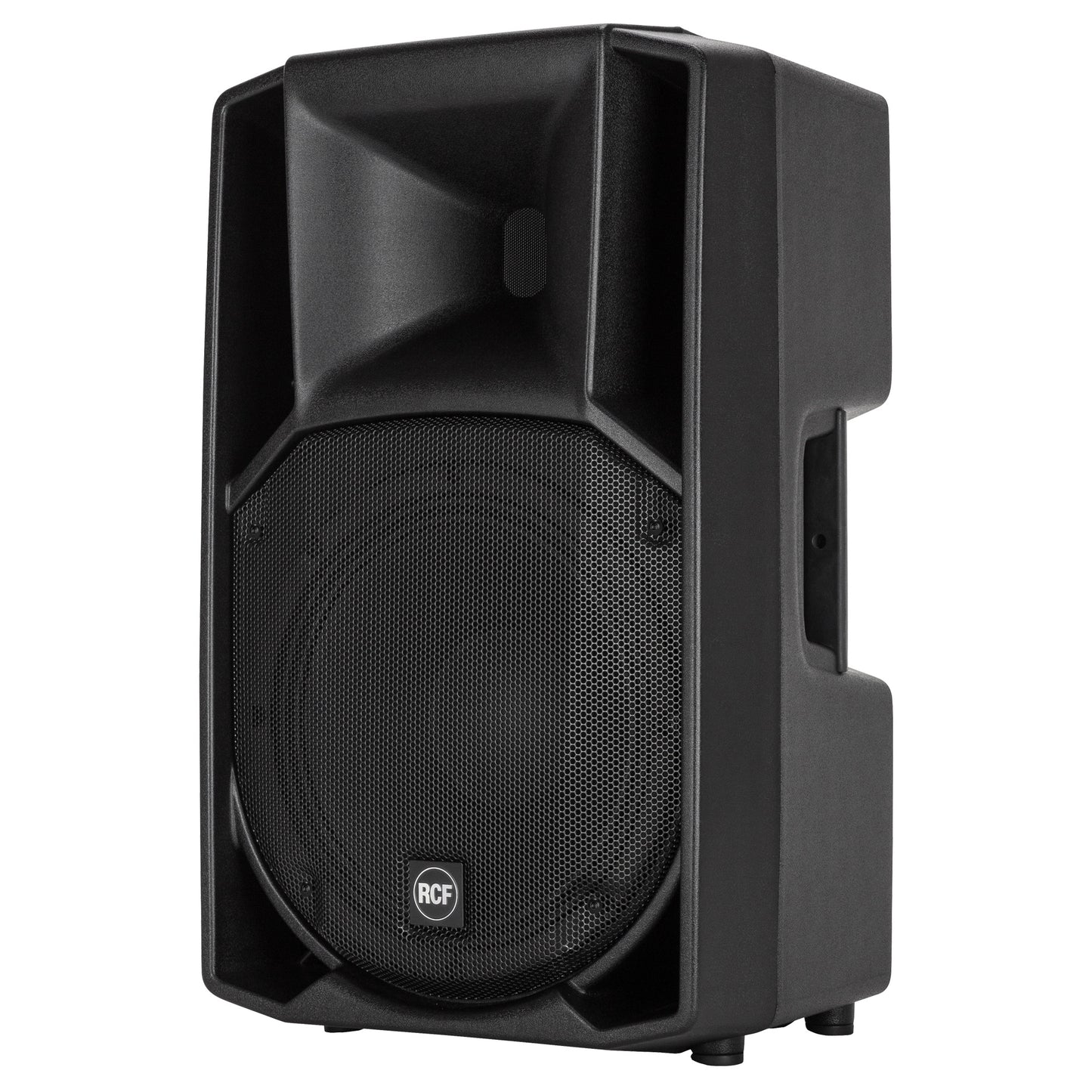

RCF ART-732A-MK4 Active 1400W 2-way 12" Powered Speaker with 3" HF Driver

SKU: ART-732A-MK4
$999.00 inc. VAT
-17% $1,199.00 $999.00 inc. VAT
ART 732-A MK4
ACTIVE TWO-WAY SPEAKER
  • 1400 WATT 2-WAY PEAK POWER
  • 131 DB MAX SPL
  • 1.4" TITANIUM COMPRESSION DRIVER, 3.0" V.C. NEODIMIUM
  • FIRPHASE TECHNOLOGY


  • 131 dB Max SPL
  • Innovative DSP Processing
  • 1.4" Titanium Compression Driver, 3.0" v.c. Neodimium
  • 12" Woofer
  • 700 Hz crossover point for perfect vocal reproduction
  • 90°x60°, wide dispersion constant directivity horn
  • FiRPHASE Technology
  • 1400 WATT 2-way peak power
The ART 732-A is a unique speaker in its category. The titanium dome, 3.0" voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 15” neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
50 Hz ÷ 20000 Hz

MAX SPL @ 1M:
131 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
1 x 1.4'' neo, 3.0'' v.c

WOOFER:
12'', 2.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu

MIC. INPUT SENSITIVITY:
-32 dBu
Processor section
CROSSOVER FREQUENCIES:
700 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Volume, Boost, Mic/Line
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

COOLING:
Convection

CONNECTIONS:
VDE
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite

HARDWARE:
2 x M10

HANDLES:
1 Top, 2 Side

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
637 mm / 25.08 inches

WIDTH:
384 mm / 15.12 inches

DEPTH:
363 mm / 14.29 inches

WEIGHT:
17.8 kg / 39.24 lbs
Shipping informations
PACKAGE HEIGHT:
680 mm / 26.77 inches

PACKAGE WIDTH:
440 mm / 17.32 inches

PACKAGE DEPTH:
420 mm / 16.54 inches

PACKAGE WEIGHT:
20.6 kg / 45.42 lbs
