Home » RCF ART-735A-MK4 Active 1400W 2-way 15" Powered Speaker with 3" HF Driver
RCF

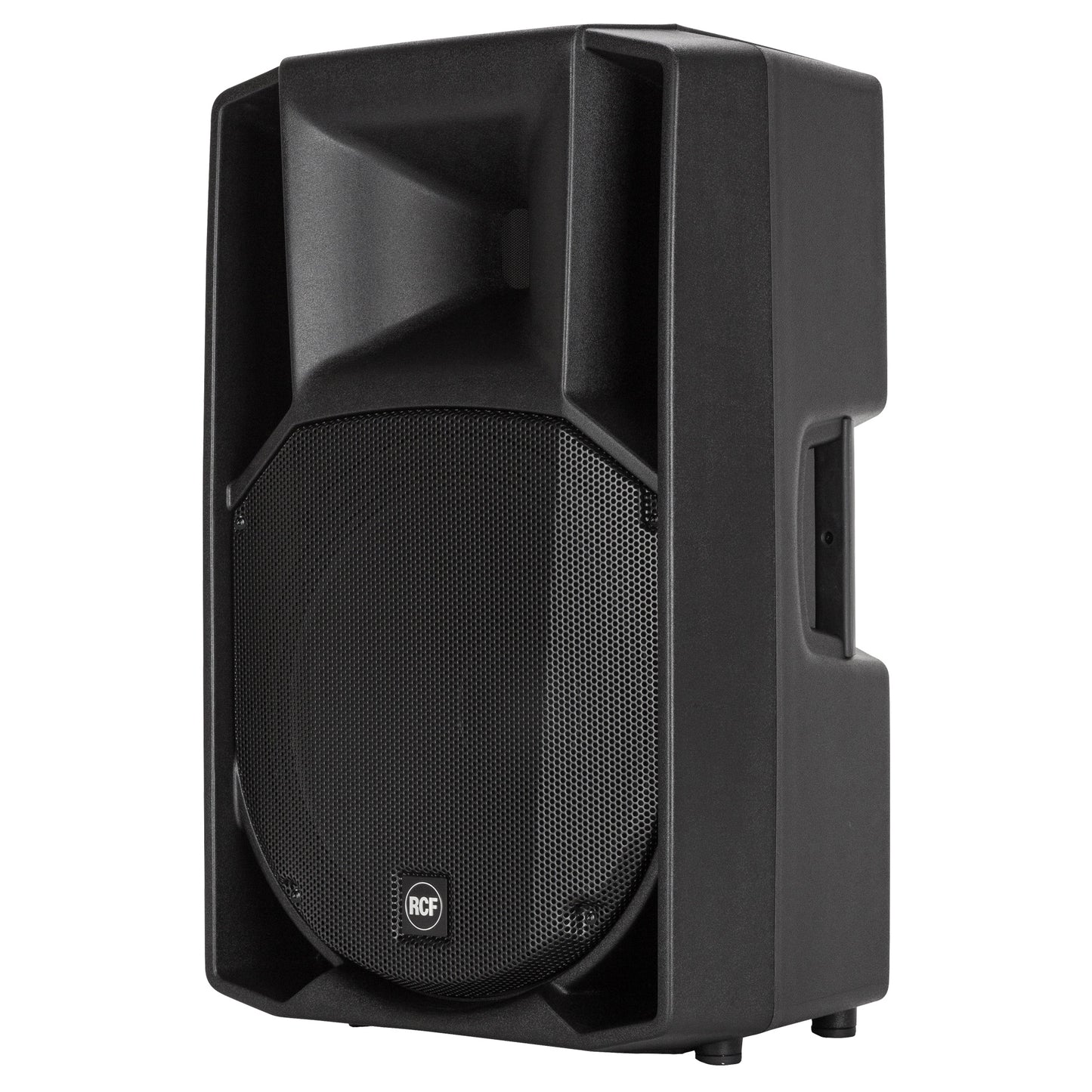

RCF ART-735A-MK4 Active 1400W 2-way 15" Powered Speaker with 3" HF Driver

SKU: ART-735A-MK4
$1,099.00 inc. VAT
-21% $1,399.00 $1,099.00 inc. VAT
ART 735-A MK4
ACTIVE TWO-WAY SPEAKER
  • 1400 WATT 2-WAY PEAK POWER
  • 132 DB MAX SPL
  • 1.4" TITANIUM COMPRESSION DRIVER, 3.0" V.C. NEODIMIUM
  • FIRPHASE TECHNOLOGY


  • 132 dB Max SPL
  • 1400 WATT 2-way peak power
  • Innovative DSP Processing
  • 1.4" Titanium Compression Driver, 3.0" v.c. Neodimium
  • 15" Woofer
  • 800 Hz crossover point for perfect vocal reproduction
  • 90°x60°, wide dispersion constant directivity horn
  • FiRPHASE Technology
The ART 735-A MK4 is a unique speaker in its category. The titanium dome, 3.0" voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 15” neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz

MAX SPL @ 1M:
132 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
1 x 1.4'' neo, 3.0'' v.c

WOOFER:
15'', 3.0'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu

MIC. INPUT SENSITIVITY:
-32 dBu
Processor section
CROSSOVER FREQUENCIES:
800 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Volume, Boost, Mic/Line
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

COOLING:
Convection

CONNECTIONS:
VDE
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite

HARDWARE:
2 x M10

HANDLES:
1 Top, 2 Side

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
708 mm / 27.87 inches

WIDTH:
437 mm / 17.2 inches

DEPTH:
389 mm / 15.31 inches

WEIGHT:
21.4 kg / 47.18 lbs
Shipping informations
PACKAGE HEIGHT:
750 mm / 29.53 inches

PACKAGE WIDTH:
500 mm / 19.69 inches

PACKAGE DEPTH:
440 mm / 17.32 inches

PACKAGE WEIGHT:
24.4 kg / 53.79 lbs
