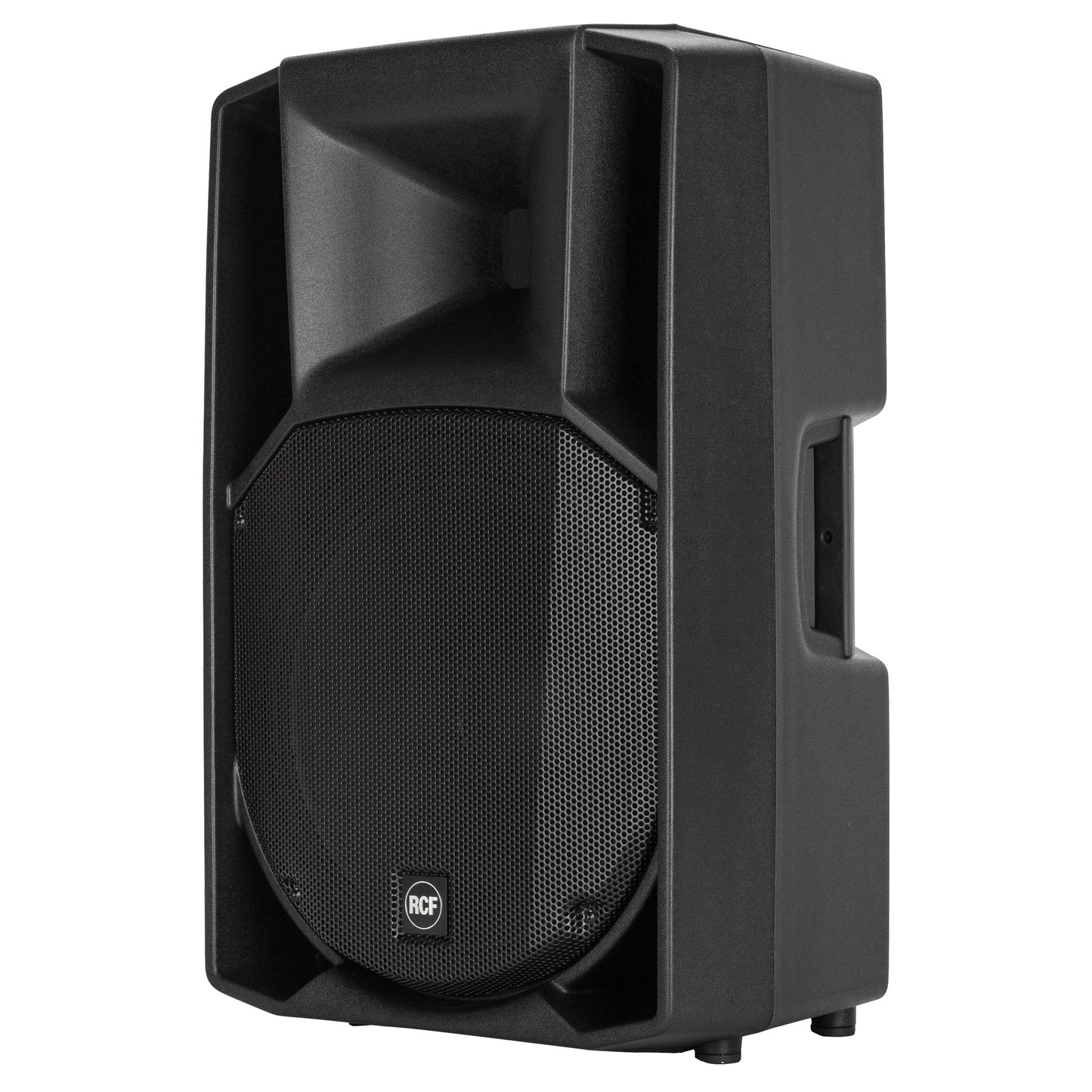

RCF ART-745A-MK4 Active 1400W 2-way 15" Powered Speaker with 4" Neo HF Driver

SKU: ART-745A-MK4
$1,699.00 inc. VAT
-24% $2,249.00 $1,699.00 inc. VAT
ART 745-A MK4
ACTIVE TWO-WAY SPEAKER
  • 1400 WATT 2-WAY PEAK POWER
  • 133 DB MAX SPL
  • 1.4" TITANIUM COMPRESSION DRIVER, 4.0" V.C. NEODIMIUM
  • FIRPHASE TECHNOLOGY


  • 133 dB Max SPL
  • 1400 WATT 2-way peak power
  • Innovative DSP Processing
  • 1.4" Titanium Compression Driver, 4.0" v.c. Neodimium
  • 15" Neodimium Woofer
  • 650 Hz crossover point for perfect vocal reproduction
  • 90°x60°, wide dispersion constant directivity horn
  • FiRPHASE Technology
The ART 745-A MK4 is the flagship speaker in its category. The titanium dome, 4.0” voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 15” neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz

MAX SPL @ 1M:
133 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
1 x 1.4'' neo, 4.0'' v.c

WOOFER:
15'' neo, 3.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu

MIC. INPUT SENSITIVITY:
-32 dBu
Processor section
CROSSOVER FREQUENCIES:
650 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Volume, Boost, Mic/Line
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

COOLING:
Convection
