Home » RCF ART-945A Active 2100W 2-2way 15" Powered Speaker with 4" Neo HF Driver
RCF

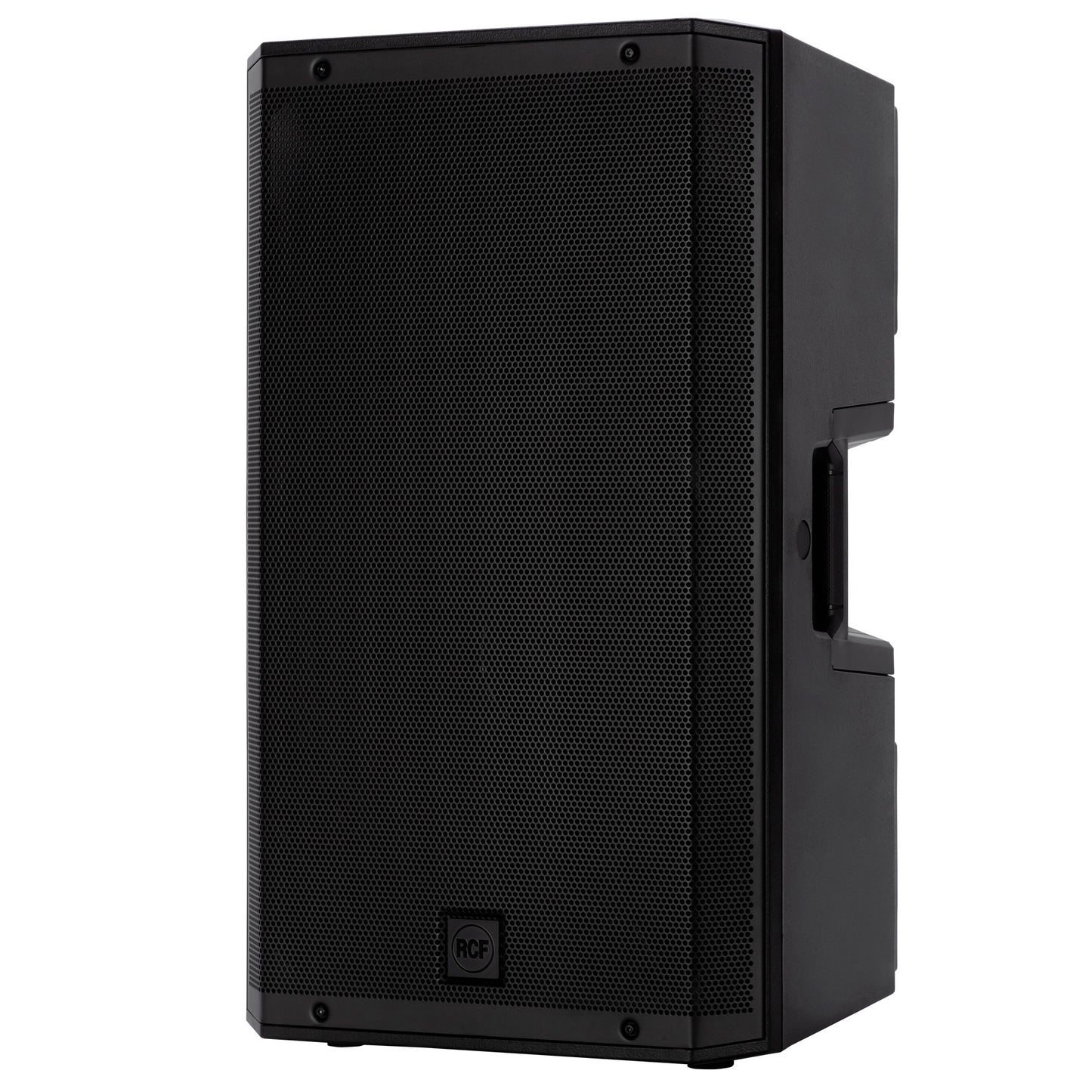

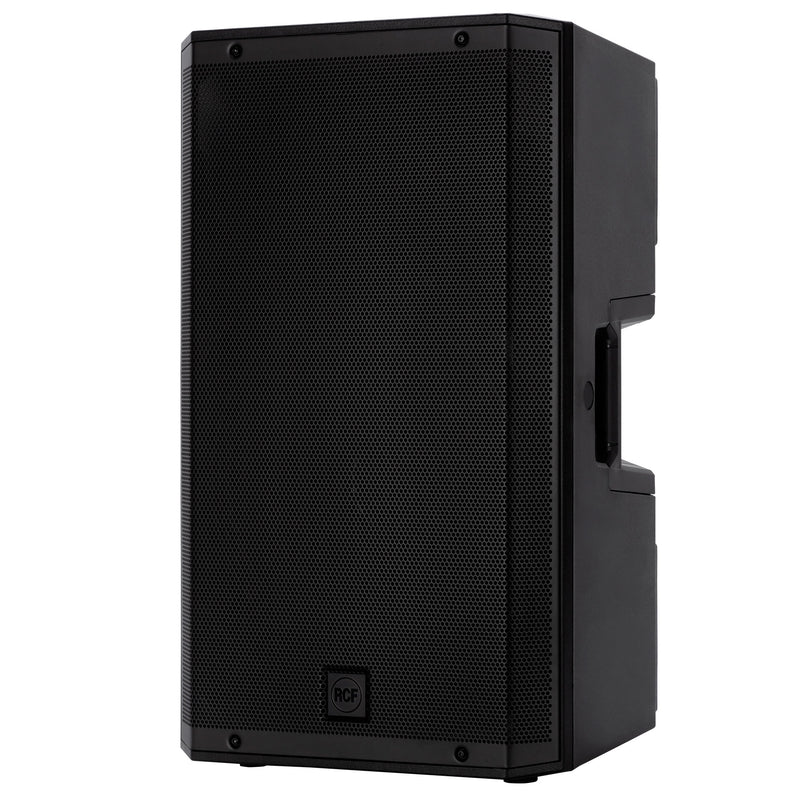

RCF ART-945A Active 2100W 2-2way 15" Powered Speaker with 4" Neo HF Driver

SKU: ART-945A
$1,799.00 inc. VAT
-20% $2,249.00 $1,799.00 inc. VAT
ART 945-A
PROFESSIONAL ACTIVE SPEAKER
  • UP TO 135 DB SOUND PRESSURE LEVEL
  • 2100W CLASS-D BI-AMPLIFICATION
  • 45-20000 HZ LINEAR FREQUENCY RESPONSE
  • 4" TITANIUM/NEODYMIUM COMPRESSION DRIVER


  • Up to 135 dB Sound Pressure Level
  • 2100W Class-D Bi-Amplification
  • 45-20000 Hz linear frequency response
  • 4" Titanium/Neodymium Compression Driver
  • 15" Neodymium Woofer
  • FiRPHASE zero degrees phase technology
  • Bass Motion Control woofer excursion management
ART 945-A is masterfully engineered to deliver stellar audio performance and versatility for intensive audio applications. The combination of neodymium transducers - 4" titanium compression driver, 15" woofer - two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with up to 135 dB SPL, distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown, the ART 945-A packs high-performance and reliability in a compact enclosure. Designed to be the most flexible loudspeaker in its class, it also features multiple rigging points for fixed installation. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute clarity and deep, powerful bass response. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.

SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz

MAX SPL @ 1M:
135 dB

HORIZONTAL COVERAGE ANGLE:
100°

VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
1 x 1.4'' neo, 4.0'' v.c

WOOFER:
15'' neo, 3.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
650Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Linear, Boost, Stage, Volume
Power section
TOTAL POWER:
2100 W Peak

HIGH FREQUENCIES:
700 W Peak

LOW FREQUENCIES:
1400 W Peak

COOLING:
Convection

CONNECTIONS:
Powercon TRUE1 TOP IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite

HARDWARE:
1 x M10 Top, 1 x M10 each side

HANDLES:
1 Top , 1 each side

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
717 mm / 28.23 inches

WIDTH:
415 mm / 16.34 inches

DEPTH:
410 mm / 16.14 inches

WEIGHT:
22.1 kg / 48.72 lbs
Shipping informations
PACKAGE HEIGHT:
760 mm / 29.92 inches

PACKAGE WIDTH:
475 mm / 18.7 inches

PACKAGE DEPTH:
470 mm / 18.5 inches

PACKAGE WEIGHT:
24.3 kg / 53.57 lbs
