RCF

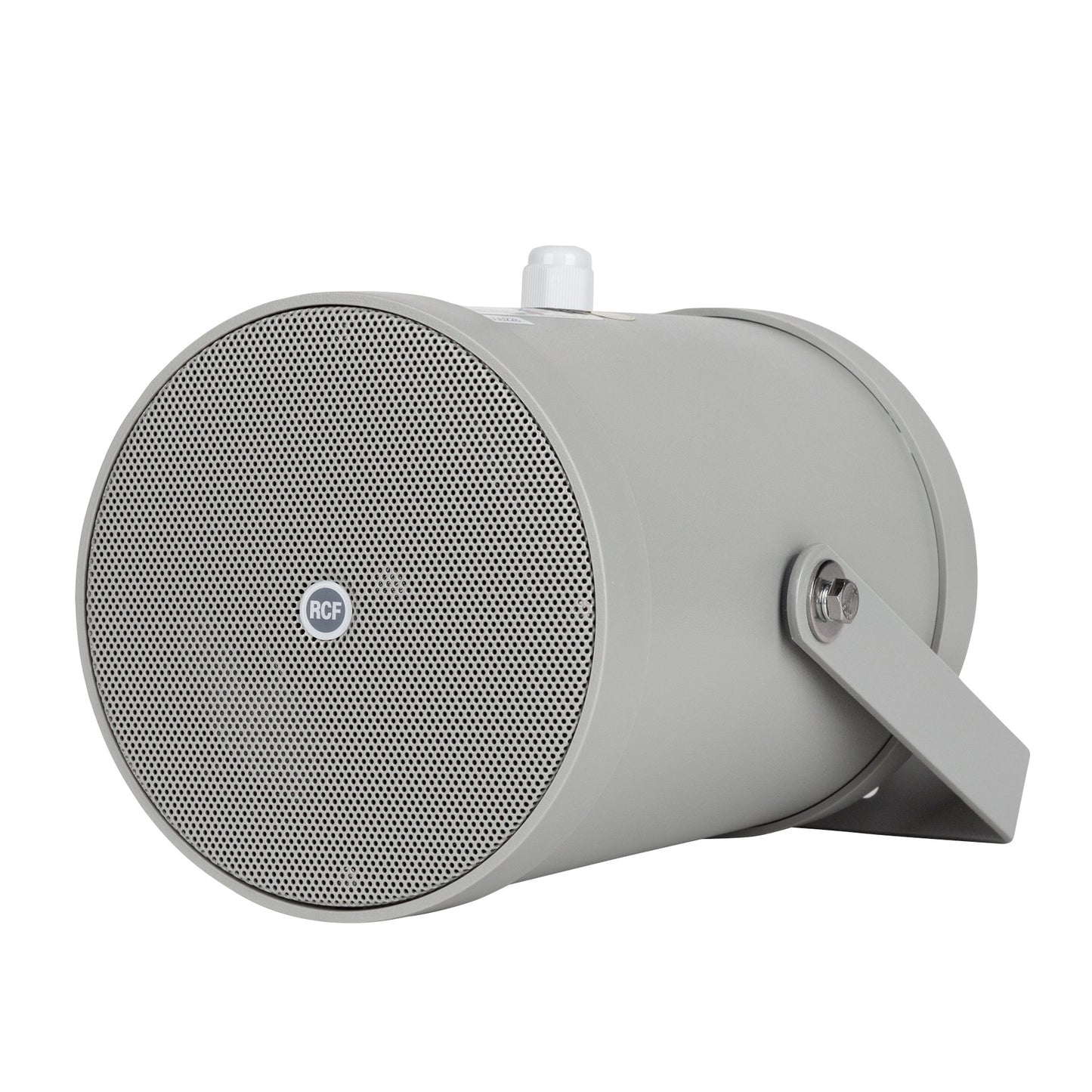

RCF BD42 Passive Bi-Directional Wall/Ceiling Speaker (4 ohm/70V)

SKU: BD42
Regular price $99.00 inc. VAT
Regular price -23% $129.00 Sale price $99.00 inc. VAT
BD 42
INDOOR / OUTDOOR BIDIRECTIONAL SOUND PROJECTOR
  • IT'S IDEAL FOR TRAIN STATIONS, UNDERGROUND STATIONS, CAR PARKS, FACTORIES, WAREHOUSES, AND PA SYSTEMS IN GENERAL
  • BIDIRECTIONAL SOUND PROJECTOR WITH DOUBLE LOUDSPEAKER, CHARACTERIZED BY HIGH ACOUSTIC PERFORMANCE, EXCELLENT DESIGN AND COMPACT DIMENSIONS
  • IP55 PROTECTION, SUITABLE FOR OUTDOOR USE
  • 2 X 5" (130 MM) DIAMETER EXTENDED RANGE TWIN-CONE LOUDSPEAKER
  • It's ideal for train stations, underground stations, car parks, factories, warehouses, and PA systems in general
  • Bidirectional sound projector with double loudspeaker, characterized by high acoustic performance, excellent design and compact dimensions
  • IP55 protection, suitable for outdoor use
  • 2 x 5" (130 mm) diameter extended range twin-cone loudspeaker
  • Built-in multi-tapped transformer for 100 V constant voltage connection
  • Equipped with aluminium "U" bracket. Body in ABS grey RAL 7035 with metal grill
BD 42 sound projectors are elegant and suitable for sound distribution in very large and noisy environments (e.g. railway stations, underground, car parks, factories, warehouses, shopping centres, etc..).
BD 42 sound projectors can be installed both indoor and outdoor (IP code: IP 55). These have a cylindrical plastic body with an U bracket support for the installation and include: 2 dual cone loudspeakers (externally protected by grilles). A transformer for 100 V constant voltage lines, with the possibility to set the power during the installation. A low impedance input (4 ?) is available.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
130 Hz ÷ 15000 Hz

MAX SPL @ 1M:
102 dB

SYSTEM SENSITIVITY:
91 dB
Power section
NOMINAL IMPEDANCE (OHM):
4 ohm

POWER HANDLING:
12 W RMS

PEAK POWER HANDLING:
48 W PEAK

RECOMMENDED AMPLIFIER:
24 W
Transducers
FULLRANGE:
2 x 5.0''
Input/Output section
INPUT CONNECTORS:
Cable

OUTPUT CONNECTORS:
Cable

CONSTANT VOLTAGE TRANSFORMER:
100 V

POWER SELECTION 1 (100 V):
12 W - 833 ohm

POWER SELECTION 2 (100 V):
6 W - 1667 ohm
Standard compliance
IP PROTECTION GRADE:
IP 55

CE MARKING:
Yes
Physical specifications
COLOR:
Grey - RAL 7035

HARDWARE:
U bracket

GRILLE:
Aluminium

CABINET/CASE MATERIAL:
ABS
Size
DEPTH:
200 mm / 7.87 inches

DIAMETER:
138 mm / 5.43 inches

WEIGHT:
1.66 kg / 3.66 lbs
Shipping informations
PACKAGE WEIGHT:
1.95 kg / 4.3 lbs

PACKAGE DEPTH:
190 mm / 7.48 inches

PACKAGE WIDTH:
160 mm / 6.3 inches

PACKAGE HEIGHT:
290 mm / 11.42 inches
