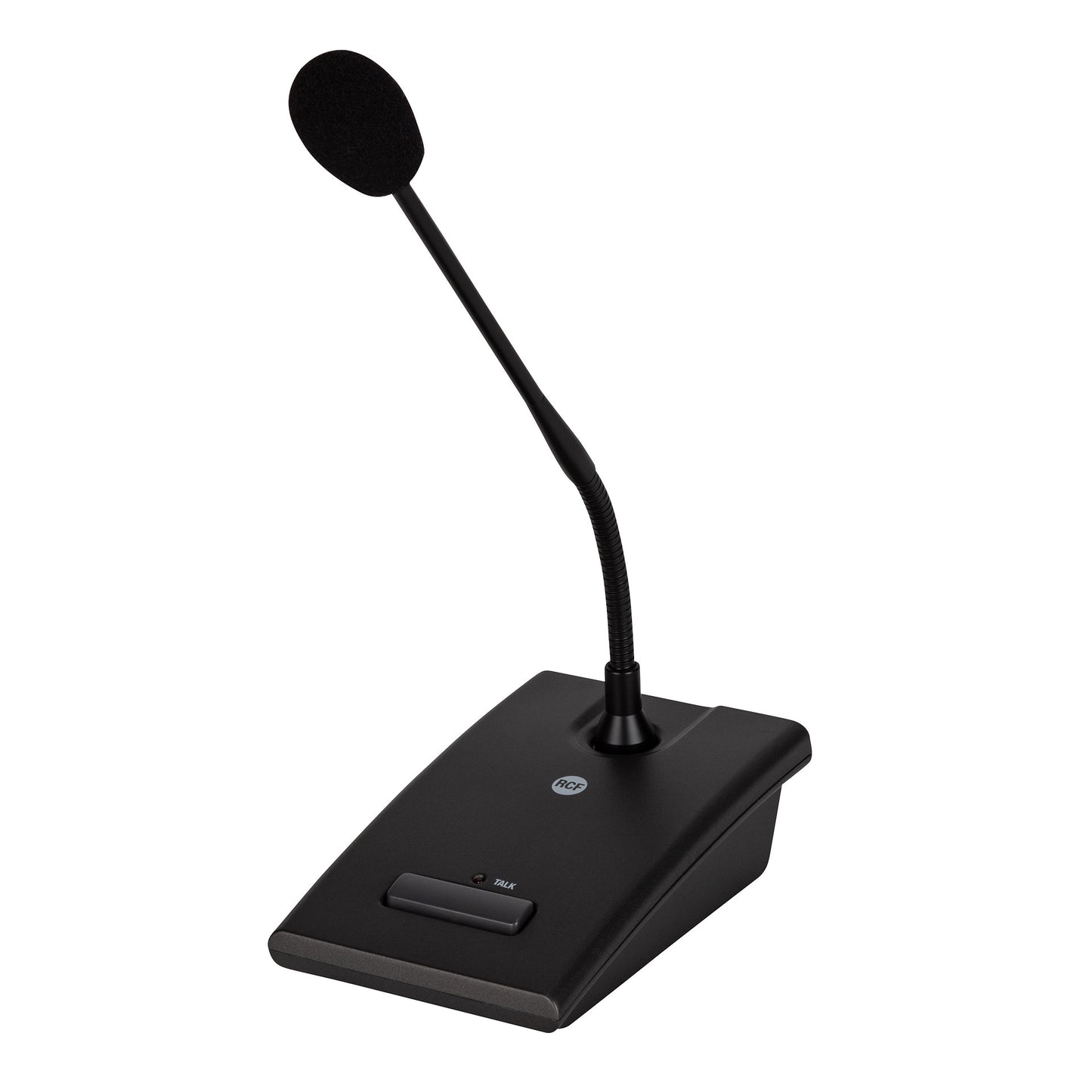

RCF BM3001 Desktop Paging Mic for ES-3160 ( Includes 5M RJ-45 cable)

SKU: BM3001
$199.00 inc. VAT
-20% $249.00 $199.00 inc. VAT
BM 3001
PAGING MICROPHONE
  • PLASTIC BODY WITH 300 MM GOOSENECK
  • PTT BUTTON WITH LED
  • POWER SUPPLIED BY 'PHANTOM' (18 ÷ 48 V DC)
  • READY FOR DIRECT CONNECTION TO AMPLIFIERS ES 3080, ES 3160-II, ES 3323-II, AM 2160, AM 2320, AM 2080, UP 2161, UP 2321, UP 2081.
  • Plastic body with 300 mm gooseneck
  • PTT button with LED
  • Power supplied by 'Phantom' (18 ÷ 48 V dc)
  • Ready for direct connection to amplifiers ES 3080, ES 3160-II, ES 3323-II, AM 2160, AM 2320, AM 2080, UP 2161, UP 2321, UP 2081.
  • Chime activation on ES 3080, ES 3160-II, ES 3323-II, AM 2160, AM 2320, AM 2080
  • Polyurethane foam wind screen
  • 5 m connecting cable (with RJ 45 plugs) included
The BM 3001 Desktop Paging microphone allows to send announces toward a single zone and it is the ideal complement for the ES 3160 and ES 3323 receiver amplifier. It can also be used with other mixer-preamplifiers equipped Phantom Power (18 V - 48 V).
SPECIFICATIONS
Microphone specifications
TYPE:
Desktop paging microphone with electret capsule

DIRECTIVITY:
Cardioid

FREQUENCY RESPONCE (-3DB):
50 Hz ÷ 18 kHz

MINIMUM LOAD IMPEDANCE (OHM):
470.00 ohm

NOMINAL OUTPUT VOLTAGE @3.3 KOHM (MV RMS):
100.00 mV RMS

PHANTOM POWER:
18 V DC - 48 V DC

PHANTOM POWER:
Yes
Console specifications
CONSOLE TYPE:
Paging

GENERAL CALL:
Yes

NUMBER OF ZONES:
1

LED INDICATORS:
Yes
Power requirement
POWER CONSUMPTION (W):
2.80 mA
Connections
CONNECTORS:
RJ45
Functionalities
SMART PTT:
Yes
Accessories
CABLE INCLUDED:
Yes

CABLE LENGTH (M):
5
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Plastic

COLOR:
Grey
Size
DEPTH:
159 mm / 6.26 inches

HEIGHT:
48 mm / 1.89 inches

WEIGHT:
0.73 kg / 1.61 lbs

WIDTH:
100 mm / 3.94 inches
Shipping informations
PACKAGE DEPTH:
129 mm / 5.08 inches

PACKAGE HEIGHT:
144 mm / 5.67 inches

PACKAGE WEIGHT:
1.18 kg / 2.6 lbs

PACKAGE WIDTH:
329 mm / 12.95 inches
