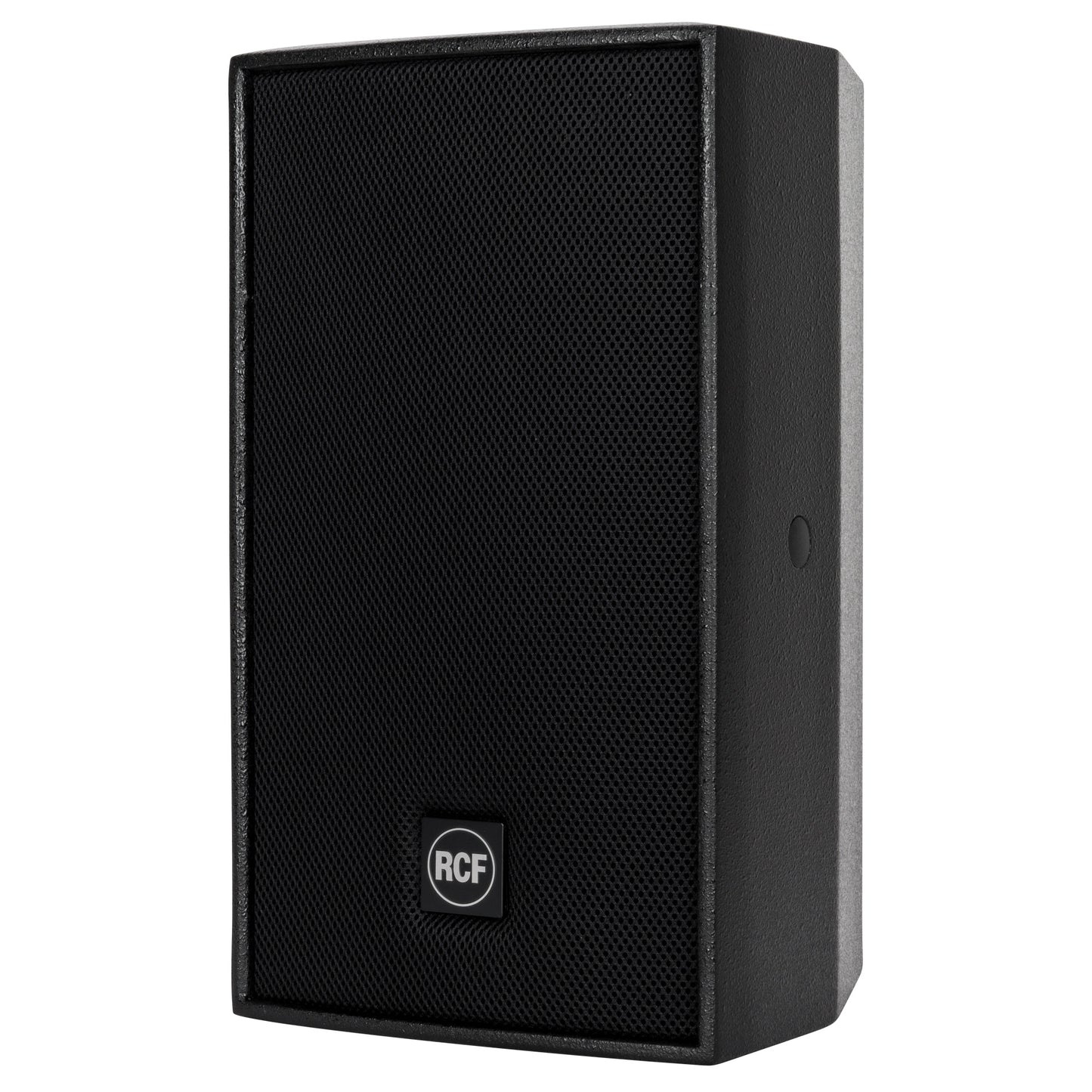

RCF C3108-126 Passive 8" 2-way Speaker

SKU: C3108-126
$999.00 inc. VAT
-20% $1,249.00 $999.00 inc. VAT
C 3108-126
TWO-WAY PASSIVE SPEAKER
  • 120°X 60° CMD (CONSTANT MATCHING DESIGN) CONSTANT DIRECTIVITY HORN
  • ROTATABLE HORN SYSTEM FOR HORIZONTAL CABINET MOUNTING APPLICATIONS
  • HF DRIVER AMCDP (ACTIVE MOSFET COMPRESSION DRIVER PROTECTION)
  • LICC (LOW IMPEDANCE COMPENSATED CROSSOVER) NETWORK
  • 120°x 60° CMD (Constant Matching Design) constant directivity horn
  • Rotatable Horn System for horizontal cabinet mounting applications
  • HF driver AMCDP (Active Mosfet Compression Driver Protection)
  • LICC (Low Impedance Compensated Crossover) network
  • 8 Suspension points
  • Omnimount™ 75 Plate fixing positions on rear of cabinet
The C3108-126 is a full range extremely versatile wide-dispersion, low profile, two-way loudspeaker system for near field applications. Its compact size makes it ideal for low visibility side wall mounting. The high-frequency section is a constant directivity horn loaded to a 1” compression driver with a 1.5” diaphragm assembly for smooth, wide dispersion. The low-frequency transducer is an 8” woofer with a 2” voice coil.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
70 Hz ÷ 20000 Hz

MAX SPL @ 1M:
126 dB

HORIZONTAL COVERAGE ANGLE:
120°

VERTICAL COVERAGE ANGLE:
60°

DIRECTIVITY INDEX Q:
9

SYSTEM SENSITIVITY:
95 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
300 W RMS

PEAK POWER HANDLING:
1200 W PEAK

RECOMMENDED AMPLIFIER:
600 W

PROTECTIONS:
Dynamic active mosfet

CROSSOVER FREQUENCIES:
2000 Hz
Transducers
COMPRESSION DRIVER:
1.0'', 1.5'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
25 W AES, 50 W PEAK

SENSITIVITY (DB, 1W @ 1M):
106 dB, 1W @ 1m

WOOFER:
8'', 2.0'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
200 W AES, 400 W PEAK

SENSITIVITY (DB, 1W @ 1M):
94 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Speakon® NL4

OUTPUT CONNECTORS:
Speakon® NL4
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black

HARDWARE:
6 x M8 (rear), 2 x M10 (side), multiplates (top and bottom)

POLE MOUNT/CAP:
Yes

GRILLE:
Steel with robust double mesh polyester clothing

CABINET/CASE MATERIAL:
Baltic birch plywood
Size
WIDTH:
242 mm / 9.53 inches

DEPTH:
263 mm / 10.35 inches

HEIGHT:
427 mm / 16.81 inches

WEIGHT:
12 kg / 26.46 lbs
Shipping informations
PACKAGE WEIGHT:
13.5 kg / 29.76 lbs

PACKAGE DEPTH:
364 mm / 14.33 inches

PACKAGE WIDTH:
329 mm / 12.95 inches

PACKAGE HEIGHT:
494 mm / 19.45 inches
