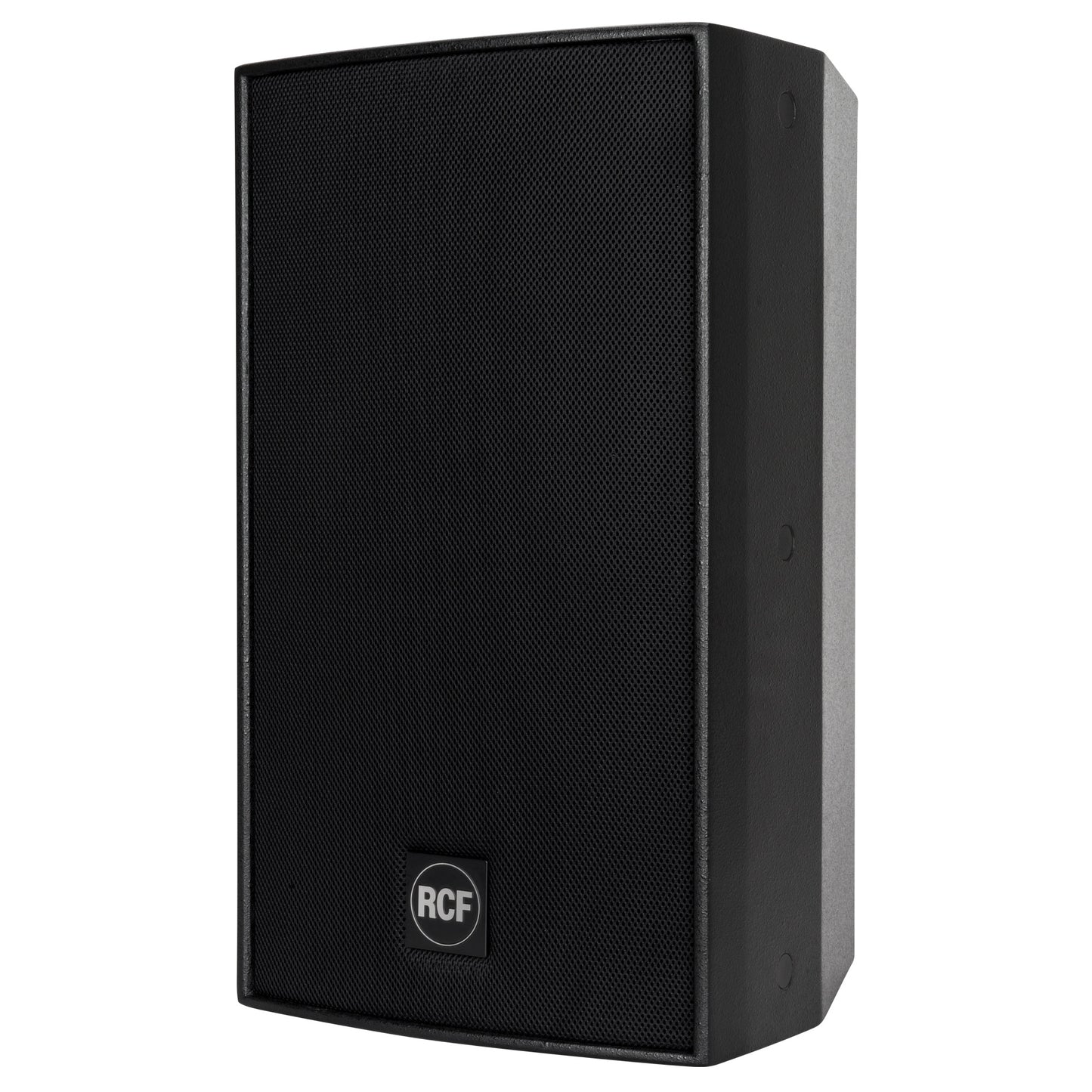

RCF C5212-66 Passive 12" 2-way Speaker

SKU: C5212-66
$1,849.00 inc. VAT
-22% $2,369.00 $1,849.00 inc. VAT
C 5212-66
TWO-WAY PASSIVE SPEAKER
  • 1.4" COMPRESSION DRIVER WITH 2,5" DIAPHRAGM ASSEMBLY
  • 15" WOOFER WITH 3" VOICE COIL
  • 60° X 60° CMD (COVERAGE MATCHING DESIGN) CONSTANT DIRECTIVITY HORN
  • HF DRIVER AMCDP (ACTIVE MOSFET COMPRESSION DRIVER PROTECTION)
  • 60° x 60° CMD (Coverage Matching Design) constant directivity horn
  • 1.4" compression driver with 2,5" diaphragm assembly
  • 15" woofer with 3" voice coil
  • Dual-function design: built in passive crossover or external bi-amp
  • Rotatable Horn System for horizontal cabinet mounting applications
  • HF driver AMCDP (Active Mosfet Compression Driver Protection)
  • LICC (Low Impedance Compensated Crossover) network
  • 14 Suspension points (M10)
  • 35 mm standard internal pole mount
The C5215-66 is a full range extremely versatile controlled narrow dispersion two-way loudspeaker system for medium throw applications. The high-frequency section is a constant directivity horn loaded to a 1.4” neodymium compression driver with a 2.5” diaphragm assembly for smooth, controlled dispersion. The 60° x 60° horn design offers higher sensitivity for longer distance applications. The low-frequency transducer is a 15” woofer with a 3” voice coil. The crossover is easily bypassed for bi-amp via a recessed changeover switch.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
54 Hz ÷ 20000 Hz

MAX SPL @ 1M:
133 dB

HORIZONTAL COVERAGE ANGLE:
60°

VERTICAL COVERAGE ANGLE:
60°

DIRECTIVITY INDEX Q:
16

SYSTEM SENSITIVITY:
100 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
500 W RMS

PEAK POWER HANDLING:
2000 W PEAK

RECOMMENDED AMPLIFIER:
1000 W

PROTECTIONS:
Dynamic active mosfet

CROSSOVER FREQUENCIES:
1200 Hz
Transducers
COMPRESSION DRIVER:
1.4'', 2.5'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
100 W AES, 200 W PEAK

SENSITIVITY (DB, 1W @ 1M):
111 dB, 1W @ 1m

WOOFER:
12'', 3.0'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
400 W AES, 800 W PEAK

SENSITIVITY (DB, 1W @ 1M):
98 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Speakon® NL4

OUTPUT CONNECTORS:
Speakon® NL4
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black

HARDWARE:
14 x M10, multiplates (top and bottom)

POLE MOUNT/CAP:
Yes

GRILLE:
Steel with robust double mesh polyester clothing

CABINET/CASE MATERIAL:
Baltic birch plywood
Size
WIDTH:
360 mm / 14.17 inches

DEPTH:
390 mm / 15.35 inches

HEIGHT:
630 mm / 24.8 inches

WEIGHT:
30 kg / 66.14 lbs
Shipping informations
PACKAGE WEIGHT:
32.8 kg / 72.31 lbs

PACKAGE DEPTH:
464 mm / 18.27 inches

PACKAGE WIDTH:
514 mm / 20.24 inches

PACKAGE HEIGHT:
714 mm / 28.11 inches
