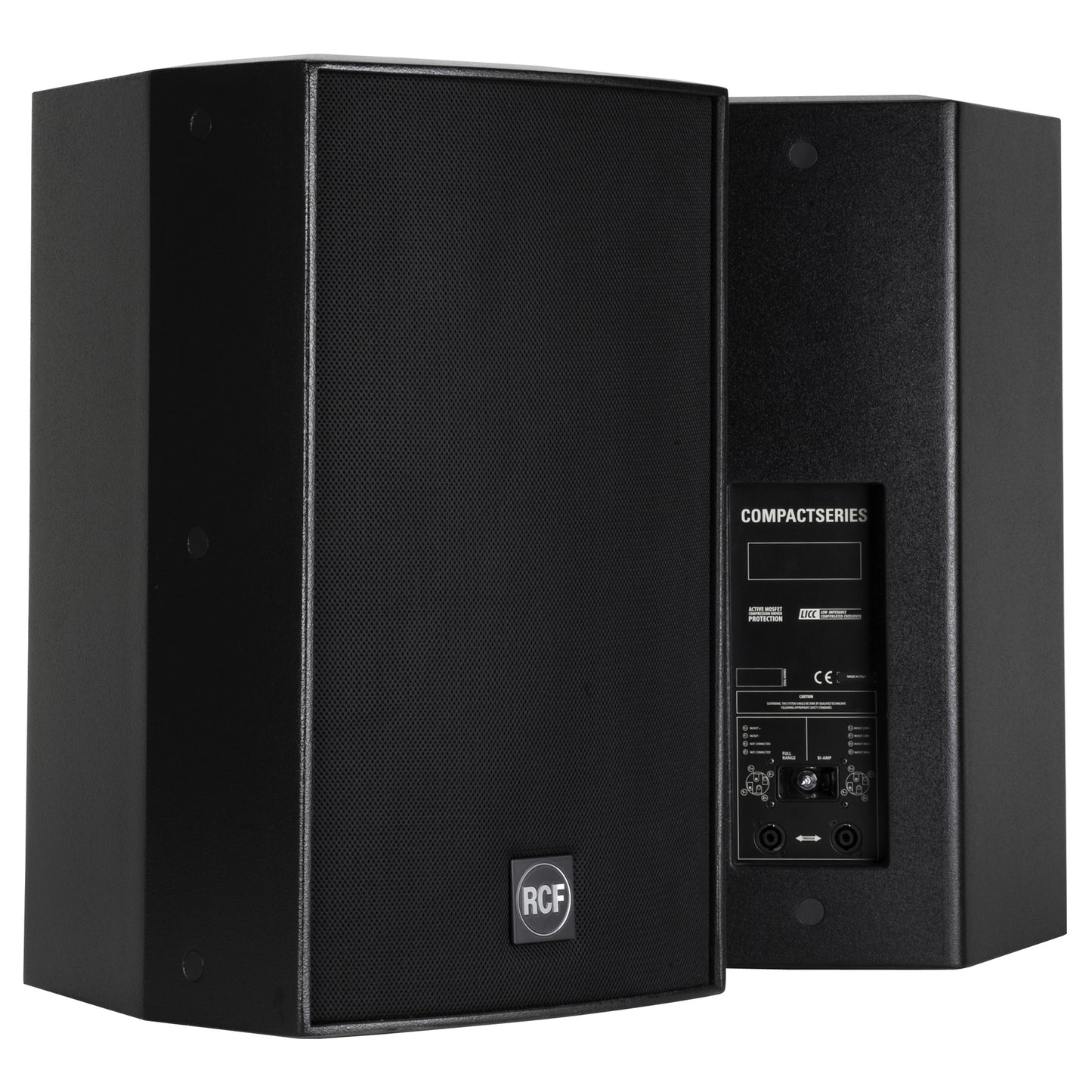

RCF C5215-66 Passive 15" 2-way Speaker

SKU: C5215-66
$1,999.00 inc. VAT
-19% $2,479.00 $1,999.00 inc. VAT
C 5215-66
TWO-WAY PASSIVE SPEAKER
  • 1.4" COMPRESSION DRIVER WITH 2,5" DIAPHRAGM ASSEMBLY
  • 15" WOOFER WITH 3" VOICE COIL
  • 90° X 60° CMD (COVERAGE MATCHING DESIGN) CONSTANT DIRECTIVITY HORN
  • HF DRIVER AMCDP (ACTIVE MOSFET COMPRESSION DRIVER PROTECTION)
  • 90° x 60° CMD (Coverage Matching Design) constant directivity horn
  • 1.4" compression driver with 2,5" diaphragm assembly
  • 15" woofer with 3" voice coil
  • Dual-function design: built in passive crossover or external bi-amp
  • Rotatable Horn System for horizontal cabinet mounting applications
  • HF driver AMCDP (Active Mosfet Compression Driver Protection)
  • LICC (Low Impedance Compensated Crossover) network
  • 14 Suspension points (M10)
  • 35 mm standard internal pole mount
The C5215-96 is a full range extremely versatile controlled narrow dispersion two-way loudspeaker system for medium throw applications. The high-frequency section is a constant directivity horn loaded to a 2” compression driver with a 2.5” diaphragm assembly for smooth, controlled dispersion. The 90° x 60° horn design offers higher sensitivity for longer distance applications. The low-frequency transducer is a 15” woofer with a 3” voice coil. The crossover is easily bypassed for bi-amp via a recessed changeover switch.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
48 Hz ÷ 20000 Hz

MAX SPL @ 1M:
134 dB

HORIZONTAL COVERAGE ANGLE:
60°

VERTICAL COVERAGE ANGLE:
60°

DIRECTIVITY INDEX Q:
16

SYSTEM SENSITIVITY:
101 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
500 W RMS

PEAK POWER HANDLING:
2000 W PEAK

RECOMMENDED AMPLIFIER:
1000 W

PROTECTIONS:
Dynamic active mosfet

CROSSOVER FREQUENCIES:
1200 Hz
Transducers
COMPRESSION DRIVER:
1.4'', 2.5'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
100 W AES, 200 W PEAK

SENSITIVITY (DB, 1W @ 1M):
111 dB, 1W @ 1m

WOOFER:
15'', 3.0'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
400 W AES, 800 W PEAK

SENSITIVITY (DB, 1W @ 1M):
99 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Speakon® NL4

OUTPUT CONNECTORS:
Speakon® NL4
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black

HARDWARE:
14 x M10, multiplates (top and bottom)

POLE MOUNT/CAP:
Yes

GRILLE:
Steel with robust double mesh polyester clothing

CABINET/CASE MATERIAL:
Baltic birch plywood
Size
WIDTH:
430 mm / 16.93 inches

DEPTH:
460 mm / 18.11 inches

HEIGHT:
695 mm / 27.36 inches

WEIGHT:
35 kg / 77.16 lbs
Shipping informations
PACKAGE WEIGHT:
38.5 kg / 84.88 lbs

PACKAGE DEPTH:
534 mm / 21.02 inches

PACKAGE WIDTH:
584 mm / 22.99 inches

PACKAGE HEIGHT:
779 mm / 30.67 inches
