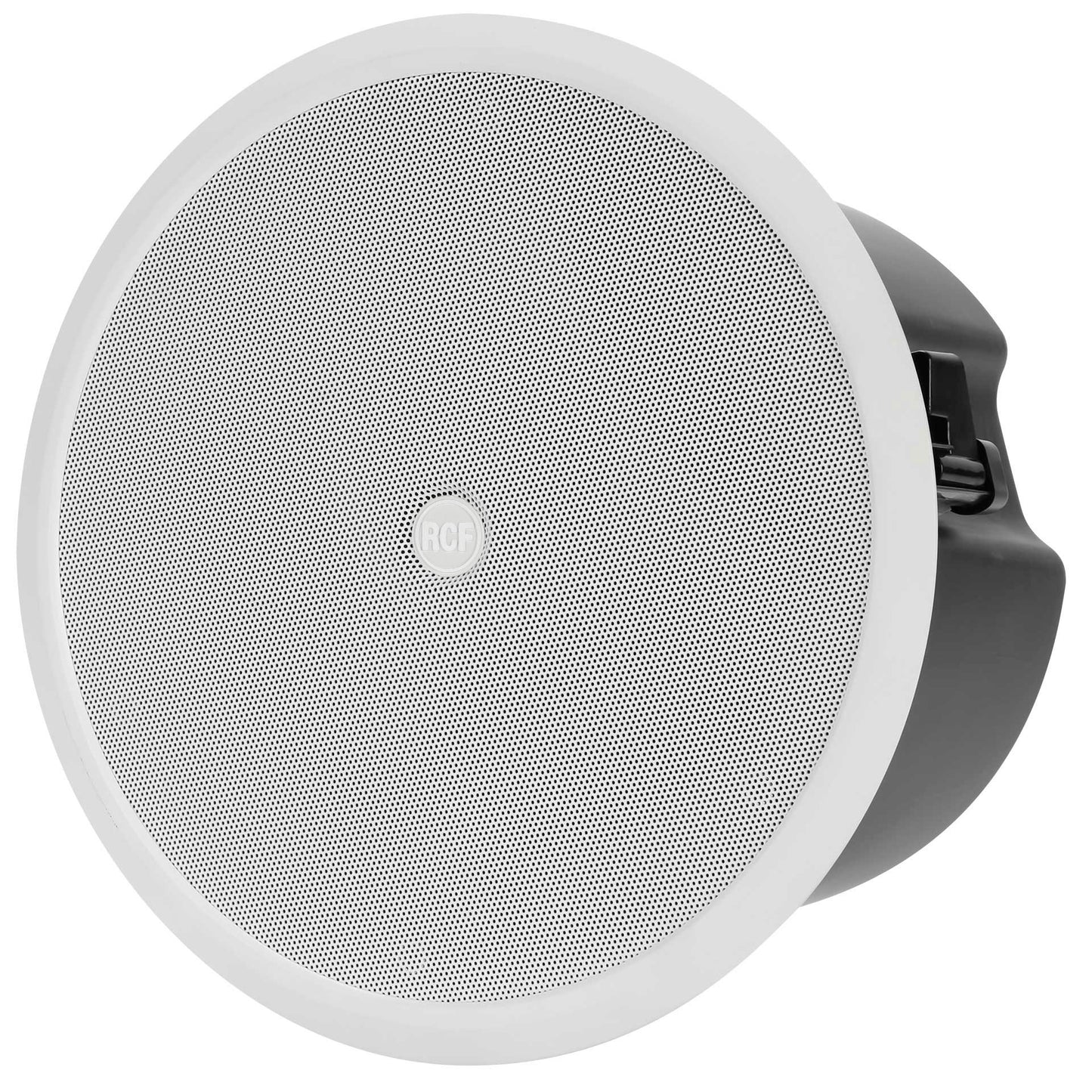

RCF CMR-50T-W 5" Two Way Ceiling Monitor Speaker w/Transformer (Wht) 40w

SKU: CMR-50T-W
$249.00 inc. VAT
-24% $329.00 $249.00 inc. VAT
CMR 50T
TWO-WAY CEILING MONITOR SPEAKER
  • 40W RMS POWER HANDLING
  • 110 DB MAX SPL
  • SELF EXTINGUISHING PLASTIC BODY AND METAL BACKCAN
  • STEEL FRONT GRILLE WITH MAGNETIC FIXING
  • 40W RMS power handling
  • 110 dB max SPL
  • 80 ÷ 20000 Hz frequency range
  • 130° constant directivity coverage angle
  • 5" high power woofer
  • 1" neodymium dome tweeter
  • Self extinguishing plastic body and metal backcan
  • Steel magnetic front grille
  • 4 pole EUROBLOCK connector (audio input and parallel link output)
  • 5 different power levels selectable
CMR 50T is a multipurpose two-way in-ceiling speaker, suitable for a wide range of applications. Thanks to its elegant and discreet design and accurate details, CMR 50T pairs any building's aesthetic. The high-quality transducers, aligned in a coaxial configuration, guarantees a precise music reproduction of the entire frequency band and provides impressive sound pressure levels for such a compact enclosure. Installation is easy with three long travel clamps. The magnetic grille allows immediate access to the power selector on the front shell: the line transformer provides 40W full power on 70V and 100V constant voltage lines, and five different power levels.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
80 Hz ÷ 20000 Hz

MAX SPL @ 1M:
110 dB

COVERAGE ANGLE:
130°

SYSTEM SENSITIVITY:
88 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
40 W RMS

PEAK POWER HANDLING:
160 W PEAK

RECOMMENDED AMPLIFIER:
80 W

CROSSOVER FREQUENCIES:
2500 Hz
Transducers
DOME TWEETER:
1.0'' neo, 1.0'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
15 W AES, 30 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
91 dB, 1W @ 1m

WOOFER:
5.0'', 1.0'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
40 W AES, 80 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
88 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Euroblock

OUTPUT CONNECTORS:
Euroblock

CONSTANT VOLTAGE TRANSFORMER:
70/100 V

POWER SELECTION 1 (100 V):
40 W - 250 ohm

POWER SELECTION 2 (100 V):
20 W - 500 ohm

POWER SELECTION 3 (100 V):
10 W - 1000 ohm

POWER SELECTION 4 (100 V):
5 W - 2000 ohm

POWER SELECTION 5 (100 V):
2.5 W - 4000 ohm
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
White - RAL 9003

HARDWARE:
Steel backcan

GRILLE:
Steel

CABINET/CASE MATERIAL:
ABS
Size
RECESSED DEPTH:
142 mm / 5.59 inches

DIAMETER:
300 mm / 11.81 inches

WEIGHT:
4 kg / 8.82 lbs

CUT OUT DIAMETER:
260 mm / 10.24 inches
Shipping informations
PACKAGE WEIGHT:
5.5 kg / 12.13 lbs

PACKAGE DEPTH:
362 mm / 14.25 inches

PACKAGE WIDTH:
362 mm / 14.25 inches

PACKAGE HEIGHT:
229 mm / 9.02 inches
