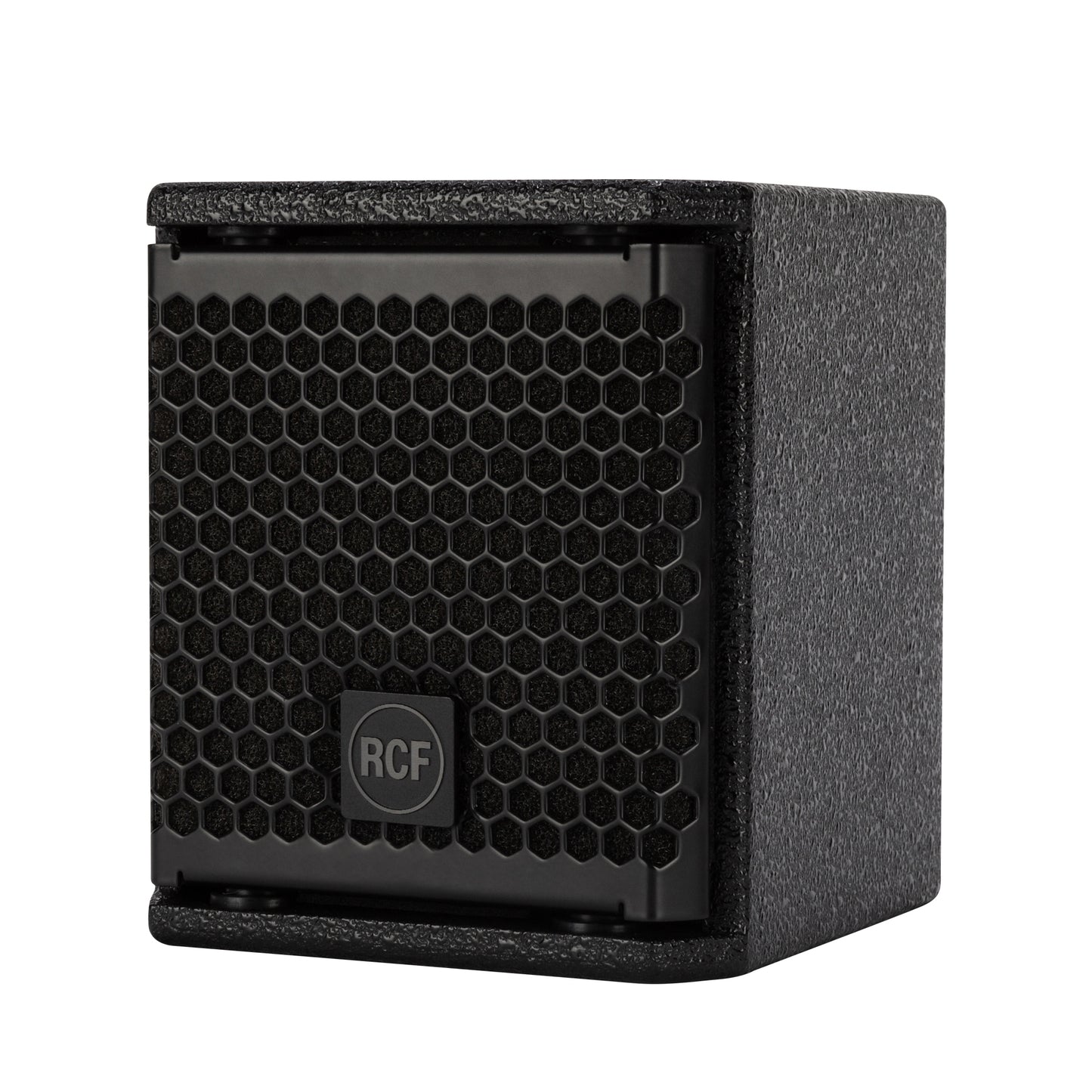

RCF COMPACT M 04 Passive 4" 2-way Compact Speaker (Blk)

SKU: COMPACT M 04
$259.00 inc. VAT
-48% $499.00 $259.00 inc. VAT
COMPACT M 04
TWO-WAY PROFESSIONAL SPEAKER
  • 60W AES POWER HANDLING
  • 113 DB MAX SPL
  • 90 ÷ 20000 HZ FREQUENCY RANGE
  • 120° X 120° CONSTANT DIRECTIVITY COVERAGE ANGLE
  • 60W AES power handling
  • 113 dB max SPL
  • 90 ÷ 20000 Hz frequency range
  • 120° x 120° constant directivity coverage angle
  • 1 x 4" coax woofer
  • 1 x 1" voice coil neodymium dome tweeter
  • High quality plywood cabinet
  • Wall mount bracket included
COMPACT M 04 is a multipurpose two-way full-range coaxial speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. M 04 features high sensitivity, thanks to the use of oversized magnets, and a HI-FI sound quality, with smooth and wide frequency response. The SPL level of low-distortion audio the M 04 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 04 suitable for almost any environment, even with architectural constraints. Included wall mount bracket allow the use of the M 04 on wall or ceiling installations.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
90 Hz ÷ 20000 Hz

MAX SPL @ 1M:
113 dB

HORIZONTAL COVERAGE ANGLE:
120°

VERTICAL COVERAGE ANGLE:
120°

DIRECTIVITY INDEX Q:
6

SYSTEM SENSITIVITY:
89 dB
Power section
NOMINAL IMPEDANCE (OHM):
16

POWER HANDLING:
60 W RMS

PEAK POWER HANDLING:
240 W PEAK

RECOMMENDED AMPLIFIER:
120 W

CROSSOVER FREQUENCIES:
1800 Hz
Transducers
DOME TWEETER:
1.0'' neo, 1.0'' v.c

NOMINAL IMPEDANCE (OHM):
16 ohm

INPUT POWER RATING:
10 W AES, 20 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
91 dB

WOOFER:
4.0'', 1.0'' v.c

NOMINAL IMPEDANCE (OHM):
16 ohm

INPUT POWER RATING:
60 W AES, 120 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
88 dB
Input/Output section
INPUT CONNECTORS:
Euroblock

OUTPUT CONNECTORS:
Euroblock
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black - RAL 9005

HARDWARE:
2 x M6, 2 x M8

GRILLE:
Steel with clothing

CABINET/CASE MATERIAL:
Plywood
Size
WIDTH:
132 mm / 5.2 inches

DEPTH:
145 mm / 5.71 inches

HEIGHT:
148 mm / 5.83 inches

WEIGHT:
2.3 kg / 5.07 lbs
Shipping informations
PACKAGE WEIGHT:
2.9 kg / 6.39 lbs

PACKAGE DEPTH:
150 mm / 5.91 inches

PACKAGE WIDTH:
233 mm / 9.17 inches

PACKAGE HEIGHT:
168 mm / 6.61 inches
