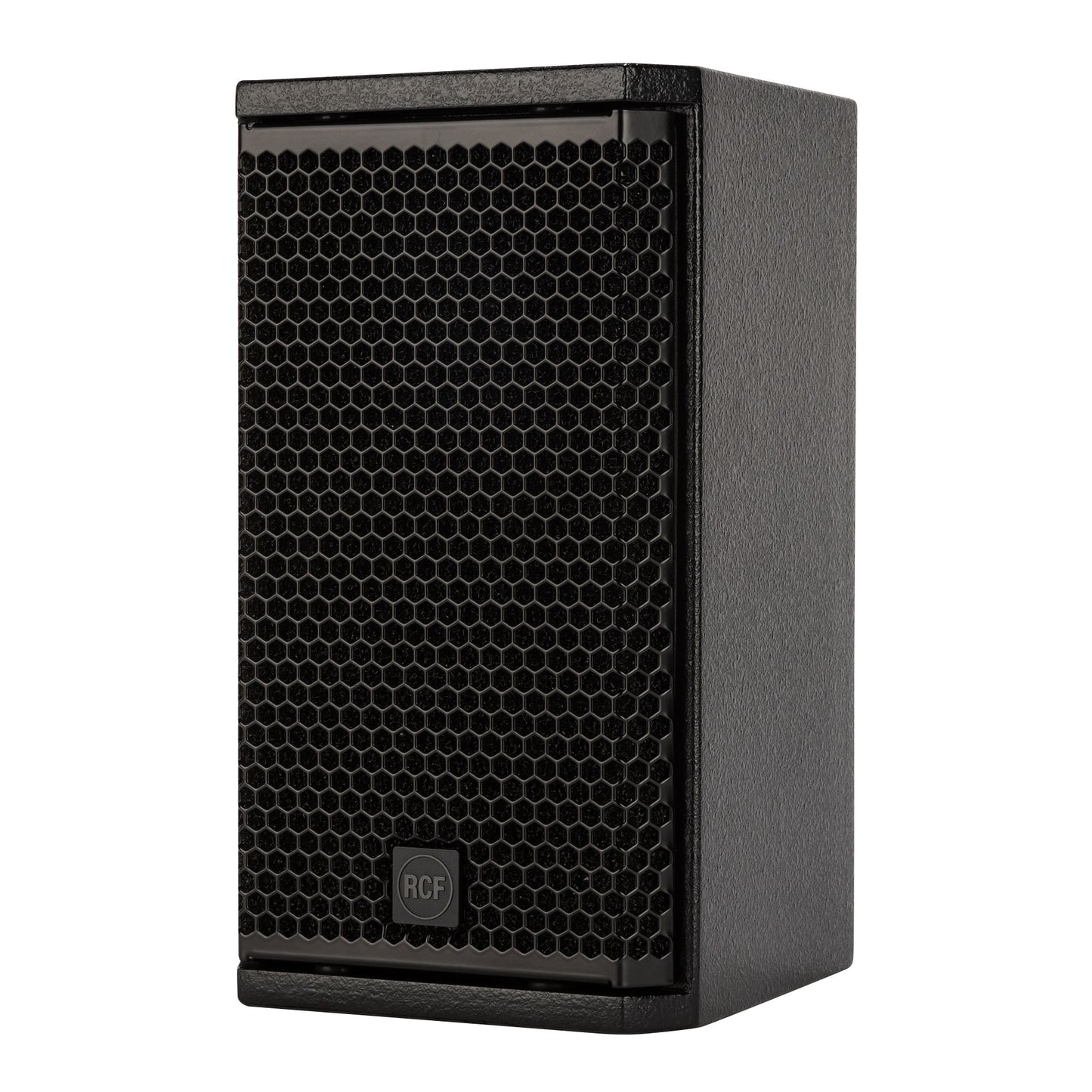

RCF COMPACT M 05 Passive 5" 2-way Compact Speaker (Blk)

SKU: COMPACT M 05
$299.00 inc. VAT
-50% $599.00 $299.00 inc. VAT
COMPACT M 05
TWO-WAY PASSIVE SPEAKER
  • 80 W RMS POWER HANDLING
  • 115 DB MAX SPL
  • 70 ÷ 20000 HZ FREQUENCY RANGE
  • 120° X 80° CONSTANT DIRECTIVITY COVERAGE ANGLE
  • 80 W RMS power handling
  • 115 dB max SPL
  • 70 ÷ 20000 Hz frequency range
  • 120° x 80° constant directivity coverage angle
  • 1 x 5" high power woofer
  • 1 x 1" voice coil neodymium dome tweeter
  • High quality plywood cabinet
  • Steel front grille with clothing
  • Installation points available on rear, top and bottom panels
  • 4 pole EUROBLOCK connector (audio input and parallel link output)
COMPACT M 05 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. M 05 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided neodymium dome tweeter. The SPL level of low-distortion audio the M 05 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 05 suitable for almost any environment, even with architectural constraints. Optional mounting accessories allow the use of the M 05 on wall or ceiling installations.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
70 Hz ÷ 20000 Hz

MAX SPL @ 1M:
115 dB

HORIZONTAL COVERAGE ANGLE:
120°

VERTICAL COVERAGE ANGLE:
80°

DIRECTIVITY INDEX Q:
7

SYSTEM SENSITIVITY:
89 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
80 W RMS

PEAK POWER HANDLING:
320 W PEAK

RECOMMENDED AMPLIFIER:
160 W

CROSSOVER FREQUENCIES:
2200 Hz
Transducers
DOME TWEETER:
1.3'' neo, 1.0'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
15 W AES, 30 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
92 dB, 1W @ 1m

WOOFER:
5.0'', 1.2'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
80 W AES, 160 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
89 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Euroblock

OUTPUT CONNECTORS:
Euroblock
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black - RAL 9005

HARDWARE:
4 x M6, 2 x M8

GRILLE:
Steel with clothing

CABINET/CASE MATERIAL:
Plywood
Size
WIDTH:
172 mm / 6.77 inches

DEPTH:
191 mm / 7.52 inches

HEIGHT:
303 mm / 11.93 inches

WEIGHT:
4.5 kg / 9.92 lbs
Shipping informations
PACKAGE WEIGHT:
6 kg / 13.23 lbs

PACKAGE DEPTH:
196 mm / 7.72 inches

PACKAGE WIDTH:
215 mm / 8.46 inches

PACKAGE HEIGHT:
324 mm / 12.76 inches
