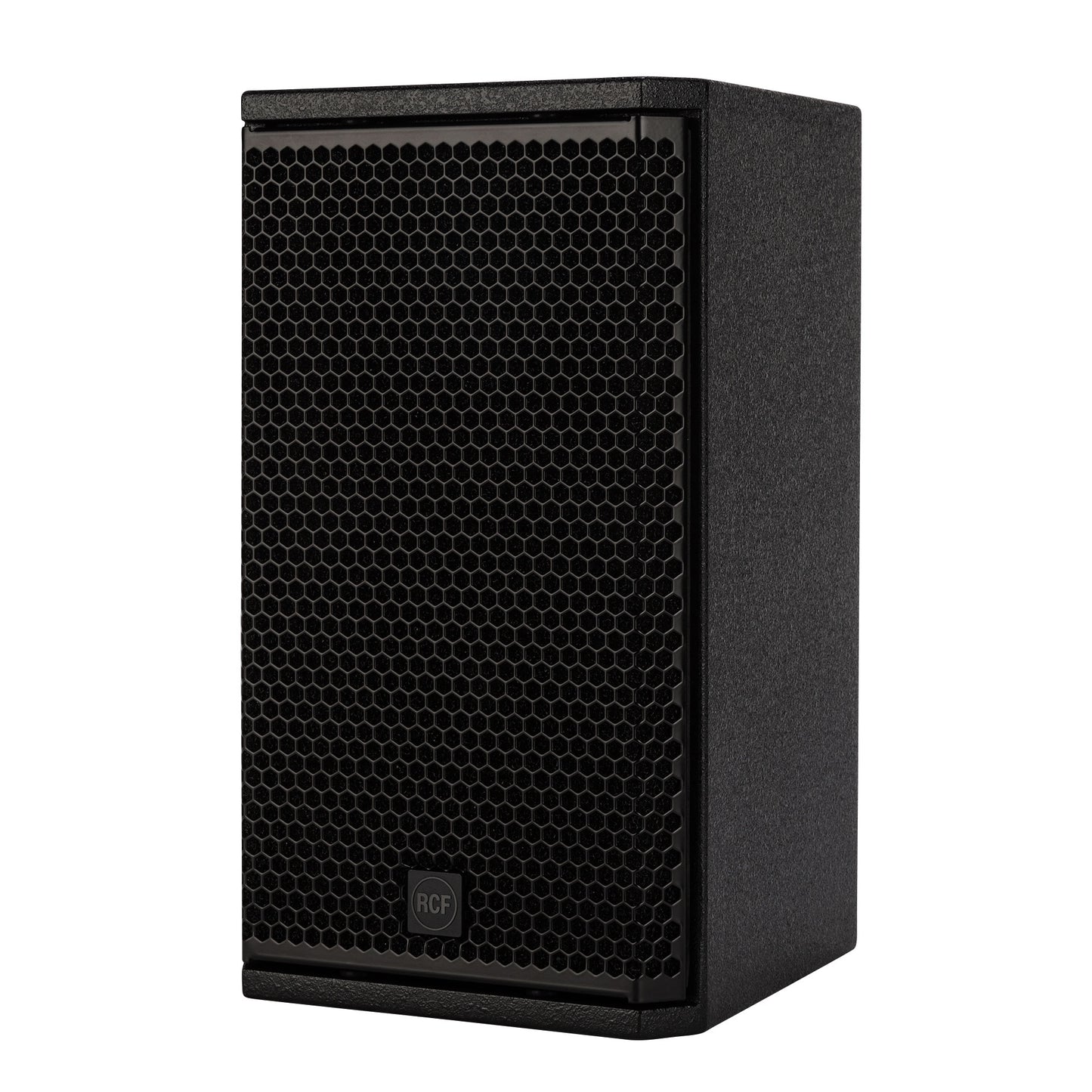

RCF COMPACT M 06 Passive 6" 2-way Compact Speaker (Blk)

SKU: COMPACT M 06
$379.00 inc. VAT
-46% $699.00 $379.00 inc. VAT
COMPACT M 06
TWO-WAY PASSIVE SPEAKER
  • 100 W RMS POWER HANDLING
  • 116 DB MAX SPL
  • 60 ÷ 20000 HZ FREQUENCY RANGE
  • 120° X 80° CONSTANT DIRECTIVITY COVERAGE ANGLE
  • 100 W RMS power handling
  • 116 dB max SPL
  • 60 ÷ 20000 Hz frequency range
  • 120° x 80° constant directivity coverage angle
  • 1 x 6" high power woofer
  • 1 x 1" voice coil neodymium dome tweeter
  • High quality plywood cabinet
  • Steel front grille with clothing
  • Installation points available on rear, top and bottom panels
  • 4 pole EUROBLOCK connector (audio input and parallel link output)
COMPACT M 06 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. The M 06 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided neodymium dome tweeter. The SPL level of low-distortion audio the M 06 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 06 suitable for almost any environment, even with architectural constraints. Optional mounting accessories allow using M 06 on wall or ceiling installations.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
60 Hz ÷ 20000 Hz

MAX SPL @ 1M:
116 dB

HORIZONTAL COVERAGE ANGLE:
120°

VERTICAL COVERAGE ANGLE:
80°

DIRECTIVITY INDEX Q:
7

SYSTEM SENSITIVITY:
90 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
100 W RMS

PEAK POWER HANDLING:
400 W PEAK

RECOMMENDED AMPLIFIER:
200 W

PROTECTIONS:
Dynamic active mosfet

CROSSOVER FREQUENCIES:
2200 Hz
Transducers
DOME TWEETER:
1.3'' neo, 1.0'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
15 W AES, 30 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
92 dB, 1W @ 1m

WOOFER:
6.0'', 1.5'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
100 W AES, 200 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
90 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Euroblock

OUTPUT CONNECTORS:
Euroblock
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black - RAL 9005

HARDWARE:
4 x M6, 2 x M8

GRILLE:
Steel with clothing

CABINET/CASE MATERIAL:
Plywood
Size
WIDTH:
211 mm / 8.31 inches

DEPTH:
232 mm / 9.13 inches

HEIGHT:
365 mm / 14.37 inches

WEIGHT:
5.5 kg / 12.13 lbs
Shipping informations
PACKAGE WEIGHT:
7 kg / 15.43 lbs

PACKAGE DEPTH:
235 mm / 9.25 inches

PACKAGE WIDTH:
256 mm / 10.08 inches

PACKAGE HEIGHT:
386 mm / 15.2 inches
