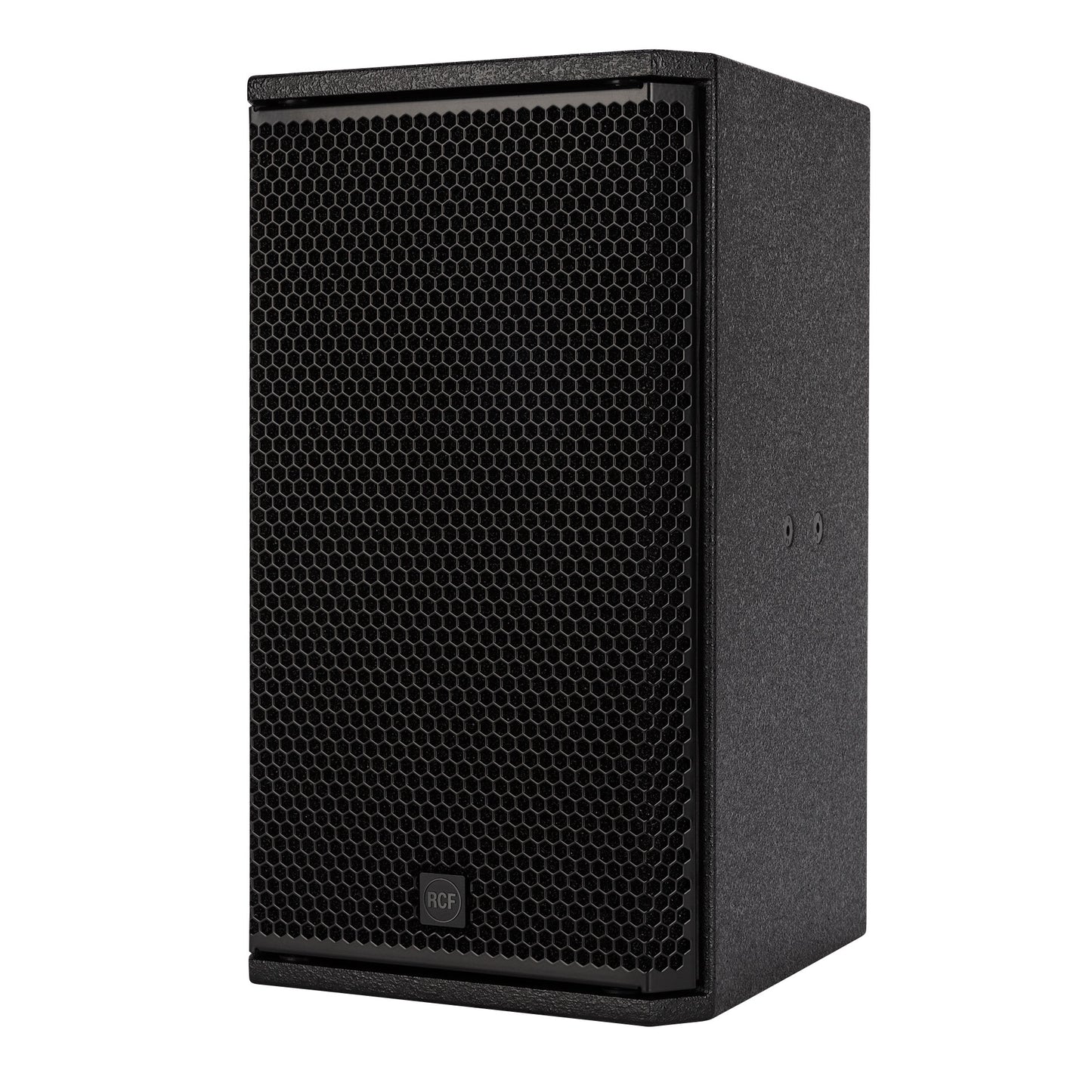

RCF COMPACT M 08 Passive 8" 2-way Compact Speaker (Blk)

SKU: COMPACT M 08
$549.00 inc. VAT
-31% $799.00 $549.00 inc. VAT
COMPACT M 08
TWO-WAY PASSIVE SPEAKER
  • 200W RMS POWER HANDLING
  • 124 DB MAX SPL
  • 60 ÷ 20000 HZ FREQUENCY RANGE
  • 90° X 70° CONSTANT DIRECTIVITY COVERAGE ANGLE
  • 200W RMS power handling
  • 124 dB max SPL
  • 60 ÷ 20000 Hz frequency range
  • 90° x 70° constant directivity coverage angle
  • 1 x 8" high power woofer
  • 1 x 1.4" voice coil compression driver
  • High quality plywood cabinet
  • Steel front grille with clothing
  • Installation points available on rear, top and bottom panels
  • 4 pole EUROBLOCK connector (audio input and parallel link output)
COMPACT M 08 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. The M 08 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided compression driver. The SPL level of low-distortion audio the M 08 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 08 suitable for almost any environment, even with architectural constraints. Optional mounting accessories allow using M 08 on wall or ceiling installations.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
60 Hz ÷ 20000 Hz

MAX SPL @ 1M:
124 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
70°

DIRECTIVITY INDEX Q:
9

SYSTEM SENSITIVITY:
95 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
200 W RMS

PEAK POWER HANDLING:
800 W PEAK

RECOMMENDED AMPLIFIER:
400 W

PROTECTIONS:
Dynamic active mosfet

CROSSOVER FREQUENCIES:
1800 Hz
Transducers
COMPRESSION DRIVER:
1 x 1.0'', 1.4'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
25 W AES, 50 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
107 dB, 1W @ 1m

WOOFER:
8'', 1.7'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
200 W AES, 400 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
94 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Euroblock

OUTPUT CONNECTORS:
Euroblock
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black - RAL 9005

HARDWARE:
6 x M6, 4 x M8, 2 x M10

GRILLE:
Steel with clothing

CABINET/CASE MATERIAL:
Plywood
Size
WIDTH:
257 mm / 10.12 inches

DEPTH:
284 mm / 11.18 inches

HEIGHT:
442 mm / 17.4 inches

WEIGHT:
13.5 kg / 29.76 lbs
Shipping informations
PACKAGE WEIGHT:
16 kg / 35.27 lbs

PACKAGE DEPTH:
295 mm / 11.61 inches

PACKAGE WIDTH:
322 mm / 12.68 inches

PACKAGE HEIGHT:
477 mm / 18.78 inches
