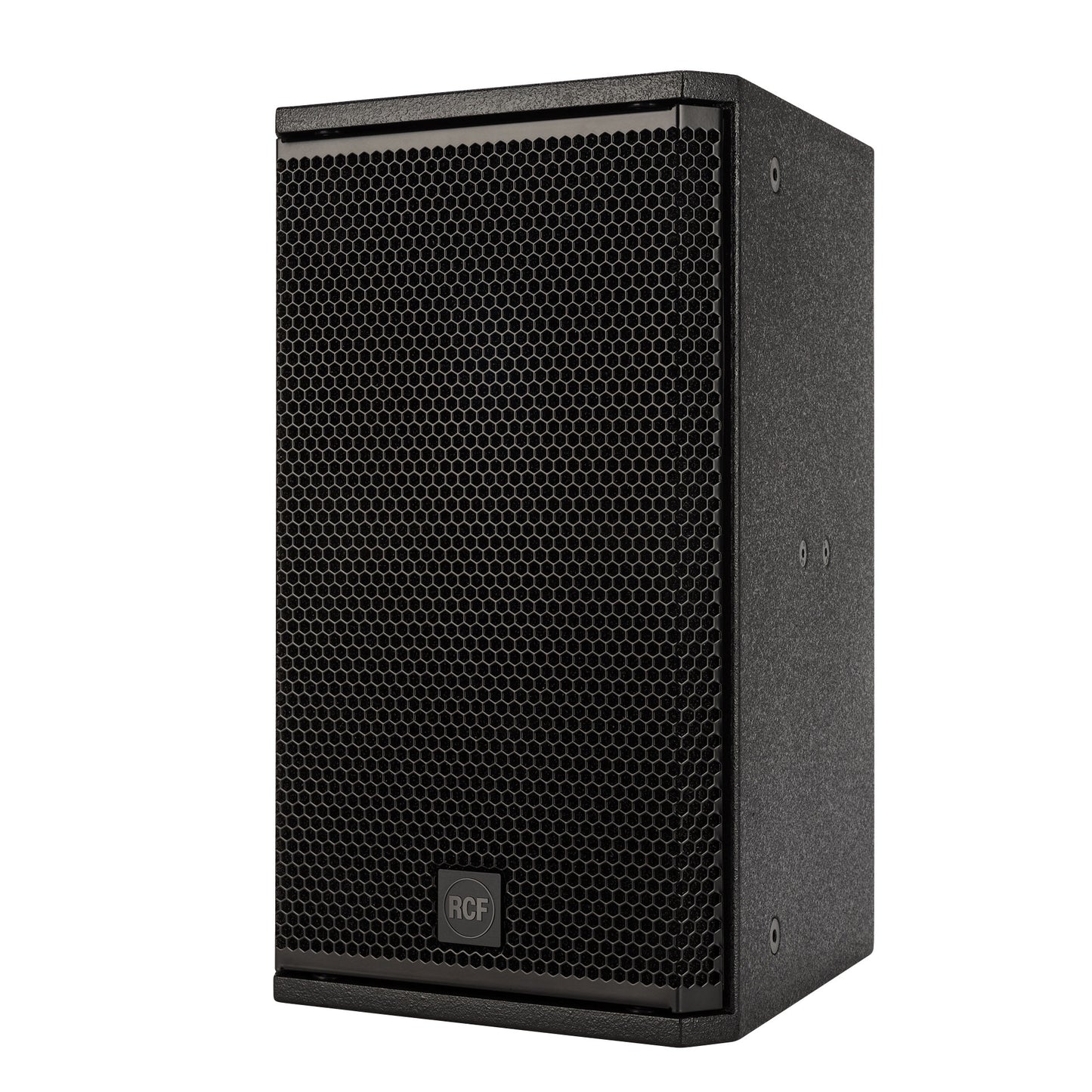

RCF COMPACT M 10 Passive 10" 2-way Compact Speaker (Blk)

SKU: COMPACT M 10
Regular price $649.00
Regular price -28% $899.00 Sale price $649.00

COMPACT M 10
TWO-WAY PASSIVE SPEAKER
  • 300 W RMS POWER HANDLING
  • 128 DB MAX SPL
  • 60 ÷ 20000 HZ FREQUENCY RANGE
  • 90° X 70° CONSTANT DIRECTIVITY COVERAGE ANGLE
  • 300 W RMS power handling
  • 128 dB max SPL
  • 60 ÷ 20000 Hz frequency range
  • 90° x 70° constant directivity coverage angle
  • 1 x 10" high power woofer
  • 1 x 1.4" voice coil compression driver
  • High quality plywood cabinet
  • Steel front grille with clothing
  • Installation points available on rear, top and bottom panels
  • 4 pole EUROBLOCK connector (audio input and parallel link output)
COMPACT M 10 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. The M 10 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided compression driver. The SPL level of low-distortion audio the M 10 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 10 suitable for almost any environment, even with architectural constraints. Optional mounting accessories allow using M 10 on wall or ceiling installations.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
60 Hz ÷ 20000 Hz

MAX SPL @ 1M:
128 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
70°

DIRECTIVITY INDEX Q:
9

SYSTEM SENSITIVITY:
98 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
300 W RMS

PEAK POWER HANDLING:
1200 W PEAK

RECOMMENDED AMPLIFIER:
600 W

PROTECTIONS:
Dynamic active mosfet

CROSSOVER FREQUENCIES:
1800 Hz
Transducers
COMPRESSION DRIVER:
1 x 1.0'', 1.4'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
25 W AES, 50 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
107 dB, 1W @ 1m

WOOFER:
10'', 2.5'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
300 W AES, 600 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
98 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Euroblock

OUTPUT CONNECTORS:
Euroblock
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black - RAL 9005

HARDWARE:
8 x M8, 8 x M10

GRILLE:
Steel with clothing

CABINET/CASE MATERIAL:
Plywood
Size
WIDTH:
295 mm / 11.61 inches

DEPTH:
325 mm / 12.8 inches

HEIGHT:
510 mm / 20.08 inches

WEIGHT:
17 kg / 37.48 lbs
Shipping informations
PACKAGE WEIGHT:
20 kg / 44.09 lbs

PACKAGE DEPTH:
333 mm / 13.11 inches

PACKAGE WIDTH:
363 mm / 14.29 inches

PACKAGE HEIGHT:
545 mm / 21.46 inches
