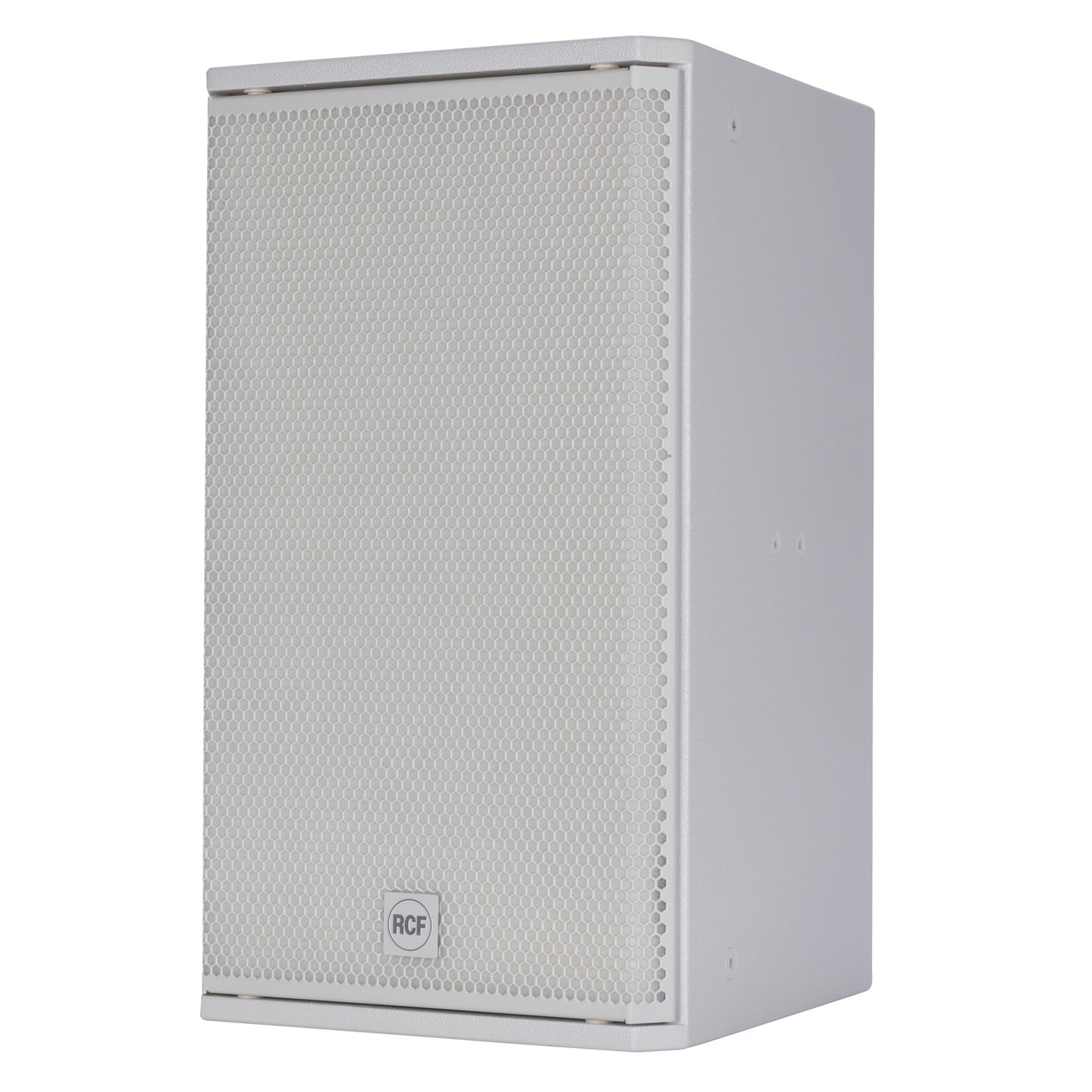

RCF COMPACT M 12-W Passive 12" 2-way Compact Speaker (Wht)

SKU: COMPACT M 12-W
$899.00 inc. VAT
-10% $999.00 $899.00 inc. VAT
COMPACT M 12
TWO-WAY PASSIVE SPEAKER
  • 300 W RMS POWER HANDLING
  • 129 DB MAX SPL
  • 55 ÷ 20000 HZ FREQUENCY RANGE
  • 90° X 70° CONSTANT DIRECTIVITY COVERAGE ANGLE
  • 300 W RMS power handling
  • 129 dB max SPL
  • 55 ÷ 20000 Hz frequency range
  • 90° x 70° constant directivity coverage angle
  • 1 x 12" high power woofer
  • 1 x 1.4" voice coil compression driver
  • High quality plywood cabinet
  • Steel front grille with clothing
  • Installation points available on rear, top and bottom panels
  • 4 pole EUROBLOCK connector (audio input and parallel link output)
COMPACT M 12 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. The M 12 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided compression driver. The SPL level of low-distortion audio the M 12 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 12 suitable for almost any environment, even with architectural constraints. Optional mounting accessories allow using M 12 on wall or ceiling installations.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
55 Hz ÷ 20000 Hz

MAX SPL @ 1M:
129 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
70°

DIRECTIVITY INDEX Q:
9

SYSTEM SENSITIVITY:
98 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
300 W RMS

PEAK POWER HANDLING:
1200 W PEAK

RECOMMENDED AMPLIFIER:
600 W

PROTECTIONS:
Dynamic active mosfet

CROSSOVER FREQUENCIES:
1800 Hz
Transducers
COMPRESSION DRIVER:
1 x 1.0'', 1.4'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
25 W AES, 50 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
107 dB, 1W @ 1m

WOOFER:
12'', 2.5'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
300 W AES, 600 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
98 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Euroblock

OUTPUT CONNECTORS:
Euroblock
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black - RAL 9005

HARDWARE:
8 x M8, 8 x M10

GRILLE:
Steel with clothing

CABINET/CASE MATERIAL:
Plywood
Size
WIDTH:
362 mm / 14.25 inches

DEPTH:
404 mm / 15.91 inches

HEIGHT:
620 mm / 24.41 inches

WEIGHT:
22 kg / 48.5 lbs
Shipping informations
PACKAGE WEIGHT:
25.5 kg / 56.22 lbs

PACKAGE DEPTH:
400 mm / 15.75 inches

PACKAGE WIDTH:
442 mm / 17.4 inches

PACKAGE HEIGHT:
655 mm / 25.79 inches
