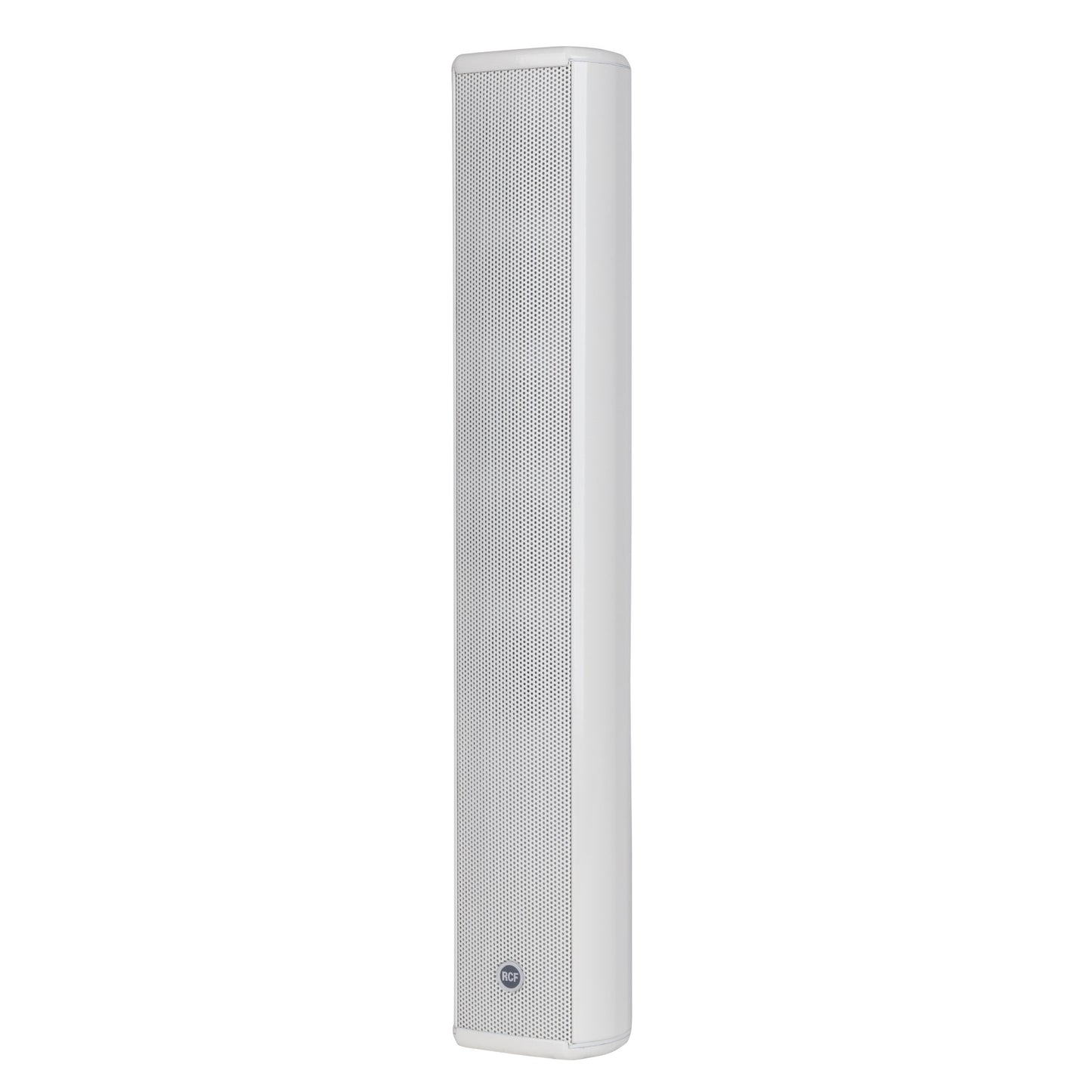

RCF CS3041 Passive 2-way Slimline Column Speaker (70V)

SKU: CS3041
$179.00 inc. VAT
-22% $229.00 $179.00 inc. VAT
CS 3041
COLUMN SPEAKER SLIM LINE
  • IDEAL FOR SPEECH REPRODUCTION, SHAPE DESIGNED TO ENABLE CORNER INSTALLATION
  • MUSIC POWER/RMS: 30/15W
  • FOUR 50 MM (2") DIAMETER EXTENDED RANGE SPEAKERS AND ONE TWEETER 25 MM (1")
  • BODY IN EXTRUDED ALUMINIUM BAKE-PAINTED RAL 9016 WHITE AND FRONT METAL GRILLE RAL9016 WHITE, INCLUDES ACCESSORY FOR WALL MOUNTING
  • Ideal for speech reproduction, shape designed to enable corner installation
  • Music power/RMS: 30/15W
  • Four 50 mm (2") diameter extended range speakers and one tweeter 25 mm (1")
  • Body in extruded aluminium bake-painted RAL 9016 White and front metal grille RAL9016 White, includes accessory for wall mounting
  • Built-in multi-tapped transformer (15 - 10 - 5 W) for 100 V constant voltage connection
  • 16-ohm input that can be selected on the terminal block
  • Audio connection on screw terminal block
CS 3041 is formed in an ultra slimline design offering minimal visual impact. Easy installation can be achieved with either the supplied ‘L’ shaped wall brackets or the optional MA 7W swivel bracket, which allows the installer to angle the speaker to suit. The new CS Slimline Columns have been optimised for speech reproduction using extended range 2 inch speakers and 1 inch tweeters.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
200 Hz ÷ 18000 Hz

MAX SPL @ 1M:
102 dB

HORIZONTAL COVERAGE ANGLE:
180°

VERTICAL COVERAGE ANGLE:
70°

SYSTEM SENSITIVITY:
89 dB
Power section
NOMINAL IMPEDANCE (OHM):
16 ohm

POWER HANDLING:
20 W RMS

PEAK POWER HANDLING:
80 W PEAK

RECOMMENDED AMPLIFIER:
40 W
Transducers
DOME TWEETER:
1.0''

WOOFER:
4 x 2.0''
Input/Output section
INPUT CONNECTORS:
Screw Terminals

OUTPUT CONNECTORS:
Screw Terminals

CONSTANT VOLTAGE TRANSFORMER:
100 V

POWER SELECTION 1 (100 V):
20 W - 500 ohm

POWER SELECTION 2 (100 V):
15 W - 667 ohm

POWER SELECTION 3 (100 V):
10 W - 1000 ohm
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
White - RAL 9016

HARDWARE:
Wall mount bracket

GRILLE:
Steel

CABINET/CASE MATERIAL:
Aluminium
Size
WIDTH:
78 mm / 3.07 inches

DEPTH:
66 mm / 2.6 inches

HEIGHT:
430 mm / 16.93 inches

WEIGHT:
1.71 kg / 3.77 lbs
Shipping informations
PACKAGE WEIGHT:
2.24 kg / 4.94 lbs

PACKAGE DEPTH:
130 mm / 5.12 inches

PACKAGE WIDTH:
135 mm / 5.31 inches

PACKAGE HEIGHT:
450 mm / 17.72 inches
