RCF

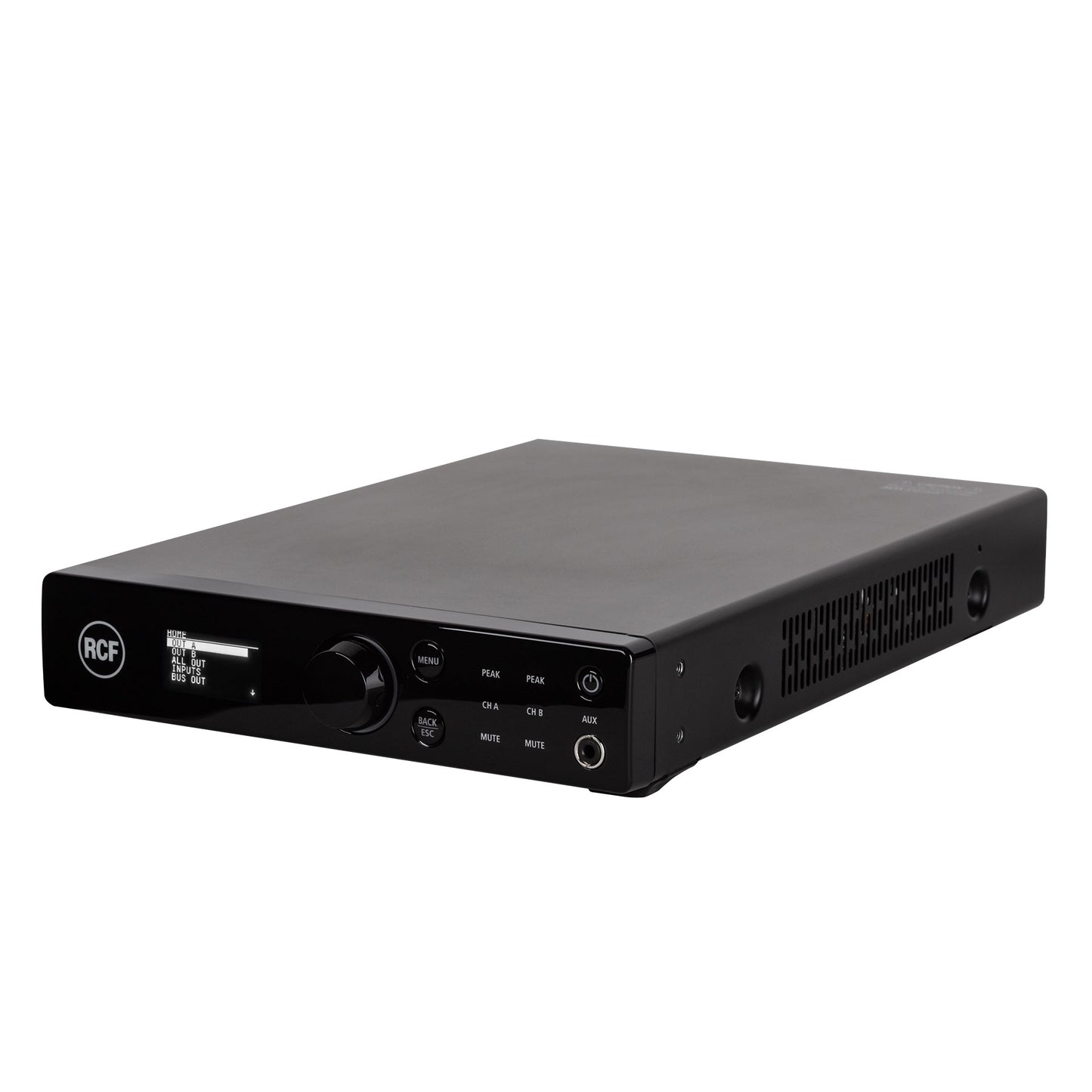

RCF DMA-162 Two Channel Digital Mixer Amp 2x160w

SKU: DMA-162
Regular price $999.00 inc. VAT
Regular price -9% $1,099.00 Sale price $999.00 inc. VAT
DMA 162
TWO CHANNELS MATRIX AMPLIFIER
  • 2 X 160 W CLASS-D POWER AMPLIFIER
  • FULL ON-BOARD PROCESSING
  • FLEXIBLE AND SCALABLE MULTI-ROOM ARCHITECTURE
  • SUITABLE FOR DESKTOP OR RACK INSTALLATION
  • 2 x 160 W Class-D power amplifier
  • 20 ÷ 20000 Hz frequency range
  • Full on-board processing
  • RCF speakers’ presets
  • Proprietary bass enhancer algorithm
  • FiRPHASE linear phase filters
  • Flexible and scalable multi-room architecture
  • Suitable for desktop or rack installation
  • RDNet ready for networked management
  • Remote controls and paging console accessories
DMA 162 is a two channels Class-D matrix amplifier equipped with a powerful DSP platform, allowing managing inputs and outputs in terms of routing and equalization. A complete set of processing functions is available, including presets for RCF speakers, proprietary bass enhancer algorithm, FIR filters, and environmental equalization. Thanks to its extremely compact size, accurate design, and robustness, it is ideal for a wide range of business music applications.
SPECIFICATIONS
Amplifier specifications
AMPLIFIER CLASS:
D

NUMBER OF CHANNELS:
2

POWER OUTPUT PER CHANNEL (@ 4 OHM):
160

POWER OUTPUT (BRIDGED @ 4 OHM):
320

POWER OUTPUT (HI-Z):
320

FREQUENCY RESPONSE (-3DB):
20 Hz ÷ 20000 kHz

SIGNAL/NOISE RATE (”A” WEIGHTED):
>93 dB

DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER:
<0.01 %
Input section
BALANCED:
2

GENERAL PURPOSE INPUTS (GPI):
1

LINE CONNECTORS:
JACK, Picoflex, RCA

LINE INPUTS:
3

MIC+LINE CONNECTORS:
Euroblock

MIC+LINE INPUTS:
1

VOX: (MIC+LINE):
Yes

VOX: (MIC):
Yes

MONO:
2

PAGING COMMAND:
Contact

PAGING CONNECTORS:
RJ45

PAGING INPUTS:
1

STEREO:
3

TOTAL NUMBER OF INPUTS:
5

UNBALANCED:
3
Output section
SIGNAL OUTPUT NUMBER:
1

SIGNAL OUTPUT CONNECTORS:
RCA
Processing
DSP:
Yes

EQ FILTERS:
Yes

FIR:
Yes

COMPRESSORS:
Yes

TONE CONTROLS:
Yes

HIGH-PASS FILTER:
80 Hz ÷ 200 Hz
Controls
CONFIGURATION:
Front panel, PC Software
Protections
COOLING:
Forced

SHORT CIRCUIT:
Yes

THERMAL:
Yes

DC DELAY:
Yes

FUSES:
Yes

VHF:
Yes
Power requirement
OPERATING VOLTAGE:
90-240 V~ 50/60Hz

POWER CONSUMPTION:
400
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal

COLOR:
Black
Size
DEPTH:
314 mm / 12.36 inches

HEIGHT:
44 mm / 1.73 inches

WEIGHT:
1.7 kg / 3.75 lbs

WIDTH:
213 mm / 8.39 inches
Shipping informations
PACKAGE DEPTH:
381 mm / 15 inches

PACKAGE HEIGHT:
106 mm / 4.17 inches

PACKAGE WEIGHT:
2.7 kg / 5.95 lbs

PACKAGE WIDTH:
360 mm / 14.17 inches
