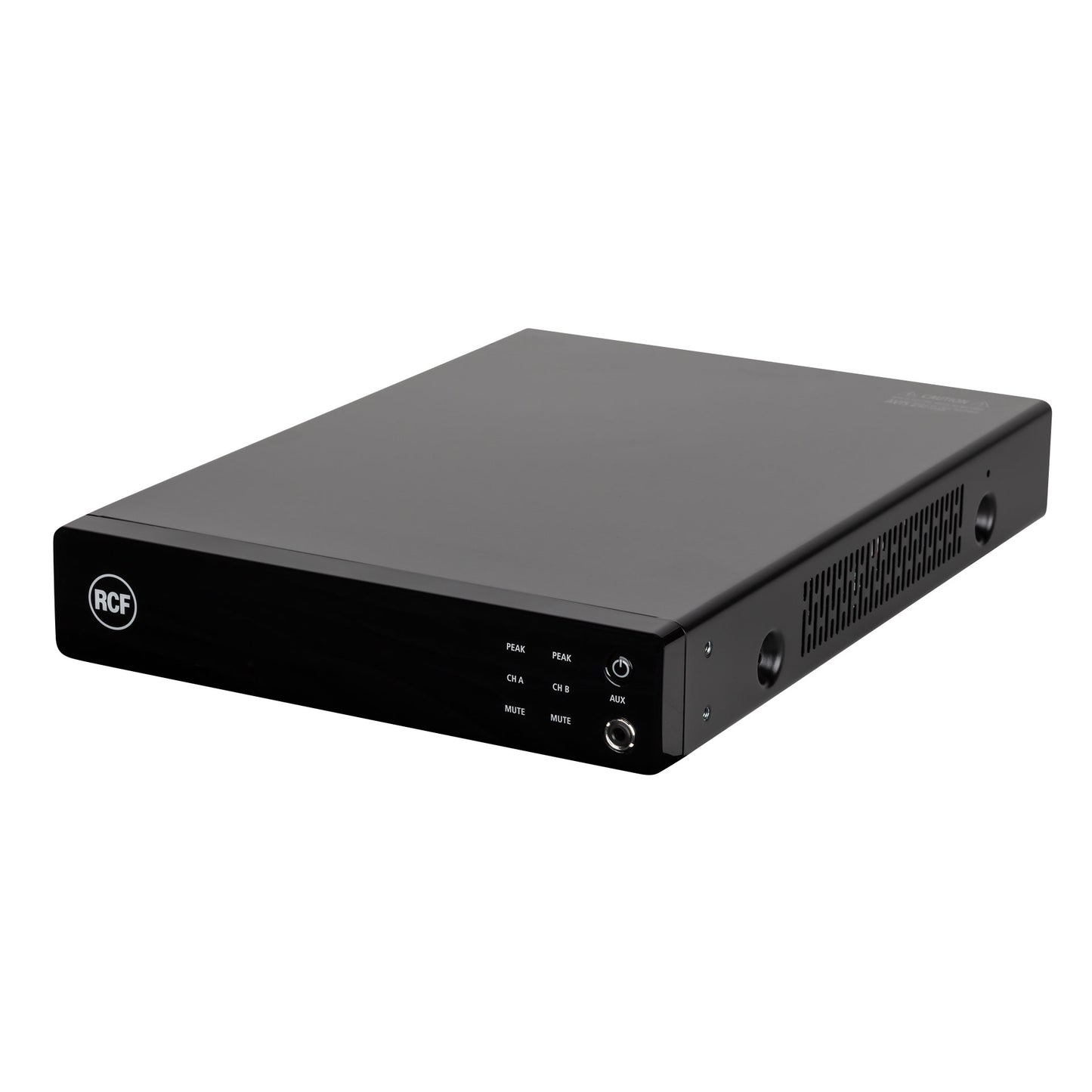

RCF DMA-162P Two Channel Digital Power Amp 320w

SKU: DMA-162P
$649.00 inc. VAT
-19% $799.00 $649.00 inc. VAT
DMA 162P
TWO CHANNELS POWER AMPLIFIER
  • 2 X 160 W CLASS-D POWER AMPLIFIER
  • FULL ON-BOARD PROCESSING
  • FLEXIBLE AND SCALABLE MULTI-ROOM ARCHITECTURE
  • SUITABLE FOR DESKTOP OR RACK INSTALLATION
  • 2 x 160 W Class-D power amplifier
  • 20 ÷ 20000 Hz frequency range
  • Full on-board processing
  • RCF speakers’ presets
  • Proprietary bass enhancer algorithm
  • FiRPHASE linear phase filters
  • Flexible and scalable multi-room architecture
  • Suitable for desktop or rack installation
  • RDNet ready for networked management
DMA 162P is a two channels Class-D power amplifier, equipped with a powerful DSP platform. Its natural use is in combination with a DMA unit, in order to increase installed power and implement multi-room architectures for Commercial Audio systems. However, its adaptability, control tools, and available inputs allow using it as a stand-alone amplifier: in fact, adding the optional RDNet board the user can manage all DSP functions and choose the specific RCF speakers preset. Thanks to the extremely compact size, accurate design, and robustness, it is ideal for a wide range of business music applications.
SPECIFICATIONS
Amplifier specifications
AMPLIFIER CLASS:
D

NUMBER OF CHANNELS:
2

POWER OUTPUT PER CHANNEL (@ 4 OHM):
160

POWER OUTPUT (BRIDGED @ 4 OHM):
320

POWER OUTPUT (HI-Z):
320

FREQUENCY RESPONSE (-3DB):
20 Hz ÷ 20000 Hz

SIGNAL/NOISE RATE (”A” WEIGHTED):
>93 dB

DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER:
<0.01 %
Input section
BALANCED:
4

GENERAL PURPOSE INPUTS (GPI):
2

LINE CONNECTORS:
Picoflex, RCA, RJ45

LINE INPUTS:
6

MONO:
4

STEREO:
2

TOTAL NUMBER OF INPUTS:
6

UNBALANCED:
2
Output section
SIGNAL OUTPUT NUMBER:
1

SIGNAL OUTPUT CONNECTORS:
RCA

POWER OUTPUT CONNECTORS:
Euroblock
Processing
DSP:
Yes

EQ FILTERS:
Yes

FIR:
Yes

COMPRESSORS:
Yes

TONE CONTROLS:
Yes

HIGH-PASS FILTER:
80 Hz ÷ 200 Hz
Controls
CONFIGURATION:
DIP switch, PC Software
Protections
COOLING:
Forced

SHORT CIRCUIT:
Yes

THERMAL:
Yes

DC DELAY:
Yes

FUSES:
Yes

VHF:
Yes
Power requirement
OPERATING VOLTAGE:
90-240 V~ 50/60Hz

POWER CONSUMPTION:
400
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal

COLOR:
Black

RACK MOUNTING:
1/2 19", 1U , Optional rack mounting accessory required
Size
DEPTH:
304 mm / 11.97 inches

HEIGHT:
44 mm / 1.73 inches

WEIGHT:
1.65 kg / 3.64 lbs

WIDTH:
213 mm / 8.39 inches
Shipping informations
PACKAGE DEPTH:
381 mm / 15 inches

PACKAGE HEIGHT:
106 mm / 4.17 inches

PACKAGE WEIGHT:
2.65 kg / 5.84 lbs

PACKAGE WIDTH:
360 mm / 14.17 inches
