Home » RCF DMA-82 Two Channel Digital Mixer Amp 2x80w
RCF

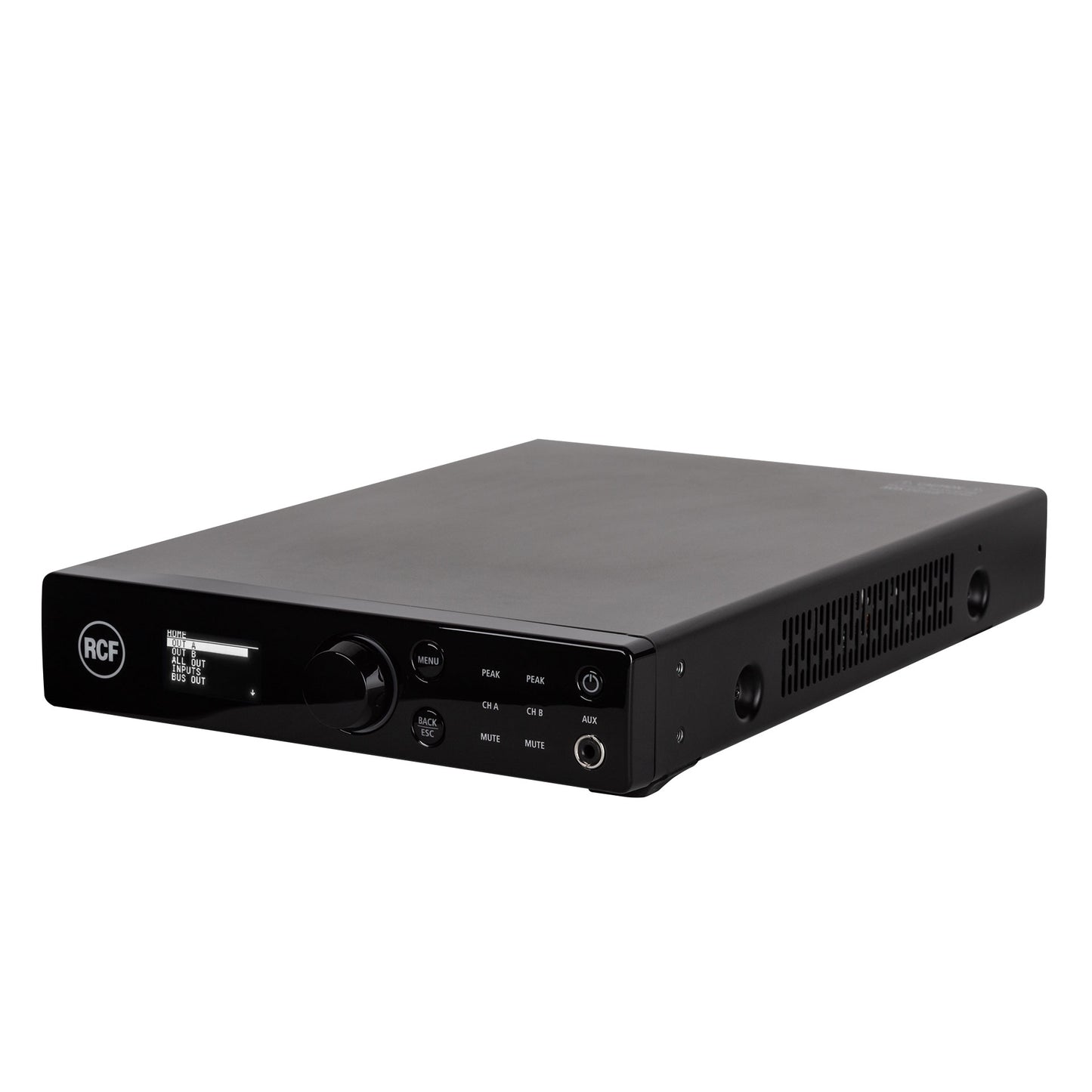

RCF DMA-82 Two Channel Digital Mixer Amp 2x80w

SKU: DMA-82
$899.00 inc. VAT
-10% $999.00 $899.00 inc. VAT
DMA 82
TWO CHANNELS MATRIX AMPLIFIER
  • 2 X 80 W CLASS-D POWER AMPLIFIER
  • FULL ON-BOARD PROCESSING
  • FLEXIBLE AND SCALABLE MULTI-ROOM ARCHITECTURE
  • SUITABLE FOR DESKTOP OR RACK INSTALLATION
  • 2 x 80 W Class-D power amplifier
  • 20 ÷ 20000 Hz frequency range
  • Full on-board processing
  • RCF speakers’ presets
  • Proprietary bass enhancer algorithm
  • FiRPHASE linear phase filters
  • Flexible and scalable multi-room architecture
  • Suitable for desktop or rack installation
  • RDNet ready for networked management
  • Remote controls and paging console accessories
DMA 82 is a two channels Class-D matrix amplifier equipped with a powerful DSP platform, allowing managing inputs and outputs in terms of routing and equalization. A complete set of processing functions is available, including presets for RCF speakers, proprietary bass enhancer algorithm, FIR filters, and environmental equalization. Thanks to its extremely compact size, accurate design, and robustness, it is ideal for a wide range of business music applications.
SPECIFICATIONS
Amplifier specifications
AMPLIFIER CLASS:
D

NUMBER OF CHANNELS:
2

POWER OUTPUT PER CHANNEL (@ 4 OHM):
80

POWER OUTPUT (BRIDGED @ 4 OHM):
160

POWER OUTPUT (HI-Z):
160

FREQUENCY RESPONSE (-3DB):
20 Hz ÷ 20000 Hz

SIGNAL/NOISE RATE (”A” WEIGHTED):
>93 dB

DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER:
<0.01 %
Input section
BALANCED:
2

GENERAL PURPOSE INPUTS (GPI):
1

LINE CONNECTORS:
JACK, Picoflex, RCA

LINE INPUTS:
3

MIC+LINE CONNECTORS:
Euroblock

MIC+LINE INPUTS:
1

VOX: (MIC+LINE):
Yes

VOX: (MIC):
Yes

MONO:
2

PAGING COMMAND:
Contact

PAGING CONNECTORS:
RJ45

PAGING INPUTS:
1

STEREO:
3

TOTAL NUMBER OF INPUTS:
5

UNBALANCED:
3
Output section
SIGNAL OUTPUT NUMBER:
1

SIGNAL OUTPUT CONNECTORS:
RCA

POWER OUTPUT CONNECTORS:
Euroblock
Processing
DSP:
Yes

EQ FILTERS:
Yes

FIR:
Yes

COMPRESSORS:
Yes

TONE CONTROLS:
Yes

HIGH-PASS FILTER:
80 Hz ÷ 200 Hz
Controls
CONFIGURATION:
Front panel, PC Software
Protections
COOLING:
Forced

SHORT CIRCUIT:
Yes

THERMAL:
Yes

DC DELAY:
Yes

FUSES:
Yes

VHF:
Yes
Power requirement
OPERATING VOLTAGE:
90-240 V~ 50/60Hz

POWER CONSUMPTION:
200
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal

COLOR:
Black

RACK MOUNTING:
1/2 19", 1U , Optional rack mounting accessory required
Size
DEPTH:
314 mm / 12.36 inches

HEIGHT:
44 mm / 1.73 inches

WEIGHT:
1.7 kg / 3.75 lbs

WIDTH:
213 mm / 8.39 inches
Shipping informations
PACKAGE DEPTH:
381 mm / 15 inches

PACKAGE HEIGHT:
106 mm / 4.17 inches

PACKAGE WEIGHT:
2.7 kg / 5.95 lbs

PACKAGE WIDTH:
360 mm / 14.17 inches
