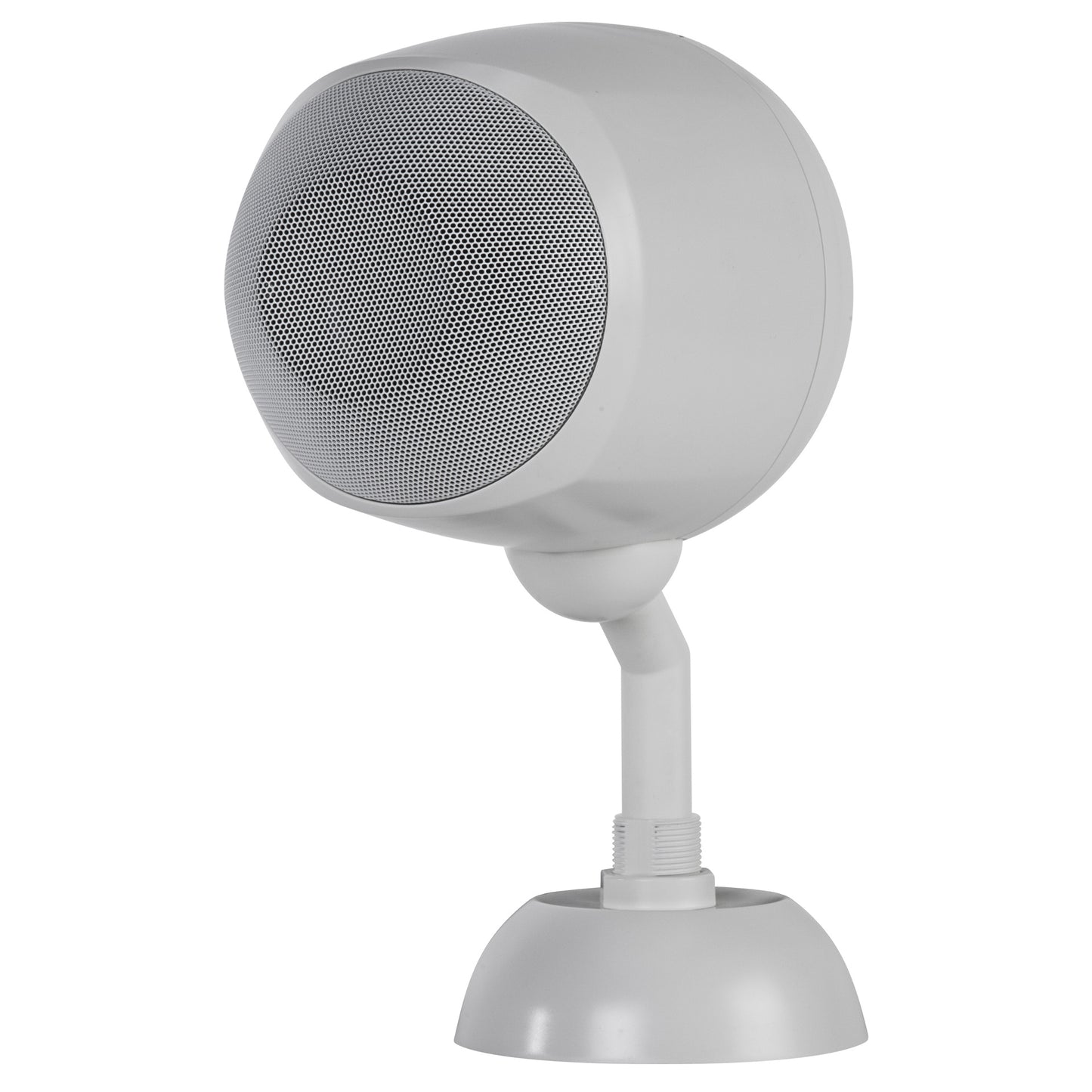

RCF DP-5EN Passive 5" Wall Speaker (70V/IP65)

SKU: DP-5EN
$169.00 inc. VAT
-15% $199.00 $169.00 inc. VAT
DP 5EN
UNIDIRECTIONAL SOUND PROJECTOR
  • 5" FULLRANGE TRANSDUCER.
  • POWER SELECTABLE (100 V): 20 W – 10 W – 5 W – 2.5 W.
  • 88 DB SENSITIVITY.
  • COLOUR WHITE RAL 9016.
  • 5" fullrange transducer.
  • Power selectable (100 V): 20 W – 10 W – 5 W – 2.5 W.
  • 88 dB sensitivity.
  • Colour white RAL 9016.
  • Flameproof ABS body, steel grille.
  • In/out ceramic terminal block.
  • Thermal fuse protection.
  • Protection grade IP65.
DP 5EN is a weatherproof sound projector suitable for all those installations where high intelligibility for alarm messages broadcasting and great sound reproduction quality are required. Thanks to its IP65 protection grade, it can be installed both indoor and outdoor. Moreover, a modern and endearing design makes it the perfect product for environments where projectors are intended also as architectural elements and contribute to improve global aesthetics.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
80 Hz ÷ 20000 Hz

MAX SPL @ 1M:
101 dB

MAX SPL @ 4M:
89 dB

COVERAGE ANGLE:
210°

SYSTEM SENSITIVITY:
88 dB

SYSTEM SENSITIVITY 1W @ 4M:
76 dB
Power section
POWER HANDLING:
20 W RMS

PEAK POWER HANDLING:
80 W PEAK

RECOMMENDED AMPLIFIER:
40 W

PROTECTIONS:
Thermal fuse
Transducers
FULLRANGE:
5.0''
Input/Output section
INPUT CONNECTORS:
Ceramic screw terminals

OUTPUT CONNECTORS:
Ceramic screw terminals

CONSTANT VOLTAGE TRANSFORMER:
100 V

POWER SELECTION 1 (100 V):
20 W - 500 ohm

POWER SELECTION 2 (100 V):
10 W - 1000 ohm

POWER SELECTION 3 (100 V):
5 W - 2000 ohm

POWER SELECTION 4 (100 V):
2.5 W - 4000 ohm
Standard compliance
CPR NUMBER:
0068-CPR-058/2014

IP PROTECTION GRADE:
IP 65

EN54-24 CERTIFIED:
Yes

CE MARKING:
Yes
Physical specifications
COLOR:
White - RAL 9016

HARDWARE:
Wall mount metal plate

GRILLE:
Steel

CABINET/CASE MATERIAL:
ABS
Size
WIDTH:
176 mm / 6.93 inches

DEPTH:
261 mm / 10.28 inches

HEIGHT:
183 mm / 7.2 inches

WEIGHT:
2.61 kg / 5.75 lbs
Shipping informations
PACKAGE WEIGHT:
3.54 kg / 7.8 lbs

PACKAGE DEPTH:
380 mm / 14.96 inches

PACKAGE WIDTH:
400 mm / 15.75 inches

PACKAGE HEIGHT:
230 mm / 9.06 inches
